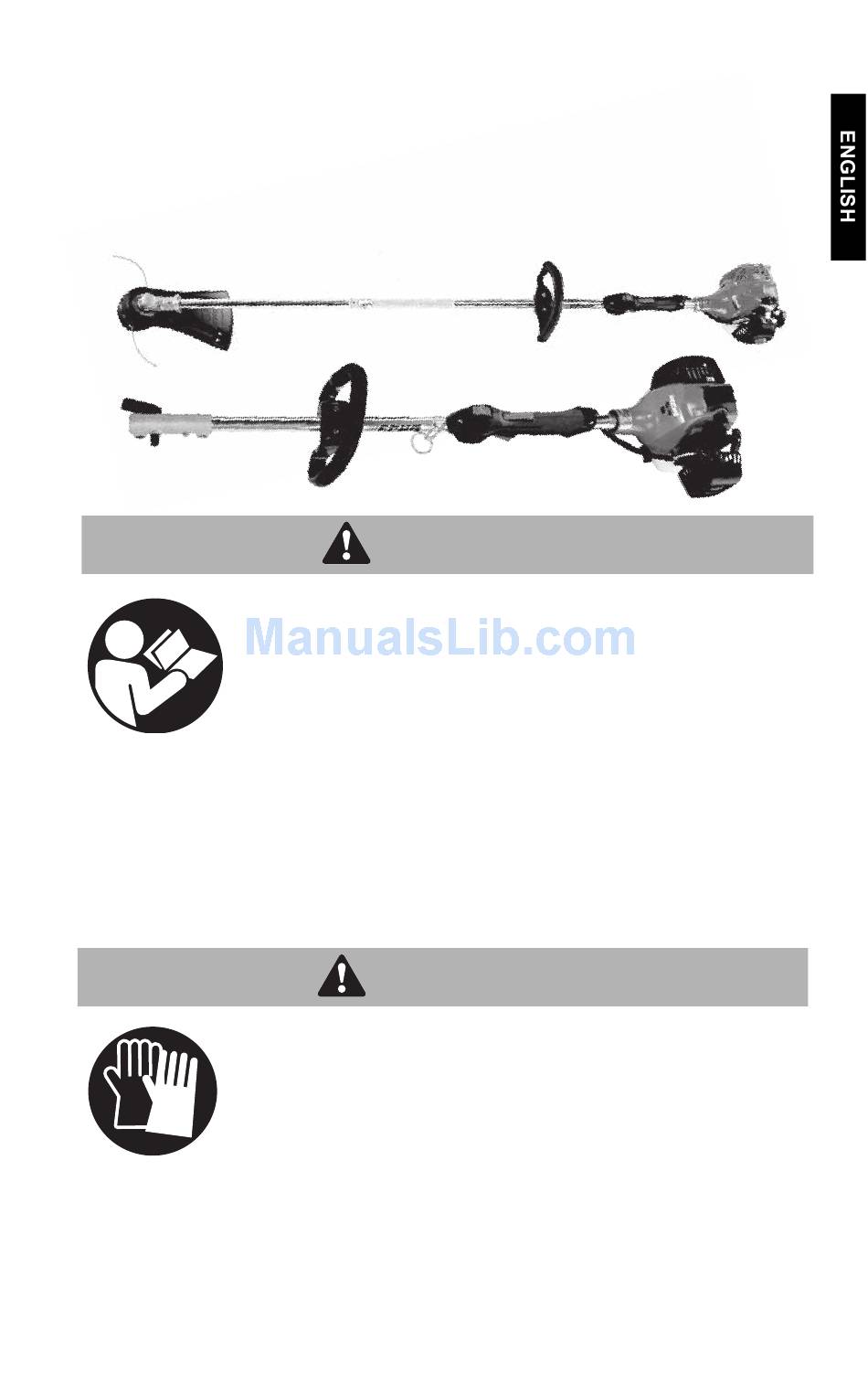

SAFETY MANUAL
For Grass Trimmer, Brushcutter and Edger

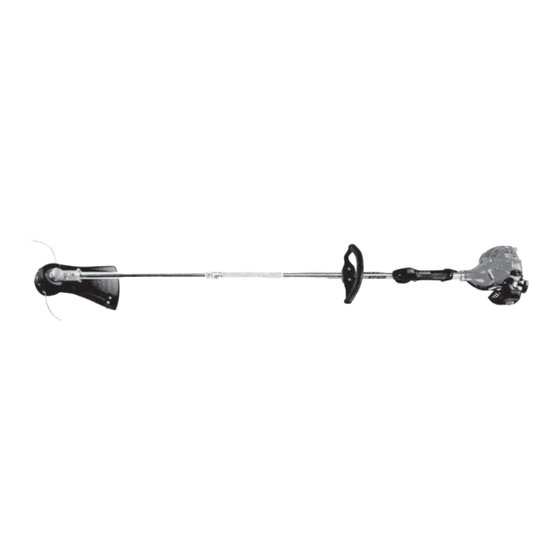

DANGER
Misuse may result in serious or fatal injuries. You
must read, understand, and follow these safety
instructions, and the instructions in the Operator's
Manual, before operating a Model GT Grass Trimmer,
SRM Trimmer-Brushcutter, PAS Pro-Attachment
Series Powerhead, SB Split-Boom Trimmer-Brush-
cutter, or PE Power Edger.
If you operate a model SB Split-Boom or PAS Pro
Attachment Series multi-attachment unit, you must
also read, understand, and follow the instructions in
your PAS Attachment Operator's Manual.
DANGER
Metal blades are very sharp and can cause severe
injuries, even if engine is off and blades are not
moving. Avoid contact with blades. Wear gloves
to protect hands.
X7522340001
2/16
