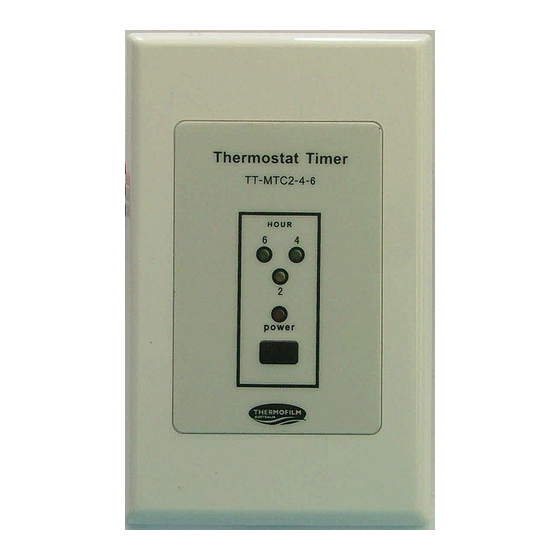

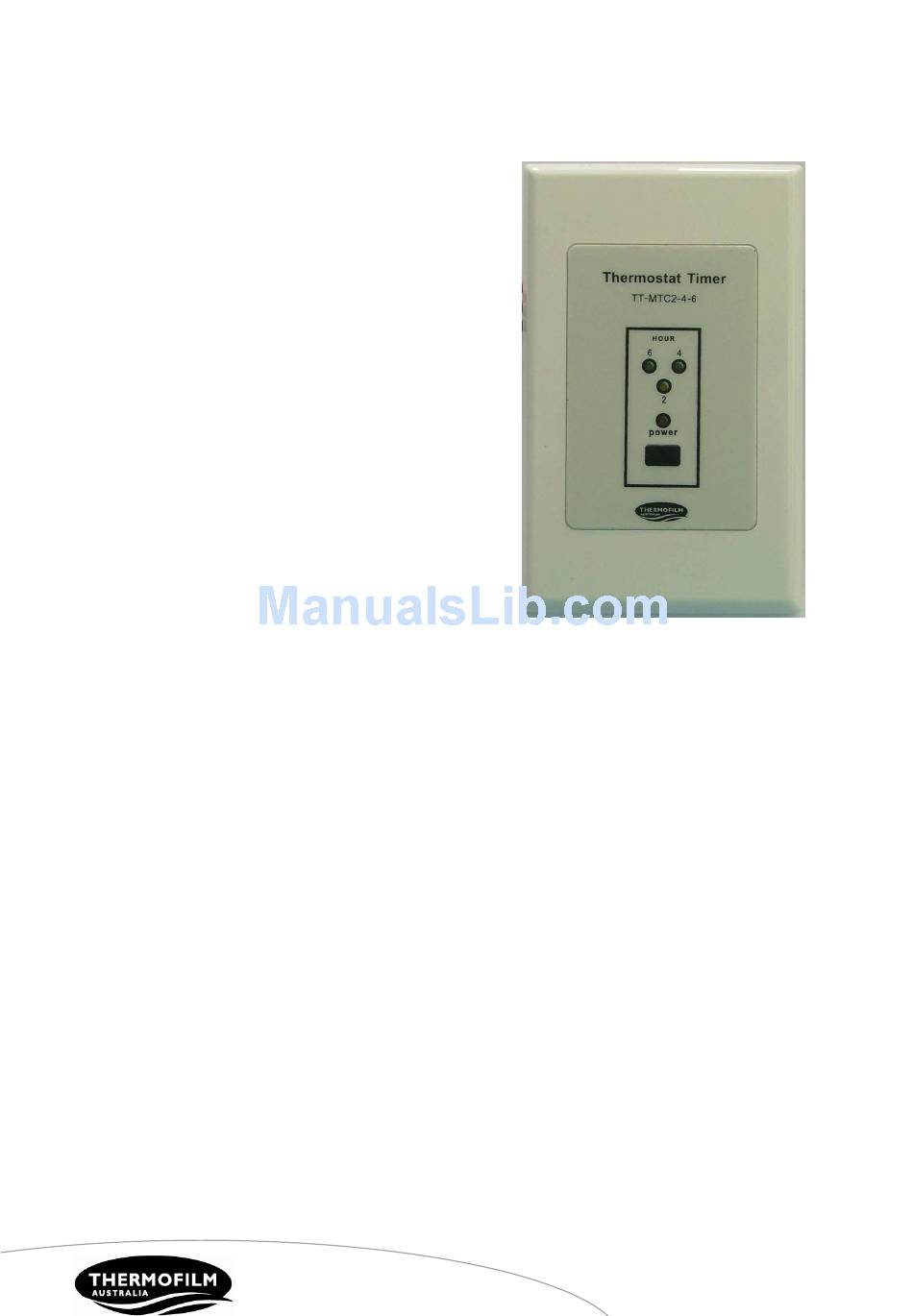

TT-MTC2-4A Electronic Timer/Thermostat
USER INSTRUCTIONS
Model: TT-MTC2-4A
TABLE OF CONTENTS

1. Features

1. Features
The TT-MTC2-4A is an electronic timer-thermostat with preset temperature control, which allows a load to be
switched over a preset period: 2, 4 and 6 hours. The controller senses the ambient temperature in the room
and maintains the room temperature to your desired 'Comfort' setting during a 'timer on' period. The
TT-MCT2-4A also has the added feature of a 'Backup' temperature setting. This allows you to set a level where
if the room temperature drops below the 'Backup' setting the heater will come on and maintain that set
temperature even outside a 'timer on' period. This reduces the heat-up time when the timer is turned on and
offers frost protection as well. You can also use the TT-MTC2-4A as a timer only, this may be required if you
wish to control heaters mounted in an outdoor undercover location.
NB: If rooms are to be unattended for long periods of time (weeks) and you are in a cold area you may wish to
turn off the heaters at the switch board or isolator to prevent unnecessary "backup' operation.
27 Rosalie Street, Springvale VIC 3171
P: +61 (0)3 9562 3455 F: +61 (0)3 9548 3979
sales@thermofilm.com.au
www.thermofilm.com.au

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TT-MTC2-4A and is the answer not in the manual?

Questions and answers

Related Manuals for Thermofilm TT-MTC2-4A

Summary of Contents for Thermofilm TT-MTC2-4A

  • Page 1 ‘timer on’ period. This reduces the heat-up time when the timer is turned on and offers frost protection as well. You can also use the TT-MTC2-4A as a timer only, this may be required if you wish to control heaters mounted in an outdoor undercover location.
  • Page 2 2. Specification Data Model Supply Max. Load Power TT-MTC2-4A 230-240 volt AC 13 Amps (resistive) 3100 Watts 3. Operations Instructions To set 2 hour/4 hour/6 hour mode • Press the On/Off button once and the 2 hour LED light will come on.
  • Page 3 Fig.2 Timer Only (outdoor undercover) • To use the TT-MTC2-4A as a timer only, no thermostat control simply connect a 15K ohm resistor to the green terminals labeled THERMO SENSOR on the back of the unit. Then adjust VR1 to 26°C and VR2 to 5°C.
  • Page 4 Thermofilm, together with proof of purchase (and wherever possible, photos of the installation). • No product or components will be supplied in advance of an examination of the faulty product or components by Thermofilm or an authorised representative of Thermofilm.
