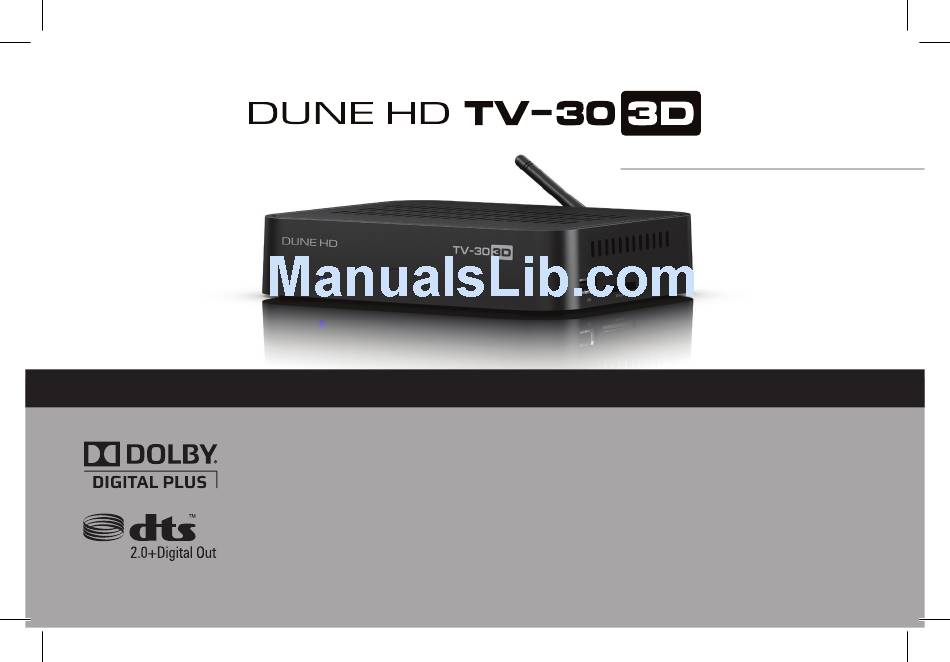

Quick Start Guide
English
Manufactured under license from Dolby Laboratories.
Dolby and the double-D symbol are trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.and
worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered
trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product includes software. © DTS, Inc.
All Rights Reserved
Advertisement
Table of Contents
Related Manuals for Dune HD TV-303D
Summary of Contents for Dune HD TV-303D
-
Page 1: Quick Start Guide
Quick Start Guide English Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories. Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S.and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks &... - Page 2 Table of Contents English Table of Contents English Quick Start Guide • Introduction • Key Features • Extra Functions • Package Contents • Exterior • Remote Control • Getting Started • Quick Setting of Video Output Mode • Connecting USB Drives •...
-
Page 3: Key Features
Dune HD TV-303D Quick Start Guide Introduction Dune HD TV-303D is an all-in-one solution for up to Full HD (1080p) and 3D video playback. Key Features ● The newest Sigma Designs 8672/8673 media processor: enjoy excellent playback and performance of interactive features. -
Page 4: Extra Functions
English Extra Functions ● High-quality music playback: play very high-quality (up to 192 Khz / 24-bit) music files in various formats (FLAC, Monkey’s Audio APE, WAV/PCM, DTS, etc). ● Playlists: build playlists from your folders, use your own playlists, use repeat and shuffle functions. ●... -
Page 5: Package Contents
Dune HD TV-303D Quick Start Guide Package Contents 1. Dune HD TV-303D media player 4. IR extender 8. HDMI cable 2. Remote control (batteries may 5. AV cable (3.5mm minijack to 3xRCA) 9. Ethernet cable not be included) 6. USB 3.0 (Host-Slave) cable 10. -
Page 6: Front View
English Exterior Front view Side view (right) 1. LED indicator 1. USB 2.0 host 2. IR eye 2. SD card slot Rear view Side view (left) 7 8 9 10 11 1. HDD rack 1. USB 3.0 Slave 7. IR extender connector 2. -
Page 7: Remote Control
Dune HD TV-303D Quick Start Guide Remote Control 1. Command indicator — flashes in response to RC button pressing. 2. TV — switch to TV mode. MUTE — turn the sound on/off. MODE — switch the video output mode; control some other player functions. POWER — toggle the standby mode. - Page 8 10. SUBTITLE, ANGLE/ROTATE, AUDIO, REC, DUNE, URL — control the playback and some other player functions. 11. REC — start/stop TV channel recording, — launch Dune HD Portal, URL — open Web Browser with concrete URL NOTES: ● Use alkaline AAA batteries.
-
Page 9: Getting Started
"DUNE HD" logo is shown on the TV. ● If you do not see "DUNE HD" logo on the TV when you switch on the player, it may mean some problem with the connection between the player and the TV or that a wrong video input is chosen in the TV or A/V receiver/switch. -
Page 10: Quick Setting Of Video Output Mode
English Use the RC buttons , "ENTER", "RETURN" to navigate through the player menu. Use the "POP UP MENU" RC button to show the list of available commands. Use the "INFO" RC button to show the information about the selected item. Quick Setting of Video Output Mode The “REC”... -
Page 11: Connecting Usb Drives
Dune HD TV-303D Quick Start Guide Connecting USB Drives To connect a USB drive, ensure you are on the main screen of the player menu and connect the USB drive to an USB port of the player. The player will recognize the USB drive, and will show an item corresponding to the USB drive on the main screen. -
Page 12: Using Usb 3.0 Slave Function
English Using USB 3.0 Slave Function To connect the player with an installed internal HDD via USB 3.0 Slave, connect the USB 3.0 Slave port of the player to the USB host port of the PC. The PC will recognize a new USB device. After finishing working with the player in the PC, ensure the USB device is correctly stopped in the PC («Safely remove hardware»or a similar function) and then disconnect the USB 3.0 Slave port of the player from the USB host port of the PC. -
Page 13: Switching The Player On And Off
Dune HD TV-303D Quick Start Guide Switching the Player On and Off To put the player into the standby mode, press the «POWER» RC button. To exit the standby mode, press this buttons again. Depending on the player settings (see the player setup menu), the «hardware standby» or «software standby» mode may be used. -
Page 14: Updating Your Player And Getting More Information
English Limitations Compatibility of the player with a particular hardware (A/V equipment, network equipment, disk drives, etc) may depend on various factors (particular hardware model, specifics of hardware installation and usage, configuration of the player and the hardware, etc). If the player does not correctly work with a particular hardware, try to adjust the configuration of the player or hardware, try to use the hardware in a different way, or try to use some other hardware. - Page 15 www.Dune-HD.com...
