9. INSTALLATION INSTRUCTION

9. INSTALLATION INSTRUCTION
Step 1: PREPARE CUPBOARD OPENING

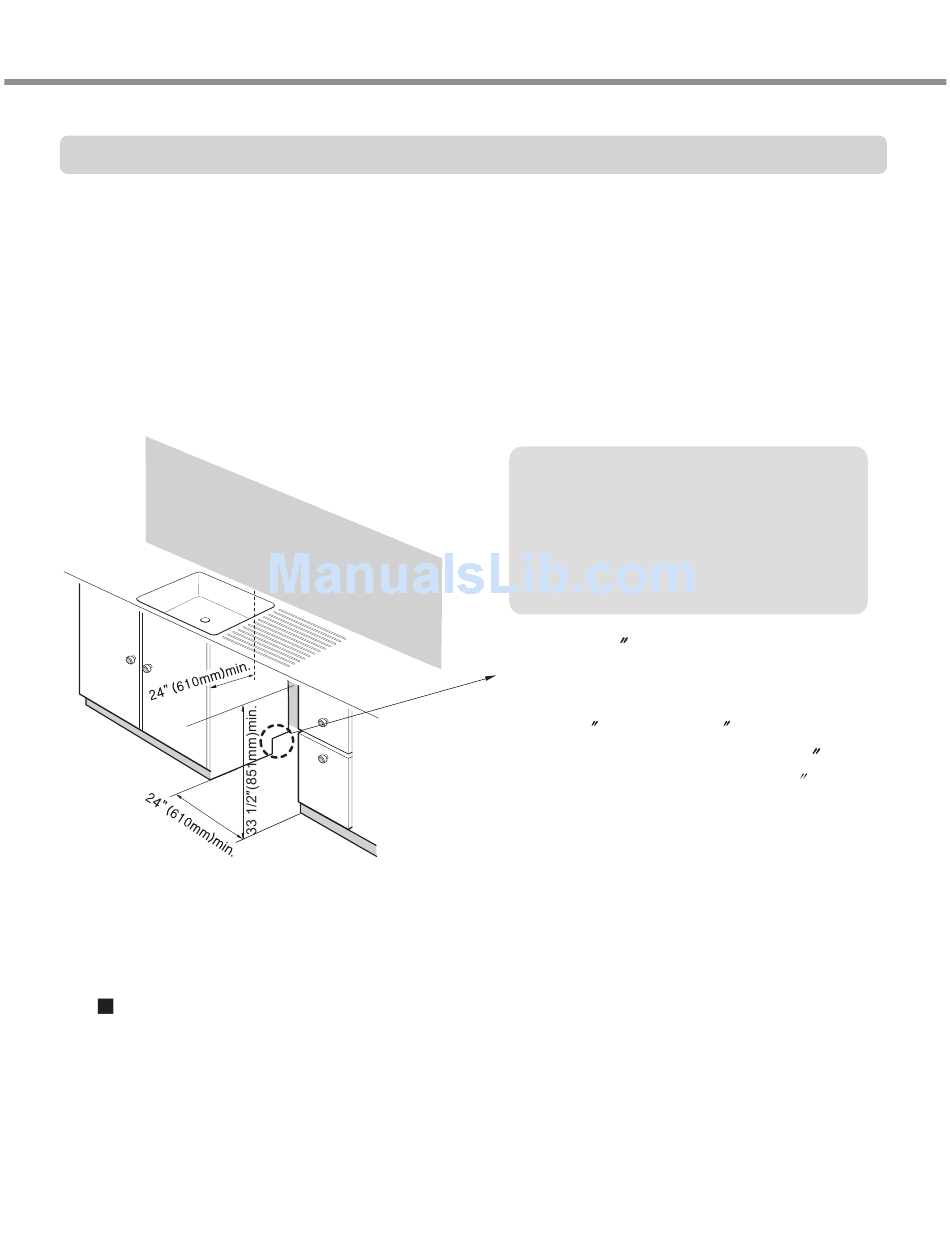

1. This dishwasher is designed to fit a standard dishwasher opening as shown below.
2. Select a location as close to sink as possible for easy connections to water and drain lines.
3. The dishwasher should not be installed more than 10 ft. (3m) from the sink for proper
drainage.
4. If dishwasher is to be installed in a corner, a minimum of 2 in. (50mm) is required between
the dishwasher and an adjacent a wall.
Ensure the floor under the dishwasher is at the same level as the rest of the room to
allow for any service requirements.
If dishwasher will sit directly on
subflooring, subfloor should be
sealed with a waterproof paint or
sealer to prevent damage from
steam.
Drill a 1-1/2 (38mm) dia hole or cut
out for drain hose, inlet hose and
electrical cables on either side.
approx. 4 (100mm, W) X 4 (100mm, H)
These openings must be within 4
from the floor and 1-5/8
(100mm)
from the back wall. If there is
(40mm)
a floor in the cabinet under the sink,
it will also be necessary to drill or cut
through the floor to connect the
water and drain under the sink.
- 28 - - 28 -
- 33 -
For Authorized Service Technician
