Tub Sub Assembly; Foot & Nut; Rear Leg Adjustment System - LG LDS5540ST Service Manual

Nut
Foot
Holder
Leg Adjust
Shaft Assembly Shaft Assembly

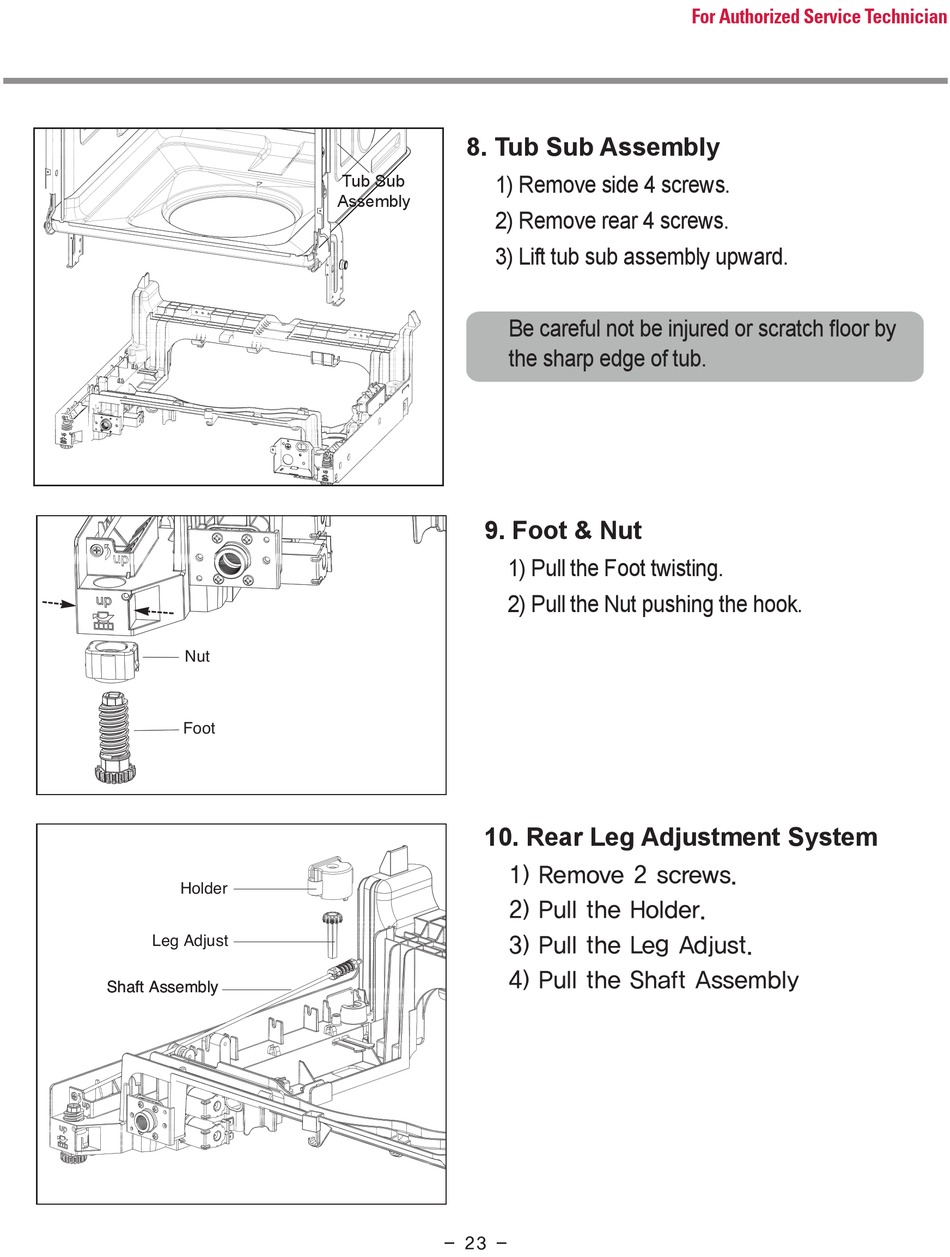

8. Tub Sub Assembly

1) Remove side 4 screws.
Tub Sub
Assembly
2) Remove rear 4 screws.
3) Lift tub sub assembly upward.
Be careful not be injured or scratch floor by
the sharp edge of tub.
9. Foot & Nut
7) Foot & Nut
1) Pull the Foot twisting.
2) Pull the Nut pushing the hook.

10. Rear Leg Adjustment System

8) Rear Leg Adjustment System
1) Remove 2 screws.
2) Pull the Holder.
3) Pull the Leg Adjust.
4) Pull the Shaft Assembly
- 23 -
For Authorized Service Technician
Pull the Foot twisting
Pull the Nut pushing the hook.
Remove 2 screws.
Pull the Holder.
Pull the Leg Adjust.
Pull the Shaft Assembly .
