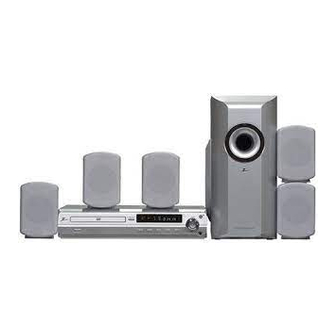

- Page 1 Installation and Operating Guide | Warranty Model Number | DVT412 | DVD/CD Player AM-FM Receiver with Speaker System (Speakers: LHS-D6245T/LHS-D6245W) © Copyright 2004, LG Electronics U.S.A., Inc.
-
Page 2: Safety Precautions
SERIAL NUMBER: The serial number is found on the back of this unit. This number is only used on this unit. You should record the serial number below and retain this guide as a permanent record of your purchase. Model No. DVT412 Serial No. -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS CAUTION: PLEASE READ AND OBSERVE ALL WARNINGS AND INSTRUCTIONS IN THIS OWNER’S MANU- AL AND THOSE MARKED ON THE UNIT. RETAIN THIS MANUAL FOR FUTURE REFERENCE. This set has been designed and manufactured to assure personal safety. Improper use can result in electric shock or fire hazard. -
Page 4: Table Of Contents
LH-D6245A JA1UZZS_ENGLISH Table of Contents Introduction Audio CD and MP3/WMA Disc Operation ..23-24 Playing Audio CD or MP3/WMA Discs ..23 Safety Precautions ......2 Notes on MP3/WMA Recordings . -
Page 5: Overview
Before Use Playable Discs Disc-related terms Title (DVD only) The main film content, accompanying feature content, additional feature content, or music album. (8 cm / 12 cm disc) Each title is assigned a title reference number enabling Audio CD you to locate it easily. (8 cm / 12 cm disc) Chapter (DVD only) In addition, this unit can play a DVD-RW, DVD+RW,... -
Page 6: Precautions
Before Use (Continued) Precautions Storing discs After playing, store the disc in its case. Handling the unit Do not expose the disc to direct sunlight or sources of heat, or leave it in a parked car exposed to direct sun- Shipping the unit light, as there may be a considerable temperature Use the original shipping carton and packing materials... -
Page 7: Indicators
Front Panel Controls/ Display Window Indicators STANDBY/ON OPEN/CLOSE VOLUME controller FUNCTION/ STANDBY indicator PLAY Lights red when the receiver is in Standby mode (off). DISPLAY Window Remote DISC Tray sensor MONO/STEREO/ PAUSE/STEP MEMORY/STOP PHONES TUNING (DOWN/UP)/ connector SKIP/SCAN Indicates current Indicates current chapter surround mode or track number... -
Page 8: Remote Control Buttons
Remote Control Buttons POWER OPEN/CLOSE (p. 20) FUNCTION SELECTOR You can also select the desired function with the FUNC./PLAY on the front panel. Press and hold down this button about 3 seconds, then press repeatedly to select other function. NUMBER SLEEP (p. -
Page 9: Rear Panel Connections
Rear Panel Connections AUXILIARY INPUT Terminals SPEAKER Terminals MONITOR OUT FM Antenna Terminals Jack S-VIDEO OUT Jack COMPONENT VIDEO OUT S/VIDEO OUT MONITOR OUT PROGRESSIVE SCAN AM Antenna Terminals COMPONENTVIDEO OUT / PROGRESSIVE SCAN (Y Pb Pr) Terminals Connect to a TV with Y Pb Pr inputs. -
Page 10: Connections
Connections TV Connections Make one of the following connections, depending on Progressive Scan (ColorStream ® pro) connection the capabilities of your existing equipment. If your television is a high-definition or “digital ready” television, you may take advantage of the DVD/CD player’s progressive scan output for the highest video resolution possible. -
Page 11: External Equipment Connections
Connections (Continued) External Equipment Connections Rear of VCR (or LD player, etc) VIDEO AUDIO OUTPUT OUTPUT COMPONENT VIDEO OUT S/VIDEO OUT MONITOR OUT PROGRESSIVE SCAN Connection Connect the AUX IN (L/R) jacks on the DVD/CD Press AUX on the remote control to select input to these receiver to the AUDIO OUT (L/R) jacks on the VCR, jacks. -
Page 12: Am-Fm Antenna Connections
Connections AM-FM Antenna Connections Connect the supplied FM/AM antennas for listening to the radio. Connect the AM loop antenna to the AM antenna terminals. Connect he FM wire antenna to the FM antenna terminals. FM Wire aerial (supplied) AM Loop aerial (supplied) COMPONENT VIDEO OUT S/VIDEO OUT... -
Page 13: Speaker System Connections
Connections (Continued) Speaker System Connections Connect the speakers using the supplied speaker cords. To obtain the best possible surround sound, adjust the speaker parameters (volume, distance, etc.). Front speaker Front speaker Center speaker (Right) (Left) COMPONENT VIDEO OUT S/VIDEO OUT MONITOR OUT PROGRESSIVE SCAN... -
Page 14: Speaker Placement
Connections (Continued) Speaker Placement For a normal set up use 6 speakers (2 front speakers, center speaker, 2 rear speakers and subwoofer). If you want to hear excellent bass sound, DTS digital surround or Dolby Digital surround, you should connect a subwoofer. -
Page 15: Pre-Operation
Pre-Operation Mini Glossary for Audio Stream & Sound Mode Surround mode You can enjoy surround sound simply by selecting one of the pre-programmed sound fields according to the program you want to listen to. Allows you to enjoy 5.1(or 6) discrete channels of high-quality A) Using the SOUND button digital audio from DTS program sources such as discs, DVD and compact discs, etc. -
Page 16: Dvd/Cd Player Overview
Pre-Operation (Continued) DVD/CD player Overview Playback Status Displays Repeat Title This manual gives basic instructions for operating the TITLE DVD/CD player. Some DVDs require specific operation Repeat Chapter CHAPT or allow only limited operation during playback. When Repeat A-B this occurs, the symbol appears on the TV screen, Repeat Off indicating that the operation is not permitted by the... -
Page 17: Initial Setup
Pre-Operation (Continued) Initial Setup Picture TV Aspect You can set your own Personal Preferences on the DVD/CD player. 4:3 Letterbox: Select when a standard 4:3 TV is con- nected. Displays theatrical images with masking bars Initial Setup and Operation Overview above and below the picture. -
Page 18: Speaker Setup
Pre-Operation (Continued) Speaker Setup Auto Play You can set up the DVD/CD player so a DVD disc auto- 5.1 Speaker settings matically starts playing whenever a DVD is inserted. Select speaker settings, including volume balance and If Auto Play mode is set to On, this DVD/CD player will delay time, or test the speaker settings. -
Page 19: Others
Pre-Operation (Continued) Parental Control Country Code Enter the code of a country/area whose standards were Rating used to rate the DVD video disc, referring to the list Movies on DVDs may contain scenes not suitable for (See “Country Code List”, page 31.). children. -
Page 20: Dvd Operation
DVD Operation DVD Playback General Features Playback Setup Unless stated otherwise, all operations described use Turn on the TV and select the video input source con- the remote control. Some features may also be nected to the DVD/CD player. available on the Setup menu. Audio system: Turn on the audio system and select the input source connected to the DVD/CD player. -
Page 21: Still Picture And Frame-By-Frame Playback
DVD Operation (Continued) General Features (continued) Time Search 0:20:09 - :-- :- - Still Picture and Frame-by-Frame playback The Time Search function allows you to start playing at any chosen time on the disc. 1.Press DISPLAY during playback. The on-screen dis- 1. -
Page 22: 3D Surround
DVD Operation (Continued) General Features (continued) 3. Press CLEAR. The Marker number will be erased from the list. 4. Repeat steps 2 and 3 to erase additional Marker 3D Surround 3D SUR BYPASS numbers. This unit can produce a 3D Surround effect, which 5. -
Page 23: Audio Cd And Mp3/Wma Disc Operation
Audio CD and MP3/WMA Disc Operation Playing Audio CD or MP3/WMA Discs Notes on MP3/WMA Recordings About MP3 An MP3 file is audio data compressed by using the The DVD/CD player can play MP3/WMA formatted MPEG1 audio layer-3 file-coding scheme. We call recordings on CD-ROM, CD-R, or CD-RW discs. -
Page 24: Pause
Audio CD and MP3/WMA Disc Operation (Continued) Pause Repeat A-B 1. Press PAUSE/STEP during playback. To repeat a sequence. 2. To return to playback, press PLAY or press 1. During disc playback, press REPEAT A-B at your PAUSE/STEP again. chosen start point. The Repeat icon and “... -
Page 25: Jpeg File Operation
JPEG FIle Operation Changing Files Viewing JPEG Files JPEG Press SKIP/SCAN . or > once while viewing a This DVD/CD player can play discs with JPEG files and picture to advance to the next file or to the previous file. Kodak picture CDs. -
Page 26: Programmed Playback
Programmed Playback Audio CD and MP3/WMA Disc Repeat Programmed Tracks Programmed Playback To repeat the track currently playing, press REPEAT. The Program function enables you to store your favorite The Repeat icon and “TRACK” appear on the menu display. tracks from any disc in the player’s memory. To repeat all tracks on the program list, press REPEAT a second time. -
Page 27: Speaker Setup
Speaker Setup Additional Information Adjust the following settings for the built-in 5.1 channel Last Condition Memory surround decoder. Disc Audio This DVD/CD player memorizes the user settings for Disc Subtitle the last disc that you have viewed. Settings remain in Disc Menu memory even if you remove the disc from the player or Rating... -
Page 28: Radio Operation
Radio Operation Presetting Radio stations Listening to the radio You can preset 50 stations for FM and AM (MW). Before Preset radio stations in the DVD/CD player’s memory tuning, make sure that you have turned down the vol- first (see “Presetting radio stations” on the left). ume. -
Page 29: Other Functions
Other Functions Sleep Timer Setup Dimmer This function changes the brightness of the display win- You can set up the DVD/CD player to turn off automati- dow on the front panel during power-on status. cally at a specified time. Press DIMMER repeatedly. Press SLEEP to set up a sleep time. -
Page 30: Language Code List
Language Code List Enter the appropriate code number for the initial setup “Disc Audio”, “Disc Subtitle” and/or “Disc Menu” (See page 17). Code Language Code Language Code Language Code Language 6566 Abkhazian 7074 Fiji 7678 Lingala 8373 Singhalese 6565 Afar 7073 Finnish 7684... -
Page 31: Country Code List
Country Code List Enter the appropriate code number for the initial setup “Country Code” (See page 19). Code Country Code Country Code Country Code Country Andorra Eritrea Saint Lucia Seychelles United Arab Emirates Spain Liechtenstein Sudan Afghanistan Ethiopia Sri Lanka Sweden Antigua and Barbuda Finland... -
Page 32: Troubleshooting
Troubleshooting Check the following guide for the possible cause of a problem before contacting service. Cause Possible Solution(s) Symptom No power. • The power cord is disconnected. • Plug the power cord securely into the wall power outlet. • No disc is inserted. •... -
Page 33: Troubleshooting
Troubleshooting (Cont’d) Cause Possible Solution(s) Symptom • The antenna is positioned or connected Radio stations cannot • Connect the antenna securely. poorly. be tuned in. • Adjust the antennas and connect an external antenna if necessary. • The signal strength of the stations is too •... -
Page 34: Specifications
Specification Power supply Refer to main label Power consumption Refer to main label Mass 8.4 lbs External dimensions (W x H x D) 14.1 x 2.9 x 12.3 inches Operating conditions Temperature: 5°C to 35°C, Operation status: Horizontal Operating humidity 5% to 85% Laser Semiconductor laser, wavelength 650 nm... - Page 35 Notes...
- Page 36 LG Electronics, Inc. DVD/CD/Radio Combination Home Theater System DVT412 LIMITED WARRANTY – USA LG will repair or replace your product, at LG’s option, if it proves to be defective in material or workmanship under normal use, during the warranty period ("Warranty Period") listed below, effective from the date ("Date of Purchase") of original purchase of the product.
