Summary of Contents for BHM Medical Contact Mini

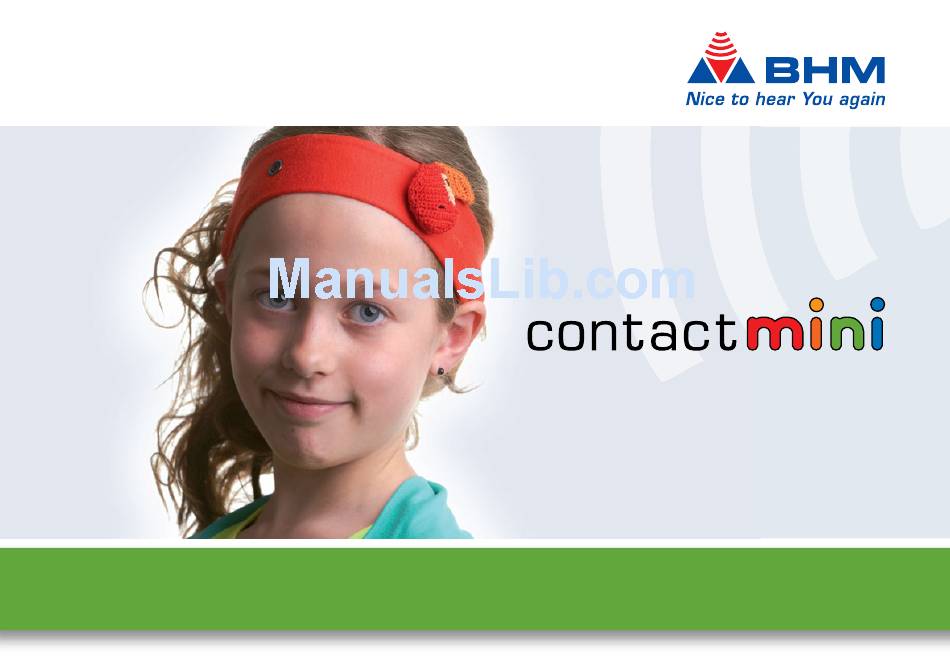

- Page 1 digital bone conducted hearing system q binaural q monaural User Instruction...
- Page 2 Thank you very much for your decision to use a contact mini to another person and/or prevent quality product of BHM-Tech. The digital bone unauthorized use. conducted hearing system contact mini will be produced in Austria according medical device Indended use:...
- Page 3 Description of devices: READ THIS USER INSTRUCTION CAREFULLY BEFORE USING THE DEVICE. IN CASE YOU ARE NOT THE USER OF THE The bone conducted hearing system contact mini in monaural style, consists of one HEARING SYSTEM, PLEASE FORWARD ALL INFORMATION & DETAILS OF THE INSTRU- electronic housing and one conduction MENTS OPERATION TO A PERSON THAT MAY receiver housing.
- Page 4 Parts on the contact mini hearing system Bone conduction vibrator Battery door Battery size 13 Paediatric lock Microphone port Technical Data according to DIN IEC 118-9 Volume control trimmer max. acoust.-mech. Sensitivity (dB) Programming socket – max. Output-Force Level (dBOFL)
- Page 5 & components for the patient should be defined by your acoustician or ENT-doctor. Your acoustician or ENT will advise you about the handling of the contact mini and the accessories (components). TO ENSURE THE SECURITY AND THE FUNC-...
- Page 6 2. Opening of the Take care to insert the battery the correct battery-drawer- Insertion of battery: way (observe the +-mark and the polarity of the battery). Carefully close the battery Release the “red” paediatric lock by pushing the redbutton with the pin-side of the screw- drawer with your finger until it snaps into the driver no.1 and insert or replace the battery.
- Page 7 Battery Warning: The contact mini is equipped with an acoustic battery-warning system. In case of a weak battery, the gain will be reduced automatical- ly and a signal tone will be heard. The battery has to be changed immediately to ensure the proper function of the contact mini.
- Page 8 Select the most pleasant volume by means 4. Mounting of the contact mini onto the wearing systems of the volume control. The volume will be “higher“, when you turn the volume trimmer The electronic housing, as well as the bone clockwise by using the screwdriver.
- Page 9 1. Electronic-housing: the bone conduction receiver is mounted rear inside the wearing system. Improper mounting will disable the function of the contact mini. Mount the electronic part and the bone conduction receiver on the hairband and headband as shown:...
- Page 10 Bending of the hairband: To optimize the fi tting of the wearing system hairband, we recommend you to adjust the hairband by bending, using the following procedure: Follow this procedure as shown step by step. Attention: Risk of burning: Please keep children away from the area whilst following this procedure! 1) Remove the electronic housing, bone...
- Page 11 Fig. 1 Fig. 3 Cold 80°C 4 min. 4 min. 3) Then put the hairband for 4 minutes in cold Fig. 2 water to fi x the bend position of the hair- band. Again, take care that the cableholder made of rubber are not touching the water. 4) Finally, mount the electronic housing, bone conduction receiver housing and cable onto the hairband.
- Page 12 Cleaning of wearing system headband: Make sure that before cleaning the wearing IMPORTANT INFORMATION: system hairband, electronic housing, bone The hearing system contact mini is available conduction receiver housing and the as binaural or monaural hearing system. connection cable are removed. For exact...
- Page 13 Note: Take care that the red colour dot on the Attention: Please always mount color rings as programming cable is on the same position they absorb vibrations. as the yellow colour marking on the 5. Remove of the housing cover programming socket otherwise you can due to programming damage the connection!
- Page 14 If your hearing device doesn’t work: • Please remember that your hearing device automatically switches off if the battery output becomes very low. • Check if the hearing device is switched on and the battery door is completely closed. • Carefully slide the cover into the housing. •...
-
Page 15: Important Information
Incorrect use of your hearing instrument and batteries may be hazardous to your health. Please read the following points carefully. • Keep contact mini and parts of it, which you have taken off, out of reach of other persons or children! •... - Page 16 avoid possible damage to the ear, the is low. This is especially hazardous, if you fitting of the device must be carried out by move in traffic or are otherwise dependent an authorized hearing aid expert. on warning signals. • Never try to recharge a disposable battery! •...
- Page 17 Further important points! and check-ups by your hearing aid expert • Your hearing system, accessories and may prevent the need for repairs. batteries are parts belong to the group of • In the area of interfering with products of modern technology which have electromagnetic interference fields, such to be especially disposed of according to as radio transmitters, it may happen that...
- Page 18 BHM-Tech Produktionsgesellschaft mbH Grafenschachen 242 7423 Grafenschachen, Austria www.bhm-tech.at According to EU guidelines 93/42/EEC 0 2 9 7 Quality management system according to DIN EN ISO 13485 +60°C -20°C Content may be changed without notice in order to improve product performance.
