PCMCIA 1S/2S Adapter

Quick Installation Guide

1. Introduction
The PCMCIA 1S/2S PC Card provides high-speed serial port (RS232C)
into your notebook computer to connect various types of serial devices.
1-1 Key Features and Benefits
l
Fast 16550 UART supports baud rates up to 115.2Kbps
l
Built-in 16-byte FIFO buffer to speed up data transfer
l
Provides one removable cable for device connections
l
Works with Hyper Terminal, Dialup Networking, Bitware and
PC-Anywhere applications
l
Works with various types of RS232C serial devices including modems,
PDAs, label printers, bar code scanners, digital cameras, and more

1-2 System Requirements

l
Notebook computer with an available PCMCIA Type II/III
PC Card slot
l
Windows 98SE/ME/2000/XP

1-3 Package Contents

l
PCMCIA 1S/2S PC card Adapter
l
One removable serial port cable
l
Driver software
l
Quick installation guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PCMCIA 1S and is the answer not in the manual?

Questions and answers

Related Manuals for AvLab PCMCIA 1S

Summary of Contents for AvLab PCMCIA 1S

  • Page 1: Quick Installation Guide

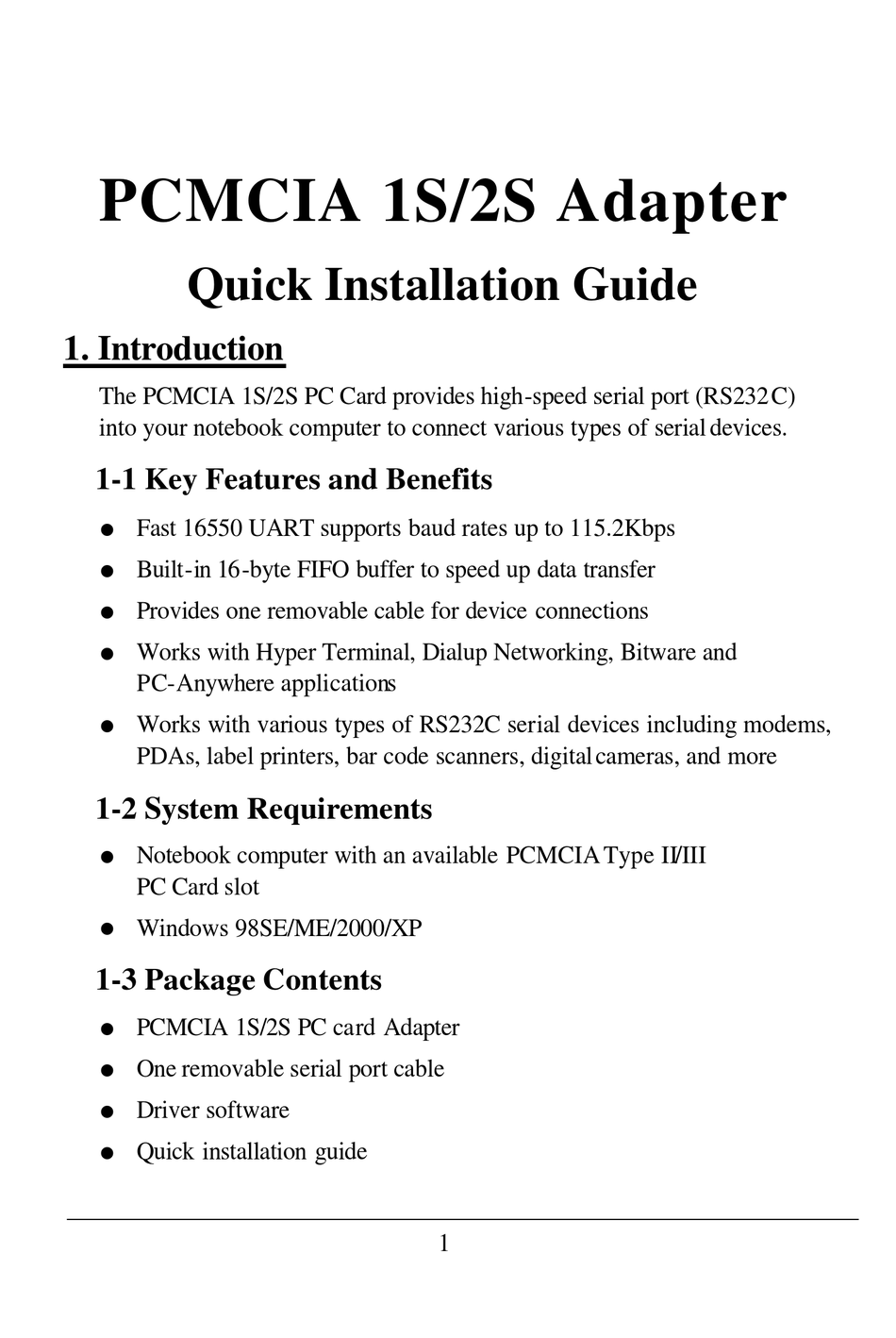

    PCMCIA 1S/2S Adapter Quick Installation Guide 1. Introduction The PCMCIA 1S/2S PC Card provides high-speed serial port (RS232C) into your notebook computer to connect various types of serial devices. 1-1 Key Features and Benefits Fast 16550 UART supports baud rates up to 115.2Kbps...

  • Page 2: Product Images

    1-4 Product images PCMCIA 1S Adapter PCMCIA 2S Adapter 2. Installation Procedures 2-1 Hardware Installation General instructions for installing the PCMCIA PC Card adapter are given since the location of the PCMCIA PC Card Type II/III slot may vary between different portable computers.

  • Page 3: Software Installation

    Please insert the CD when prompted and follow on-screen instructions. Windows 98SE Driver Installation For PCMCIA 1S Adapter: 1. After hardware installation is completed, boot up your system. 2. At the Add New Hardware Wizard, click Next, Next.

  • Page 4: Windows Me Driver Installation

    9. When System Settings Change appears, click Yes to complete driver installation. Windows ME Driver Installation For PCMCIA 1S Adapter: 1. After hardware installation is completed, boot up your system. 2. When Add New Hardware Wizard displays Elan-SERIAL CARD: CF332, insert the driver CD into your CD-ROM drive, then click Next.

  • Page 5: Windows 2000 Driver Installation

    13. Remove the driver CD, then restart your system to complete driver installation. Windows 2000 Driver Installation For PCMCIA 1S Adapter: 1. After hardware installation is completed, boot up your system. 2. At the Found New Hardware Wizard, click Next.

  • Page 6: Windows Xp Driver Installation

    12. Remove the driver CD and restart your system to complete driver installation. Windows XP Driver Installation For PCMCIA 1S Adapter: 1. After hardware installation is completed, boot up your system. 2. At the Found New Hardware Wizard, select No, not this time, then click Next.
  • Page 7 3. Changing the COM Port Assignment Under Windows 2000/XP For PCMCIA 1S Adapter: 1. Right click My Computer. Click Manage, then click Device Manager. 2. Double click Ports (Com & LPT). Click COM CARD, then click Properties.

  • Page 8: Under Windows 98Se/Me

    For PCMCIA 2S Adapter: 1. Right click My Computer. Click Manage, then click Device Manager. 2. Double click Ports (Com & LPT). Click … CF332 Com Port, then click Properties 3. Click Port Settings, then Advanced. 4. Click the COM Port Number drop down box, scrolls to an available COM port settings, then select it.

This manual is also suitable for:

Pcmcia 2s

Table of Contents
