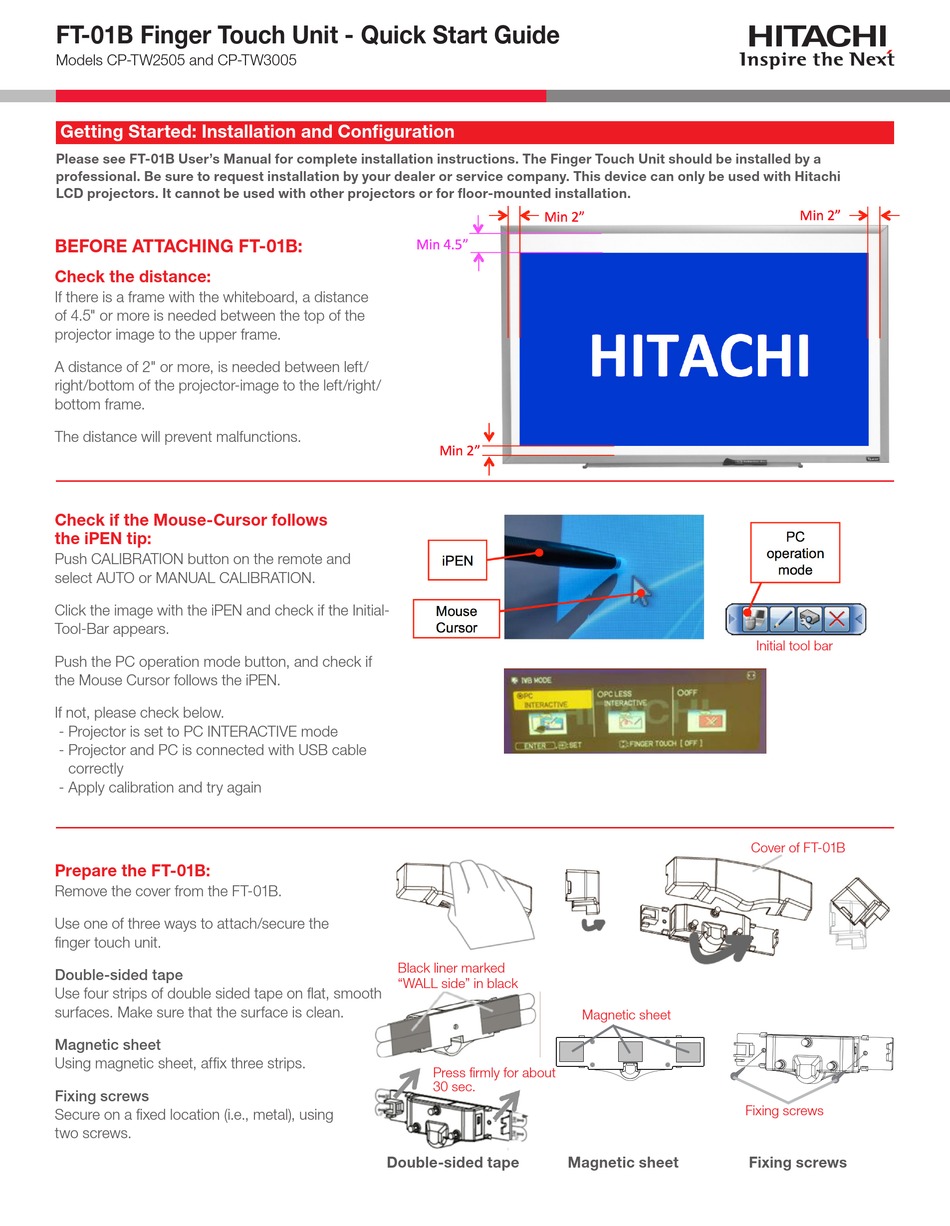

FT-01B Finger Touch Unit - Quick Start Guide
Models CP-TW2505 and CP-TW3005
Getting Started: Installation and Configuration
Please see FT-01B User's Manual for complete installation instructions. The Finger Touch Unit should be installed by a
professional. Be sure to request installation by your dealer or service company. This device can only be used with Hitachi
LCD projectors. It cannot be used with other projectors or for floor-mounted installation.
BEFORE ATTACHING FT-01B:
Check the distance:
If there is a frame with the whiteboard, a distance
of 4.5" or more is needed between the top of the
projector image to the upper frame.
A distance of 2" or more, is needed between left/
right/bottom of the projector-image to the left/right/
bottom frame.
The distance will prevent malfunctions.
Check if the Mouse-Cursor follows
the iPEN tip:
Push CALIBRATION button on the remote and
select AUTO or MANUAL CALIBRATION.
Click the image with the iPEN and check if the Initial-
Tool-Bar appears.
Push the PC operation mode button, and check if
the Mouse Cursor follows the iPEN.
If not, please check below.
- Projector is set to PC INTERACTIVE mode
- Projector and PC is connected with USB cable
correctly
- Apply calibration and try again
Prepare the FT-01B:
Remove the cover from the FT-01B.
Use one of three ways to attach/secure the
finger touch unit.
Double-sided tape
Use four strips of double sided tape on flat, smooth
surfaces. Make sure that the surface is clean.
Magnetic sheet
Using magnetic sheet, affix three strips.
Fixing screws
Secure on a fixed location (i.e., metal), using
two screws.
Black liner marked
"WALL side" in black
Press firmly for about
30 sec.
Double-sided tape
Magnetic sheet
Magnetic sheet (B)
Fixing screws
Magnetic sheet
Initial tool bar
Cover of FT-01B
Fixing screws (C)
Fixing screws
