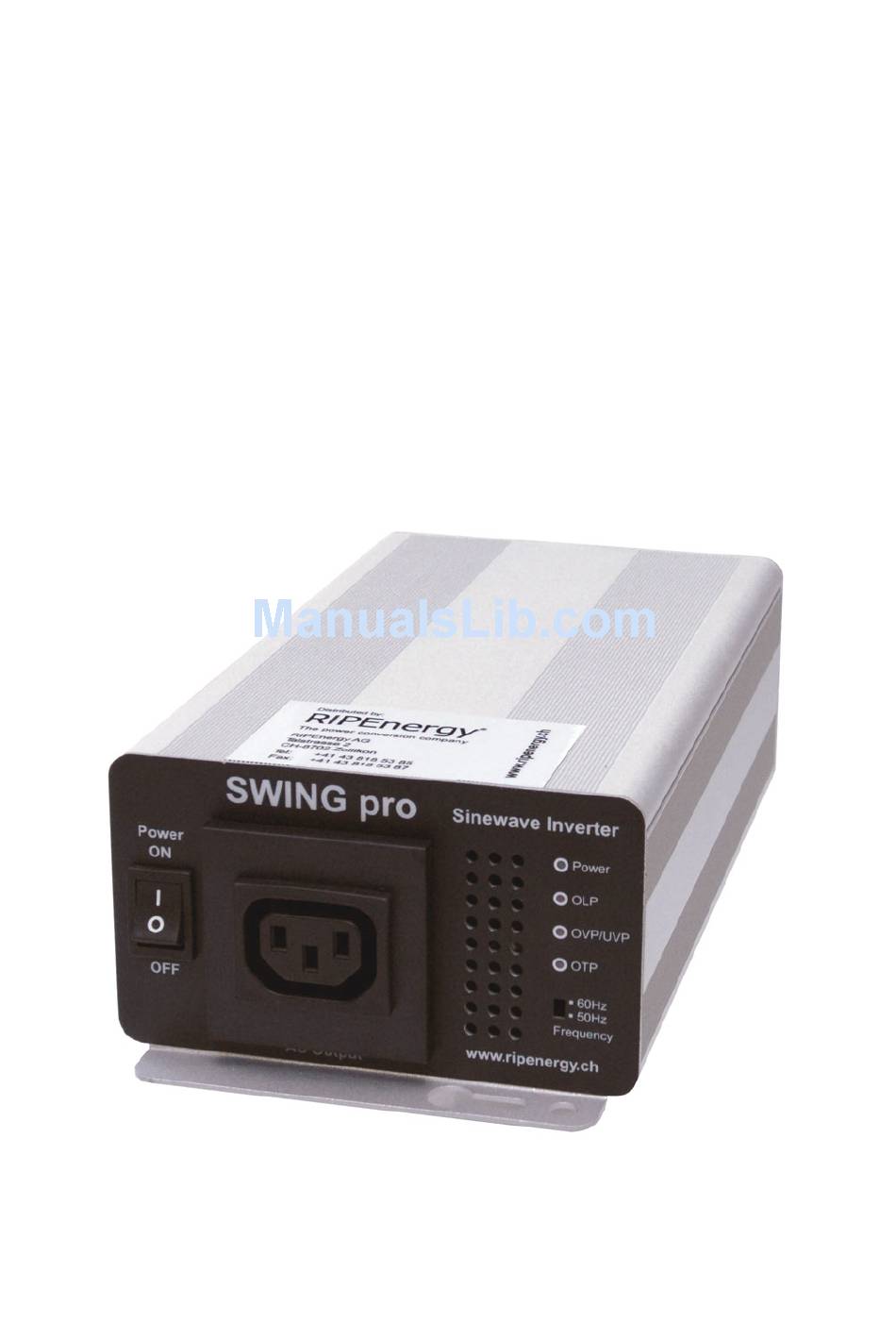

- Page 1 Sinewave Inverters SWING pro 200VA and 350VA User’s manual...
-
Page 2: Warranty
Should work take place, which is not in accordance with guidelines, local rules, instruction’s or specification’s, damage may occur. All of these matters will lead to loss of war- ranty. RIPEnergy AG can not accept any liability for damages or costs arising due to the use of these inverters. -
Page 3: Table Of Contents
Contents Warranty ............................. 2 Distributor’s address ........................2 Retail dealer’s address / Date of purchase................. 2 General Information ........................4 Use of this manual ........................4 Limitation of liability........................4 Warranty specifications (short form) ................... 5 Unpacking ........................... 5 Environmental protection ......................5 Description of the inverter...................... -
Page 4: General Information
General Information Thank you for choosing a product supplied by RIPEnergy AG. The product you have bought is manu- factured to meet the highest quality standards. Our manufacturers have a very long experience in manufacturing of high end electronic equipment. -
Page 5: Warranty Specifications (Short Form)
(see also instructions on item 17). RIPEnergy AG is not paying for costs arising for transport of the unit or damage that arises during the time the unit is unserviceable. The general terms of delivery and terms of sale of RIPEnergy AG are valid. -
Page 6: Block Diagram
Voltage for an extended period of time. The inverter may only be opened by skilled and authorized personnel. Modifications or breaking the warranty label without a written permission from RIPEnergy AG means that warranty is lost immediately! The inverter contains components which can produce arks and sparks. To prevent fire or explosion, do not install or operate in compartments containing batteries or flammable materials. -
Page 7: Working With Batteries
12.2 Working with batteries Using batteries in a wrong way may result in danger for personnel, animals or the environment. Check information from battery manufacturer for safe installation and operation. If battery acid contacts skin or clothing, wash immediately with soap and water. If acid contacts eyes, immediately flush with running cold water for at least 20 minutes and get medical attention as soon as possible. -
Page 8: Dc-Wiring
13.3 DC-Wiring Position of the switch on the front panel must be OFF. A high power fuse must be installed direct to the battery to protect the DC-Wiring (not for Swing pro 200-12-230). DC – current according to the datasheet. Not installing a fuse may result in melting or even burning DC-Cables in case of excessive overload or failure of the inverter. -
Page 9: Grounding
13.5 Grounding The earth wire protection is only possible if the inverter enclosure is also connected to earth. Use a . 8-10mm2 cable (AWG 8) and connect it to the earth terminal of the inverter. This is also important for lighting protection. -
Page 10: Operation
15 Operation The Inverter is controlled by a single switch located on the front panel of the inverter. Engaging Switch to “ON-Position“. The green Power LED will illuminate and you will hear three beep. The Inverter is ready to use. Power down Switch to „OFF-Position“. -
Page 11: Technical Data
18 Technical data 200VA 350VA Manual Swing pro.doc 11/12 Version 2... -
Page 12: Trouble Shooting
To reduce time and save money, contact the consignee how to declare the delivery. Arising costs for customs have to be paid by the sender. 7. Transport costs to send the unit back to RIPEnergy AG are not covered from Warranty. Manual Swing pro.doc...
