INTRODUCTION
The StarLink
SLe-GSM and SLe-GSM-3/4G alarm cap-
ture communicators are fully supervised, wireless digital
two-way subscriber units supported by an extensive na-
tionwide wireless network:
• SLe-GSM - 2G Network Compatible
• SLe-GSM-3/4G - 2G, 3G and 4G Network Compatible
Both models are compatible with virtually any alarm con-
trol panel and are easy to install and test. Either model
can function as a backup to existing telephone lines, or as
a primary communicator when telephone lines are absent
and when connected directly to the control panel Telco
terminals. When used as a backup communicator, both
GSM units will automatically switch the communication
channel from the telephone line to the network when tele-
phone line trouble is detected. Enclosure tamper protec-
tion is also provided for both models.
Note: In this manual, "SLe-GSM" refers to both models
unless otherwise stated.
The SLe-GSM and SLe-GSM-3/4G use proprietary data-
capture technology that captures the alarm report from the
control panel and transmits the alarm signals to the SLe
Control Center; the alarm signals are then forwarded to
ANY Central Station via standard CS receiver formats 4/2
and Contact ID. In addition, the SLe Control Center gen-
erates and reports a Supervisory signal in the event that
the network does not receive the expected supervisory
test signal from the wireless communicator during a pre-
scheduled period.
The GSM alarm signals are transmitted on the RF data-
only portion of the GSM digital network, providing a fast,
dependable communication path to the central station.
e
SL
-GSM-3/4G
e
SL
-GSM
Control
Panel
(1)
(5)
CENTRAL
STATION
StarLink
SLe-GSM and SLe-GSM-3/4G Series GSM Communicators Installation Instructions
StarLink
Series GSM Communicators
INSTALLATION INSTRUCTIONS
© NAPCO 2013
(
(
(
(
(
(
)
(
)
(
)
(
)
(
)
(2)
(3)
Network
Operator
(4)
e
SL
Control Center
SLe-GSM and SLe-GSM-3/4G
GSM RADIO REPORTING PATH

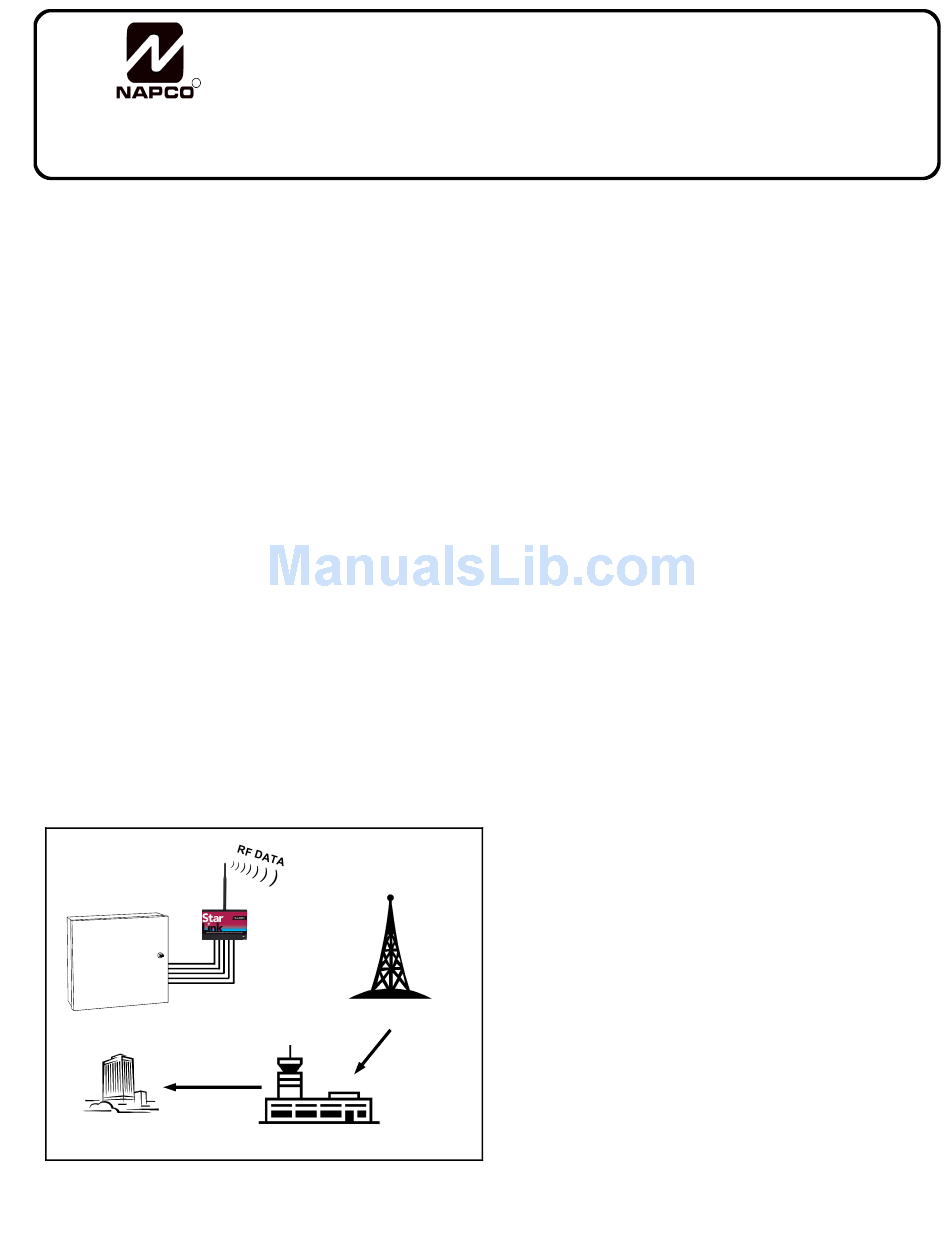

The above diagram shows the transmission path of a sig-
nal from the GSM to the central station.
1. Signal from a Control Panel.
2. SLe-GSM (or SLe-GSM-3/4G) receives the signal
transmission (from the TIP an RING wires); sends RF
signal through the GPRS network operator.
3. Network Operator, part of the vendor system, a sec-
tion of the cellular spectrum.
4. SLe Control Center, receives and routes data.
5. Central Station.

ORDERING INFORMATION

SLE-GSM - 2G Network Compatible GSM alarm capture
Communicator, SIM card included.
SLE-GSM-3/4G - 2G, 3G and 4G Network Compatible
GSM alarm capture Communicator, SIM card included.
SLE-SMTCHG - Optional, Smart Charge Module.
quired for installations where the control panel cannot pro-
vide the 65mA of Auxiliary power required to operate the
SLe-GSM radio. Allows use of standard 4AH / 12V re-
chargeable battery to provide radio standby power. See
installation instructions WI1946.
SLE-DLEXT - Optional, for up/downloading, extends dis-
tance from radio to panel, from 10 feet, up to 100 feet.
See installation instructions WI1950.
SLE-DLCBL - Download Cable, 6 feet.
SLE-ATT/4 - Kit of four (4) AT&T
SIM (Subscriber Identity Module) cards for installations in
areas without or with insufficient T-Mobile™ coverage.
SLE-ANTEXT - Extended antenna with 15 feet of cable.

SPECIFICATIONS

Electrical Ratings for +12V
)
)
)
)
)
Input Voltage: 15-10.6VDC
Input Current: 65mA with peak RF transmission current of
400mA
Electrical Ratings for the IN 1 Burg/Fire Input:
Input Voltage: 15-9VDC
Electrical Ratings for IN 2 and IN 3:
Maximum Loop Voltage: 15VDC
Maximum Loop Current: 1.2mA
End of Line Resistor (EOLR) Value: 10K
Electrical Ratings for 3 PGM Outputs:
Open Collector Outputs: Maximum Voltage 3V when ac-
tive; 15V maximum when not active
Maximum PGM Sink Current: 50mA
Physical
Dimensions without Antenna (WxDxH):
1.2" (12 x 17.8 x 3 cm)
WI1936B 02/13
Re-
network compatible
4.8" x 7" x
1
