Shopsmith MARK V Model 520 Summary Manual page 10

Summary Manual
4. When the carriage lock handle locks into the
horizontal position and the carriage no longer
moves when the handle is in the horizontal
position, tighten the nut a final 1/4 turn.
WARNING
The carriage lock handle MUST lock into the
horizontal position, otherwise the carriage lock
may vibrate loose.

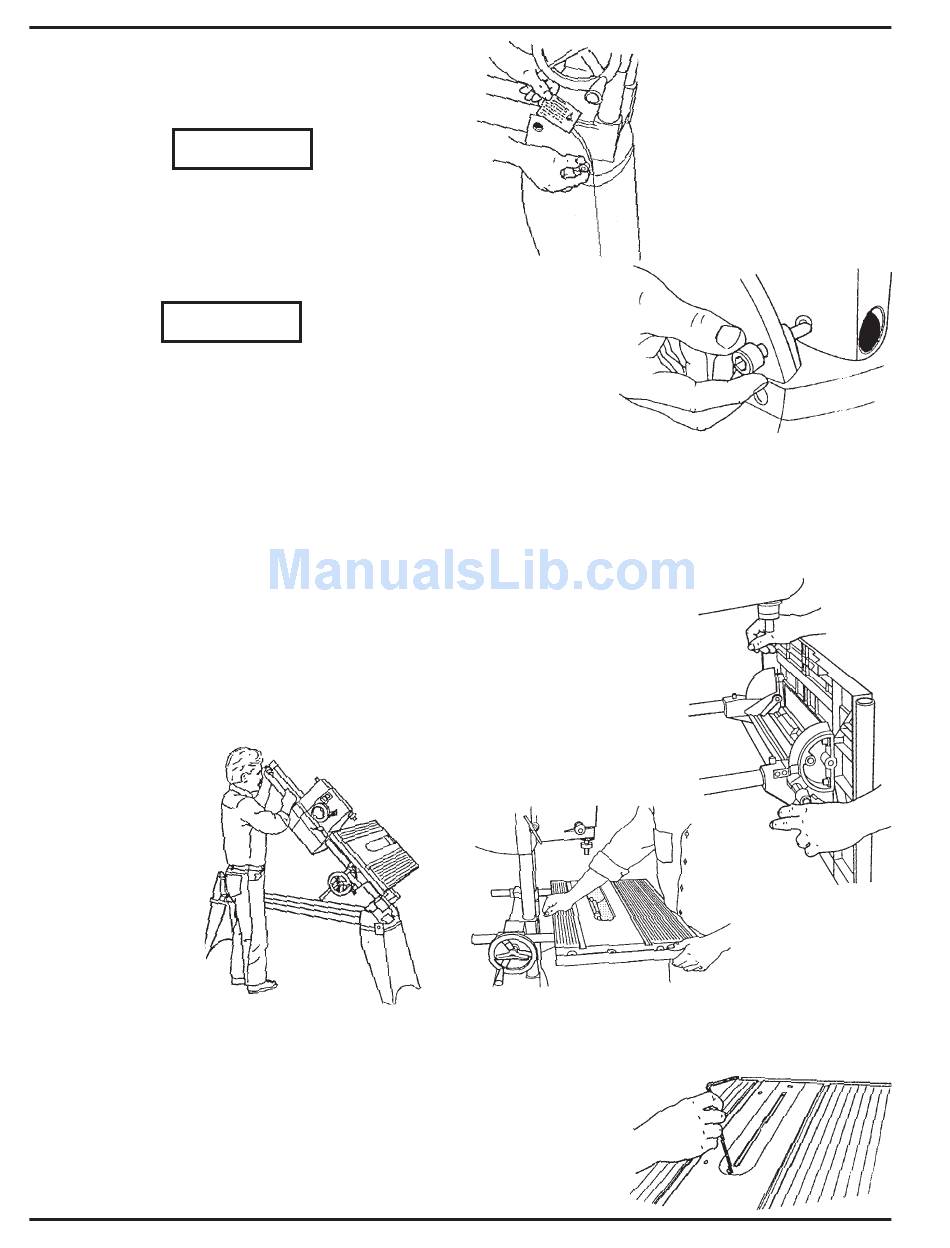

SET THE WORKTABLE'S 90° LEFT STOP
WARNING
Always make sure the Mark V headstock and
carriage are locked and all casters are raised off
the floor before lifting the Mark V into the vertical
drill press position.
5. Unlock the carriage and headstock. Move the
headstock to the middle of the way tubes.
Then move the carriage between the head-
stock and base mount (right side).
6. Tighten the headstock and carriage locks. Place
the Mark V in the vertical position by loosen-
ing the headrest handle, firmly grasping the
way tubes near the headrest end, and lifting
the tubes into the 90° position, as demon-
strated in Figure B-46.
Figure B-46
7. See Figure B-47. Use your fingers to screw in
the base lock. Note the base lock is slightly
off center to the countersink found in the
bench base, as shown in Figure B-48. This
offset allows the base lock to more firmly
hold the base in place.
SM - 10
Figure B-48
8. Move the worktable into the 90° position by
loosening the table tilt lock, as seen in Figure
B-49, then putting the worktable in the hori-
zontal 90° position, as shown in Figure B-50.
Retighten the table tilt lock only enough to
allow movement with firm pressure.
Figure B-49
9. Use a 5/32" Allen wrench to remove the table
insert, as demonstrated in Figure B-51.
Figure B-51
Mark V Model 520
Figure B-47
Figure B-50
