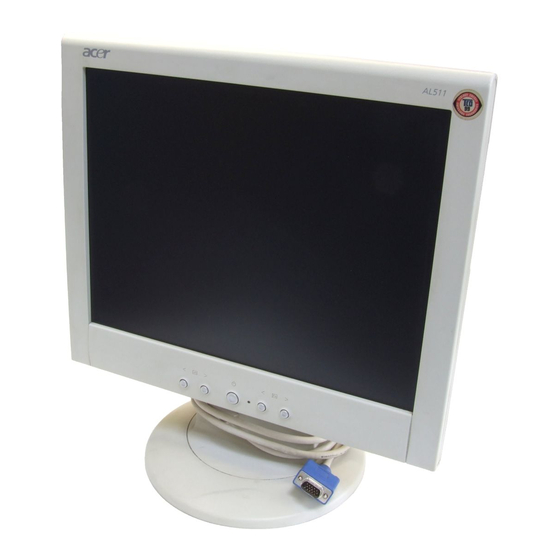

Acer model User Manual

Al 511 user manual.doc
Hide thumbs

Advertisement

Quick Links

Table of Contents

Preface ........................................................................................................ 2
Chapter 1 Installation................................................................................ 4
Unpacking .....................................................................................................................................4
Connecting the LCD Monitor and Base...................................................................................4
Viewing Angle Adjustment ........................................................................................................4
Detaching LCD Monitor from Its Stand....................................................................................5
Interface for Arm Applications ..................................................................................................5
Connecting the Display to your Computer..............................................................................5
Connecting the AC Power..........................................................................................................7
Setting Up the LCD Monitor......................................................................................................7
Power Management System.......................................................................................................7
Chapter 2 Display Controls....................................................................... 8
User Controls ................................................................................................................................8
Adjusting the Monitor's Display...............................................................................................8
Function Description.................................................................................................................10
Chapter 3 Technical Information ........................................................... 12
Specifications..............................................................................................................................12
Standard Timing Table ..............................................................................................................15
Troubleshooting.........................................................................................................................17

Advertisement

loading

  Related Manuals for Acer model

  Summary of Contents for Acer model

  • Page 1: Table Of Contents

    Table of Contents Preface ... 2 Chapter 1 Installation... 4 Unpacking ...4 Connecting the LCD Monitor and Base...4 Viewing Angle Adjustment ...4 Detaching LCD Monitor from Its Stand...5 Interface for Arm Applications ...5 Connecting the Display to your Computer...5 Connecting the AC Power...7 Setting Up the LCD Monitor...7 Power Management System...7 Chapter 2 Display Controls...
  • Page 2: Preface

    Preface This manual is designed to assist users in setting up and using the LCD Monitor. Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. This document contains proprietary information protected by copyright.
  • Page 3: Important Safety Instructions

    This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numérique de la classe B repecte toutes les exigences du Règlement sur le matériel brouilleur du Canada. Important Safety Instructions Please read the following instructions carefully. This manual should be retained for future use. To clean LCD Monitor screen;...
  • Page 4: Chapter 1 Installation

    Chapter 1 Installation Unpacking Before unpacking the LCD Monitor, prepare a suitable workspace for your Monitor and computer. You need a stable and clean surface near a wall power outlet. Make sure that LCD Monitor has enough space around it for sufficient airflow. Though the LCD Monitor uses very little power, some ventilation is needed to ensure that the Monitor does not become too hot.
  • Page 5: Detaching Lcd Monitor From Its Stand

    Detaching LCD Monitor from Its Stand 1. Unscrew screws of the hinge bracket 2. Remove the stand from LCD monitor (See fig. 1-3) Interface for Arm Applications Before installing to mounting device, please refer to Fig.1-3. The rear of this LCD display has four integrated 4 mm, 0.7 pitches threaded nuts, as well as four 5 mm access holes in the plastic covering as illustrated in Figure 1-4.
  • Page 6 used.
  • Page 7: Connecting The Ac Power

    Connecting the AC Power 1. Connect the power cord to the AC adapter. (See Fig. 1-6) 2. Connect the AC adapter's DC output connector to the DC Power Jack of the monitor. 3. Connect the power cord to an AC power source.
  • Page 8: Chapter 2 Display Controls

    Chapter 2 Display Controls User Controls A brief description and the location of all LCD Monitor function controls and indicators: DC Power Switch Press the power switch to switch the monitor ON/OFF. LED lights Green color --- Power is ON. DC Power-On LED lights Yellow --- Monitor is in "Power Saving Mode".
  • Page 9 all OSD menus in this manual will stay as Ver. 1.00.
  • Page 10: Function Description

    Function Description Icon Function This function increases or decreases the brightness of the image . Brightness This function increases or decreases the difference between the dark Contrast and light color. H-Position This function shifts the entire display image left or right. This function shifts the entire display image up or down.
  • Page 11 Three colors (Red, Green, Blue) can be User adjusted from the OSD menu Sets the settings to a by user defined CIE Temperature.
  • Page 12: Chapter 3 Technical Information

    Chapter 3 Technical Information Specifications LCD Panel Hannstar Size 15.0" (38 cm) Display Type Active matrix color TFT LCD Active matrix color TFT LCD Resolution 1024 x 768 Display Dot 1024 x (RGB) x 768 Display Area (mm) 304 x 228 (H x V) Display Color 262K Brightness...
  • Page 13 OSD Format 20 characters x 9 rows...
  • Page 14 Power Management Power Mode Consumption* 25W maximum Standby 5W maximum Suspend 5W maximum 5W maximum DC Power Off 5W maximum Disconnected 5W maximum * Meeting VESA DPMS requirements measured from AC Input end of AC adapter. Sync Input Signal Separate TTL compatible horizontal and vertical synchronization Polarity Positive and negative Plug &...
  • Page 15: Standard Timing Table

    Net Weight Gross Weight Pin Assignment Standard Timing Table If the selected timing is NOT included in table below, this LCD monitor will use the most suitable available timing. V. Freq. H. Freq. Resolution (KHz) (Hz) 640 x 350 31.469 70.087 640 x 400 24.830...
  • Page 16 1024x 768 53.964 66.132 1024x 768 56.476 70.069 1024x 768 60.023 75.029 71.664 COMPAQ-XGA 75.000 VESA-768-70 Hz 78.750 VESA-768-75 Hz...
  • Page 17: Troubleshooting

    Troubleshooting This LCD Monitor has pre-adjusted using factory standard VGA timings. Due to the output timing differences among various VGA cards in the market, users may initially experience an unstable or unclear display whenever a new display mode or new VGA card is selected. Attention This LCD Monitor Supports Multiple VGA Modes.

This manual is also suitable for:

Al511
