MOBILE VIDEO SYSTEM
MODEL: ADV-85DR
Note:
Digital Audio Out-Coaxial
Multi-subtitle Languages Function
Multi-audio Languages Function
Multi-angle Function
Parental Control

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ADV-85DR and is the answer not in the manual?

Questions and answers

Related Manuals for Akai ADV-85DR

Summary of Contents for Akai ADV-85DR

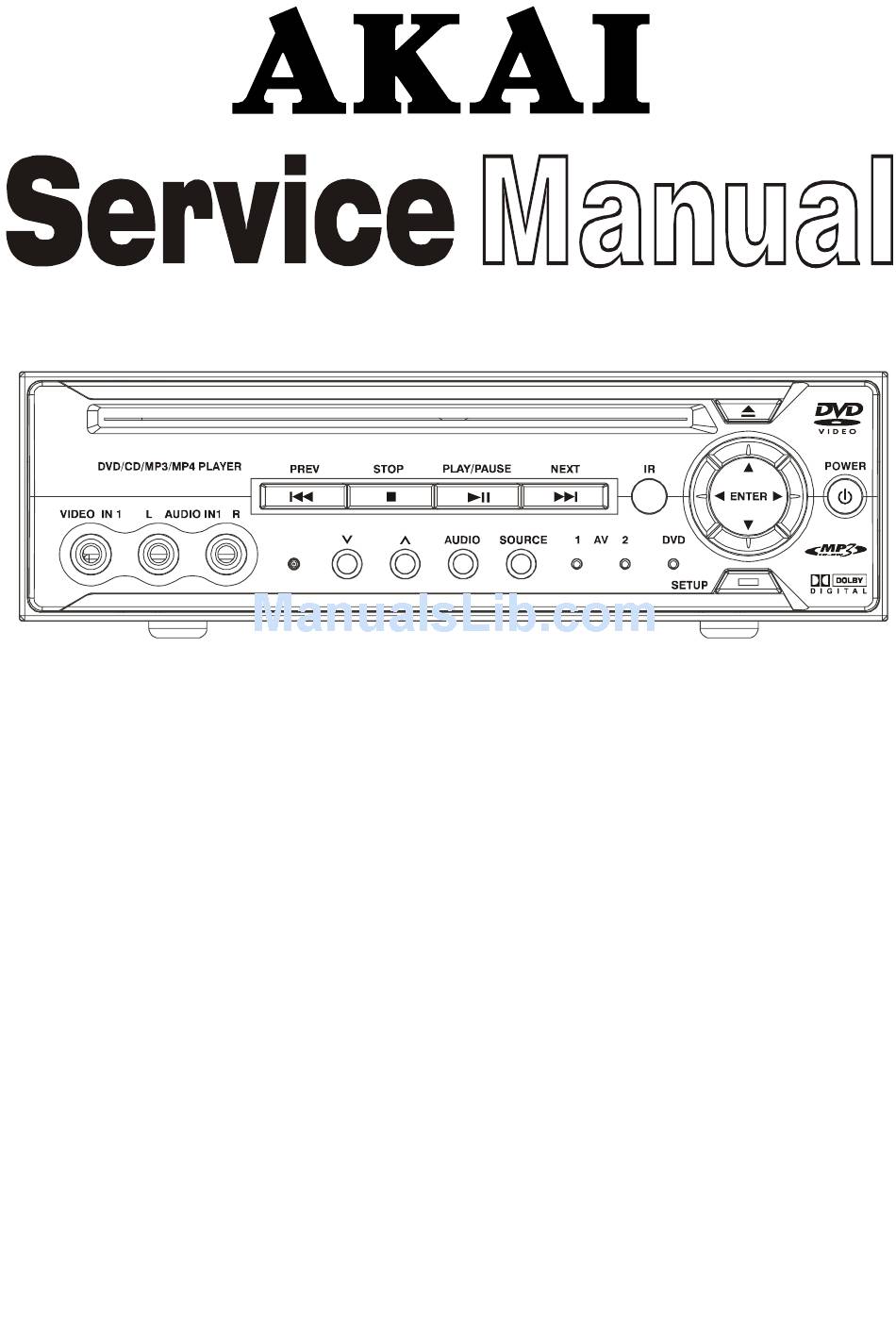

  • Page 1 MOBILE VIDEO SYSTEM MODEL: ADV-85DR Note: Digital Audio Out-Coaxial Multi-subtitle Languages Function Multi-audio Languages Function Multi-angle Function Parental Control...

  • Page 2: Table Of Contents

    CONTENTS Page Disassembly Instructions............................ 3 Disassembly Diagram............................4 Block Diagram ..............................5 Printed Circuit Board............................6 Wiring Diagram ..............................12 Exploded View ..............................13 Exploded View Parts List ............................ 14 Schematic Diagram ............................15 Electrical Parts List ............................. 19 Specifications..............................26...

  • Page 3: Disassembly Instructions

    DISASSEMBLY INSTRUCTIONS 1. Remove two screws (A) from each side of the top cabinet and remove three screws (B) located on the rear of the top cabinet then remove the Top Cabinet. 2. Remove four screws (C) located on the under the bottom cabinet then remove four Rubber Foot DVD171. 4.

  • Page 4: Disassembly Diagram

    DISASSEMBLY DIAGRAM...

  • Page 5: Block Diagram

    BLOCK DIAGRAM...

  • Page 6: Printed Circuit Board

    PRINTED CIRCUIT BOARDS MAIN BOARD TOP VIEW...
  • Page 7 MAIN BOARD BOTTOM VIEW...
  • Page 8 KEY BOARD TOP VIEW...
  • Page 9 KEY BOARD BOTTOM VIEW...
  • Page 10 REMOTE BOARD TOP VIEW...
  • Page 11 REMOTE BOARD BOTTOM VIEW...

  • Page 12: Wiring Diagram

    WIRING DIAGRAM...

  • Page 13: Exploded View

    EXPLODED VIEW...

  • Page 14: Exploded View Parts List

    EXPLODED VIEW PARTS LIST Ref. No. Description RS Part No. Mfr’s Part No. Ring (S. OPC1202) 51-H2020-80A Panel Top W/O TV (S. OPC1202) 51-K2020-84Y Top Cover (S. OPC1202) 61-H2002-80 Bottom Cabinet W/O TV (S. OPC1202) 61-K2001-81B Main PCB Paper 43-H2001-00 Main Board 11-02014-007 DVD MECH.

  • Page 15: Schematic Diagram

    SCHEMATIC DIAGRAM (SERVO)
  • Page 16 SCHEMATIC DIAGRAM (MPEG)
  • Page 17 SCHEMATIC DIAGRAM (POWER)
  • Page 18 SCHEMATIC DIAGRAM (I/O)
  • Page 19 SCHEMATIC DIAGRAM (AV/POWER)
  • Page 20 SCHEMATIC DIAGRAM (KEY BOARD)
  • Page 21 SCHEMATIC DIAGRAM (REMOTE BOARD)

  • Page 22: Electrical Parts List

    ELECTRICAL PARTS LIST Ref. No. Parts No. Description Q’ty PC BOARD ASSY, MAIN BOARD Q2,7,24~6,QV7,8 01-00106-00 KRA106S (SOT-23) Q3,5,QV5,6 01-00106-10 KRC106S (SOT-23) Q13,22,QA7~11 01-00231-00 KRC231S (SOT-23) QQ1,2,QV1 01-01298-00 KTA1298 (SOT-23) 01-01385-00 KTA1385D-Y (DPAK) Q1,8,QQ4,QV2,3 01-03265-00 KTC3265-Y (SOT-23) Q6,11,QP1 01-04375-00 TR. KTC4375-Y (SOT-89) 02-04001-01 CHIP IN4001 (SOD-106) D4,6,7,10~2,DD2,3,6,8...
  • Page 23 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty B6~9,11/3/5~30/4~8,41/5/6,57/9,C192 05-63104-02 CHIP CAP 0.1µF ±20% X7R 0603 SMT 2,128,191,230/2,246/7,256,CC3,6,7,9 ,10/2/9 C184/8,CA17,20/5/8 05-63151-00 CHIP CAP 150PF ±5% NPO 0603 SMT C249 05-63200-00 CHIP CAP 20PF ±5% NPO 0603 SMT C216,223 05-63222-01 CHIP CAP 2200PF ±10% X7R 0603 SMT...
  • Page 24 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty R186,189,RR9,70/2,95 07-63203-00 CHIP RES 20kΩ ±5% 0603 SMT R184,192,RR19 07-63222-01 CHIP RES 2.2kΩ ±5% 0603 SMT R22/8,RV6 07-63223-00 CHIP RES 22kΩ ±5% 0603 SMT R296 07-63271-00 CHIP RES 270Ω ±5% 0603 SMT RA12/9,29,36 07-63303-00 CHIP RES 30kΩ...
  • Page 25 ELECTRICAL PARTS LIST - CONTINUED Ref. No. Parts No. Description Q’ty 25-08360-13A CON CHIP 13PIN P=1.0MM FPC TOP 25-08360-24A CON CHIP 24PIN P=0.5MM FPC TOP AV-IN 25-24184-05 WAFER FOR 5PIN JST 2.0 PC BOARD ASSY, KEY BOARD LEF1 02-01112-02F SMD LED PG1112H RED “STANLEY” 02-01112-06M SMD LED S172DNB4-5 0805 BLUE 02-50053-00...

  • Page 26: Specifications

    SPECIFICATIONS Current Consumption........................Less than 2.0A Signal System ................... Competitive video 1.0Vp-p 75Ω RCA pin jack Audio Output level ........................600Ω (2CH 2.0Vrms) Audio signal output Characteristics: Frequency response ......................... 20 Hz - 20 kHz S/N Radio..............................90 dB (JIS) Wow and flutter .........................
