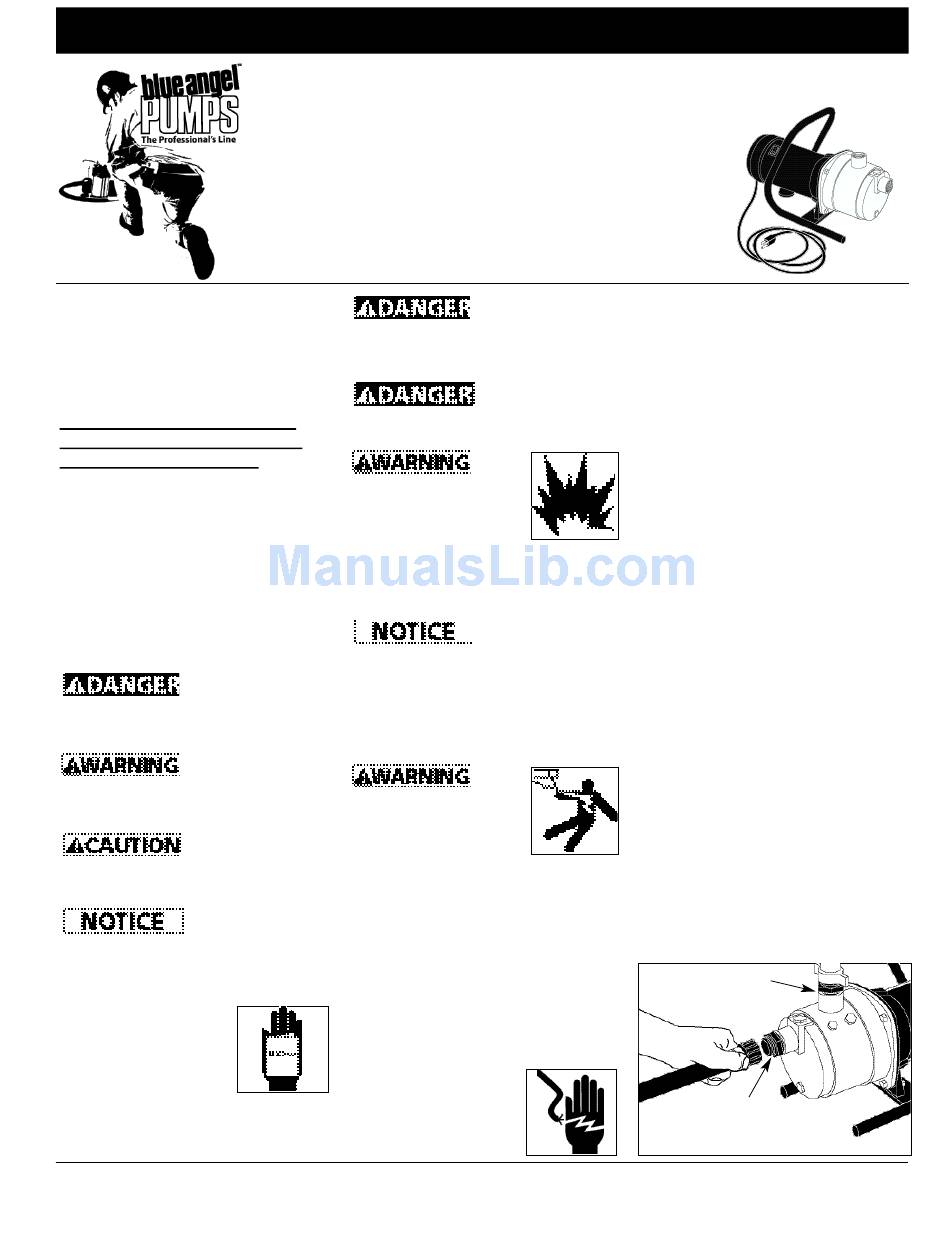

Blue Angel BPLS Series Operating Instructions And Parts Manual

Operating Instructions and Parts Manual
Description
This pump is designed to sprinkle lawns
and small gardens from lakes, ponds, or
rivers, empty or fill stock tanks, remove
standing water from flooded areas,
transfer water or boost water pressure.
Flammable liquids such as gasoline,
chemicals or corrosive liquids should
never be used with this pump.
Safety Guidelines
This manual contains information that
is very important to know and under-
stand. This information is provided for
SAFETY and to PREVENT EQUIPMENT
PROBLEMS. To help recognize this
information, observe the following
symbols.
Danger indicates
an imminently haz-
ardous situation which, if not avoided,
will result in death or serious injury.
Warning indicates
a potentially haz-
ardous situation which, if not avoided,
could result in death or serious injury.
Caution indicates a
potentially haz-
ardous situation which, if not avoided,
may result in minor or moderate injury.
Notice indicates
important infor-
mation, that if not followed, may cause
damage to equipment.
General Safety Information
1. Read these rules and
instructions carefully.
Failure to follow these
instuctions could
cause serious bodily
injury and/or property damage.
© 2007 Blue Angel™ Pumps
Please read and save these instructions. Read carefully before attempting to assemble, install, operate or
maintain the product described. Protect yourself and others by observing all safety information. Failure to
comply with instructions could result in personal injury and/or property damage! Retain instructions for
future reference.
Portable Lawn
Sprinkler
and Utility Pump
the motor dry at all times. Do not wash
the motor. Do not immerse. Protect the
motor from wet weather.
receptacle ends to sit in water or in
damp locations.
Pump only clear water. Do
not pump flammable or
explosive fluids such as
gasoline, fuel oil,
kerosene, etc. Do not use in a flamma-
ble and/or explosive atmosphere.
Personal injury and/or property dam-
age could result.
salt water, brine, laundry discharge or
any other application which may con-
tain caustic chemicals and/or foreign
materials. Pump damage could occur if
used in these applications and will
void warranty.
All wiring must be per-
formed by a qualified
electrician. The pump
must be installed in com-
pliance with all local and national
codes.
2. Connect this product to a grounded
circuit equipped with a ground
fault circuit interruptor (GFCI)
device.
3. Before installing this product, have
the electrical circuit checked by an
electrician to ensure proper
grounding.
4. BE CERTAIN the pump
power source is dis-
connected before
installing or servicing
pump.
For parts, product & service information
visit www.blueangelpumps.com
This pump is non-
5. Be sure the water source and piping
submersible. Keep
are clear of sand, dirt and scale.
Debris will clog pump and void war-
ranty.
Do not allow any 6. Failure to protect pump and piping
part of cord or
from freezing could cause severe
damage and will void the warranty.
7. Do not run pump dry.
Installation
PUMPING FROM LAKES, PONDS OR
SMALL STREAMS
1. Locate pump as close as possible to
the water source, keeping the verti-
cal distance from the water to
pump as small as possible. Place
pump on level support. Protect
against flooding and excessive
This pump is not
moisture.
designed to handle
2. Long lengths of pipe or hose and
use of many fittings will reduce
pump flow. Use the smallest num-
ber of fittings and shortest possible
length of pipe or hose.
3. Be sure water is clear of debris such
as sand, mud, and gravel.
4. Connect inlet pipe or hose to pump.
The inlet connection is designed for
1" NPT thread. Rigid pipe such as
PVC will work fine for inlet and
outlet pipe. (Reminder: Minimize
length of pipe and number of fit-
tings.) An adapter for garden hose
is included (see Figure 1).
Figure 1
BPLS Series
Pump Outlet
Pump Inlet
321600-002 1/07
