VBC Racing Ghost EVO Instruction Manual

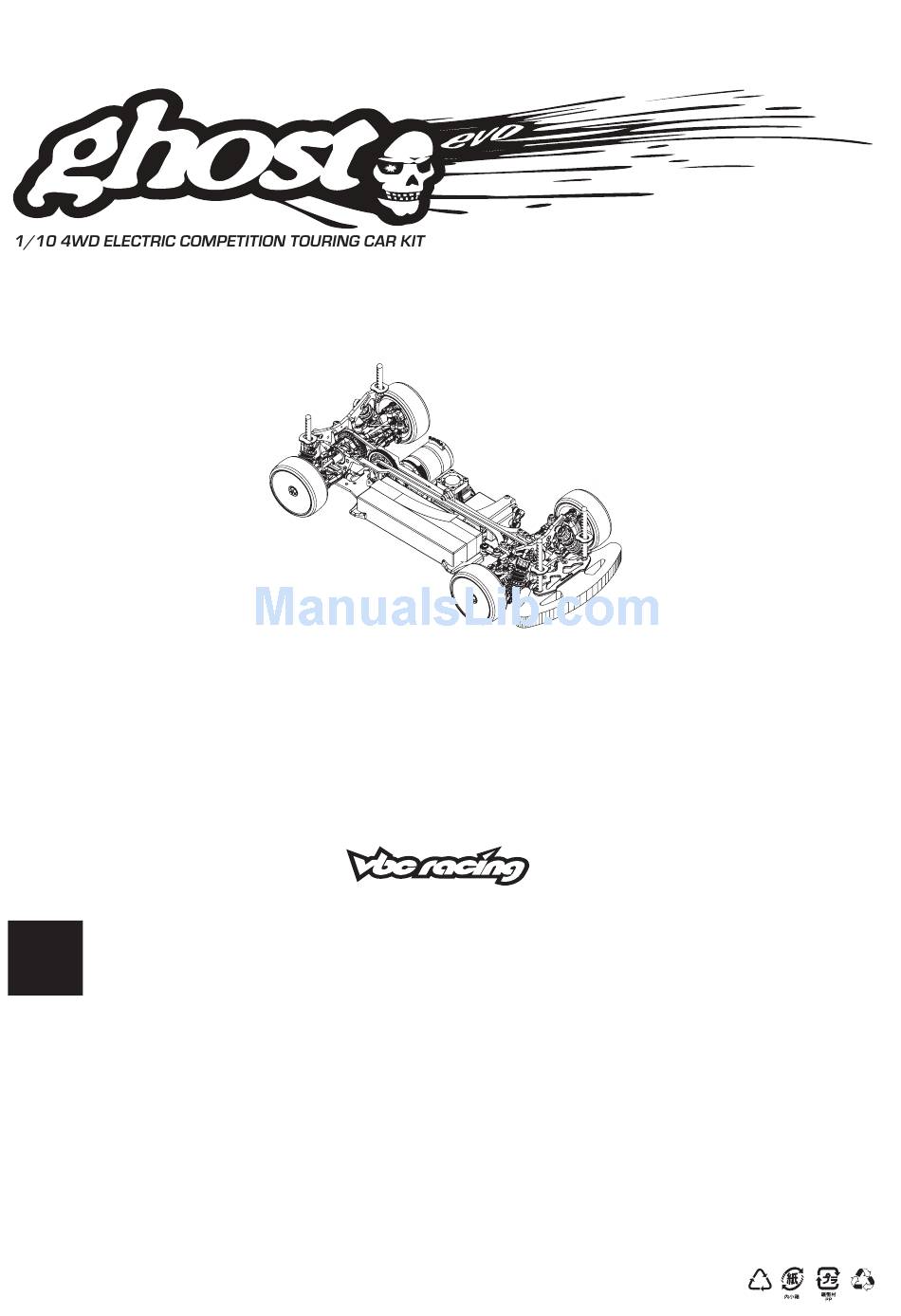

1/10 4wd electric competition touring car kit
Hide thumbs Also See for Ghost EVO:

Advertisement

Quick Links

Download this manual
COMPETITION GRADE HIGH PERFORMANCE RADIO CONTROL RACING CAR CHASSIS KIT
E
Thank you for purchasing VBC Racing product.
Things that we should remind you.
This VBC Racing kit is a high performance, racing grade car kit
intended for experienced racers. The kit compose of VBC
formulated composite materials, top quality FRP chassis and
high grade 7075 material which will give you a competitive edge
over the others.
Novice racer should seek advice from more experienced racer
before assembly.
Always keep this instruction manual handy at all times for quick
reference even after completing the assembly.
Before your assembly, sand the chassis edges.
Sand the chassis edges with #600 sand paper and apply CA
glue to the edges and counter sink holes.
Need help or support.
If you need help or you would like to leave us a comment,
please email to our support team: support@vbc-racing.com or
visit our web site www.vbcracing.com
INSTRUCTIONS MANUAL
5

Advertisement

loading
Need help?

Need help?

Do you have a question about the Ghost EVO and is the answer not in the manual?

Questions and answers

Related Manuals for VBC Racing Ghost EVO

Summary of Contents for VBC Racing Ghost EVO

  • Page 1 Thank you for purchasing VBC Racing product. Things that we should remind you. This VBC Racing kit is a high performance, racing grade car kit intended for experienced racers. The kit compose of VBC formulated composite materials, top quality FRP chassis and high grade 7075 material which will give you a competitive edge over the others.
  • Page 2 M3x6 Flathead Motor Mount Center Pully Bulkhead M3x10mm Round Head Screw Motor Mount Support Ghost Evo Center Pully Bulkhead B-02-P40297 x 2 M3x6 Flathead M3x10mm Round Head Screw Center Pully Bulkhead Ghost Evo Motor Mount B-02-P40296 x 1 Lower Bulkhead...
  • Page 3 15x0.3 Shim B-02-VBC-0077 x 2 Outdrive Sealer O-Ring 15x0.3 Shim M2x10 Shaft Pin B-02-VBC-0020 x 2 10x15 Ball Bearing Diff Outdrive Diff Shaft Sealer O-Ring B-03-VBC-0006 x 2 Rear Gear Diff Right Side Assembly Cross Section © VBC Racing GHOST EVO...
  • Page 4 Seal Gasket B-03-VBC-0004 x 1 Place Seal Gasket to the left side diff assembly before Seal Gasket putting the right Grease side diff together Diff Gear Shaft A-03-VBC-0020 x 1 Right Side Diff Assembly Belt Tension Adjuster Ring © VBC Racing GHOST EVO...
  • Page 5 Front Spool Outdrive A-03-VBC-0055 x 2 10x15 Ball Bearing Diff Holder Belt Tension Adjuster Ring A-03-VBC-0047x 2 10x15 Ball Bearing C-02-BB-1510-P x 2 Spool Drive Cup M3x12 Flathead C-02-SC-F0312 x 2 M3x12 Flathead M3x6 Roundhead C-02-SC-R0306 x 3 © VBC Racing GHOST EVO...
  • Page 6 3x6 Ball Bearing Thread Lock Composite Steering Arms A-03-VBC-4002 x 2 M3x6 Set Screw 3x6 Ball Bearing Ghost Evo Steering Bridge B-02-P40324 x 1 Suspension Arm Spacer T2 3x6 Ball Bearing C-02-BB-0603 x 2 Ball Connector 4.7x12mm M3x6 Roundhead M3 x 0.2 Shims 5x8 Ball Bearing C-02-BB-0805-B x 4 M3 x 0.2 Shims...
  • Page 7 Make 2 steering link tie-rods, follow the connector cups directions as the above diagram. The connector cups edge to edge shall be 29.40mm. Please use a caliper to measure the exact measurement M3x6 Flathead C-02-SC-F0306 x 2 M3x6 Flathead M3x6 Flathead © VBC Racing GHOST EVO...
  • Page 8 3x6mm Ball Bearing C-02-BB-0603 x 2 Adjust Belt Tension 3x5x0.3mm Shim B-02-VBC-0101 x 3 M3x12 Roundhead Screw C-02-SC-R-0312 x 1 GHOST EVO Upper Deck A-01-P40306 Optional Graphite Upper Deck A-01-G-40539 GhostEVO Mid Flex Graphite Upper Deck or M3x6 Roundhead Screw C-02-SC-R0306 x 1 A-01-G-40546 GhostEVO High Flex 1.6 Graphite Upper Deck...
  • Page 9 M3x6 Roundhead C-02-SC-R0306 x 9 M3x6 Flathead C-02-SC-F0306 x 2 M3x6 Roundhead Center Pulley Bearing Holder B-02-VBC-3020 x 2 M3x6 Flathead Center Pulley Bearing Holder Center Pulley Bearing Holder M3x6 Flathead Ghost Evo Rear Belt B-03-G30288 x 1 © VBC Racing GHOST EVO...
  • Page 10 Suspension Arm Spacer T2 Ball Connector B-02-VBC-0045 x 4 MAKE FOUR M3x6 Set Screw C-02-SC-SS-0306 x 4 M3x6 Set Screw Ghost Evo Upper Bulkhead B-02-P40294 x 4 Ghost Evo Upper Bulkhead M3x8 Roundhead Optional WildFireD07 Split Mounts Install Rear Drivetrain...
  • Page 11 D-05-VBC-0174 WildFireD07 Split Suspension Mount X/YC10 Tighten screw to lock the Belt Tension Adjuster Ring position Tighten or loosen the belt tension by adjusting the Belt Tension Adjuster Ring dial D-05-VBC-0175 WildFireD07 Split Suspension Mount X/YC15 © VBC Racing GHOST EVO...

  • Page 12: Rear Suspension Arm Assembly

    E30 Suspension Mount Rear Suspension Mount Chart : X-C15, Y-C15 Narrow X-C10, Y-C10 X-C05, Y-C05 Y-C05, X-C05 Y-C10, X-C10 Wide Y-C15, X-C15 After installing the rear arms, make sure the arms can move freely M3x6 Flat Head © VBC Racing GHOST EVO...
  • Page 13 After assembling the drive shaft, make sure the joints are free swinging. Composite 6.0mm Wheel Hub A-03-VBC-4004 x 2 Ball Connetor B-02-VBC-0045 x 2 M2x10 Shaft Pin Suspension Arm Spacer T2 Composite A-03-VBC-0052 x 4 Composite 6.0mm Wheel Hub © VBC Racing GHOST EVO...
  • Page 14 Make sure the turnbuckle caps move freely after snapped to the ball connector M3x4 Set Screw C-02-SC-SS-0304 x 2 3x0.3mm Shim M3x23 Upright Pin Tighten the set screw. Screw should be flat to the arm bottom and do not over tighten. 3x0.3mm Shim M3x23 Upright Pin © VBC Racing GHOST EVO...
  • Page 15 Suspension Arm Pin M4x10 Set Screw C-02-SC-SS-0410 x 2 M3x10 Set Screw C-02-SC-SS-0310 x 2 M4x10 Set Screw Suspension Arm Spacer T2 Grease Suspension Arm Spacer T1 M3x10 Set Screw Grease Arm Pin Pivot Ball Ball Connector © VBC Racing GHOST EVO...
  • Page 16 Wide Front Suspension Mount Chart : X-C15, Y-C15 -0.5 -1.0 -1.5 -2.0 -2.5 Narrow X-C10, Y-C10 -0.5 -1.0 -1.5 -2.0 X-C05, Y-C05 -0.5 -1.0 -1.5 -0.5 -1.0 Y-C05, X-C05 -0.5 Y-C10, X-C10 Wide Y-C15, X-C15 © VBC Racing GHOST EVO...
  • Page 17 Thead Lock M2x10 Shaft Pin M3x2 Set Screw C-02-SC-SS-0302 x 2 M3x2 Set Screw Ball Connetor Composite 5.0mm Wheel Hub A-03-VBC-4005 x 2 M2x10 Shaft Pin Ball Connetor B-02-VBC-0045 x 2 Composite 5.0mm Wheel Hub © VBC Racing GHOST EVO...
  • Page 18 Steering Swivel Tube B-02-VBC-0033 x 4 M3x12 Set Screw C-02-SC-SS-0312 x 2 M3x4 Set Screw M3x4 Set Screw C-02-SC-SS-0304 x 2 3x23 Upright Pin Grease M3x9 Round Head Screw C-02-SC-R0308 x 2 3x23 Upright Pin M3x4 Set Screw © VBC Racing GHOST EVO...
  • Page 19 D07 Rear Stabilizer 1.2 Green Option C-02-G30251 Stabilizer Collar B-02-VBC-0070 x 2 FRONT STABILIZER Front Stabilizer 1.3 Optional : D07 Front Stabilizer 1.4 White C-02-G30252 D07 Front Stabilizer 1.2 Green C-02-G30250 M3x3mm Set Screw Stabilizer Collar Stabilizer Ball Cup © VBC Racing GHOST EVO...
  • Page 20 M3x8 Round Head Screw M3x3mm Set Screw M3x3mm Set Screw Install Front and Rear Stabilizers Stabilizer Mount Ghost Evo Stabilizer Mount A-01-P40295 x 2 M3x3mm Set Screw C-02-SC-SS-0303 x 4 4.7x17mm Ballstud A-02-VBC-5092 x 2 INSTALL FRONT STABILIZER Turnbuckle Cup Open Type L...
  • Page 21 Note the double ring face to ball connector Shock Shaft B-02-VBC-0127 x 4 Sealer O-Ring B-03-VBC-0002 x 4 Shaft Sealer O-Ring B-03-VBC-0012 x 4 Make sure the shock shaft can move up and down freely M3 E-Clip B-02-VBC-0129 x 8 © VBC Racing GHOST EVO...
  • Page 22 Note the double ring face to ball connector Shock Spring Orange B-02-VBC-0073-A (For Front) x 2 Shock Spring Orange (For Front) Shock Spring Red (For Rear) Spring Bottom Support Shock Spring Red B-02-VBC-0073C (For Rear) x 2 © VBC Racing GHOST EVO...
  • Page 23 M3x8 Round Head M3x8 Round Head Ball Connector Basic Setup Shock Position Front Shock Tower Ghost Evo FRP Front Shock Tower A-01-P40321 Optional Graphite Shock Tower A-01-G-40541 GhostEVO Graphite Front Shock Tower or D-05-VBC-0191 GhostEVO Full Graphite Conversion Ball Connector...
  • Page 24 STEP27-30 BAG MARKED M3x8 Round Head Basic Setup Shock Position Ghost Evo FRP Rear Shock Tower A-01-P40322 M3x8 Round Head Rear Shock Tower Ball Connector B-02-VBC-0045 x 2 Ball Connector M3x8 Round Head Screw C-02-SC-R0308 x 2 Optional Graphite Shock Tower...

  • Page 25: Install Motor

    Pinion set screw not included All-new motor mount can incorporate a wider range of gear ratios from 21.5 up to modified classes Please make sure there is enough clearance for the gears to run smoothly © VBC Racing GHOST EVO...
  • Page 26 Servo Mount Standoff Ghost Evo Servo Mount Standoff B-02-P40298 x 1 Servo Mount Side Mount Ghost Evo Servo Mount Side Mount B-02-P40299 x 1 Ball Connector M3x8mm Round Head Use Servo Horn Type F or Servo Horn Type A depending on the servo...
  • Page 27 STEP31-33 BAG MARKED Install Front Bumper and Body Posts 4mm Flanged Wheel Nut B-02-VBC-0086 x 4 WHEELS AND TIRES NOT INCLUDED 4mm Flanged Wheel Nut We Recommend Panaracer Products. 4mm Flanged Wheel Nut © VBC Racing GHOST EVO...
  • Page 28 Body Height Adjuster Support M2x12 Shaft Pin B-02-VBC-0022 x 2 Body Height Adjuster Support Body Clip B-02-VBC-0076 x 2 M2x12 Shaft Pin Body Height Adjuster Support A-03-VBC-0015 x 2 M2x12 Shaft Pin Front Body Post A-03-VBC-0013 x 2 © VBC Racing GHOST EVO...
  • Page 29 Rear Body Post Body Height Adjuster Support A-03-VBC-0015 x 2 Rear Body Post M2x12 Shaft Pin M3x10mm Round Head M3x10mm Round Head INSTALL ESC, RECEIVER AND ANTENNA TUBE (these items are not included in this kit) © VBC Racing GHOST EVO...
  • Page 30 Centerline Battery Stopper B-02-VBC-3034 x 2 M3x10mm Flat Head Screw C-02-SC-F0310 x 2 M3x6 Flathead C-02-SC-F0306 x 2 Plastic Battery Mount A-03-VBC-3025 x 1 Install 7.4V Lipo On Chassis And Fix By Battery Tape (These Items Are Not Included) © VBC Racing GHOST EVO...
  • Page 31 Instructions Book P-01-P40551.0 VBC Racing GhostEVO Car Kit D-05-VBC-CK09...
