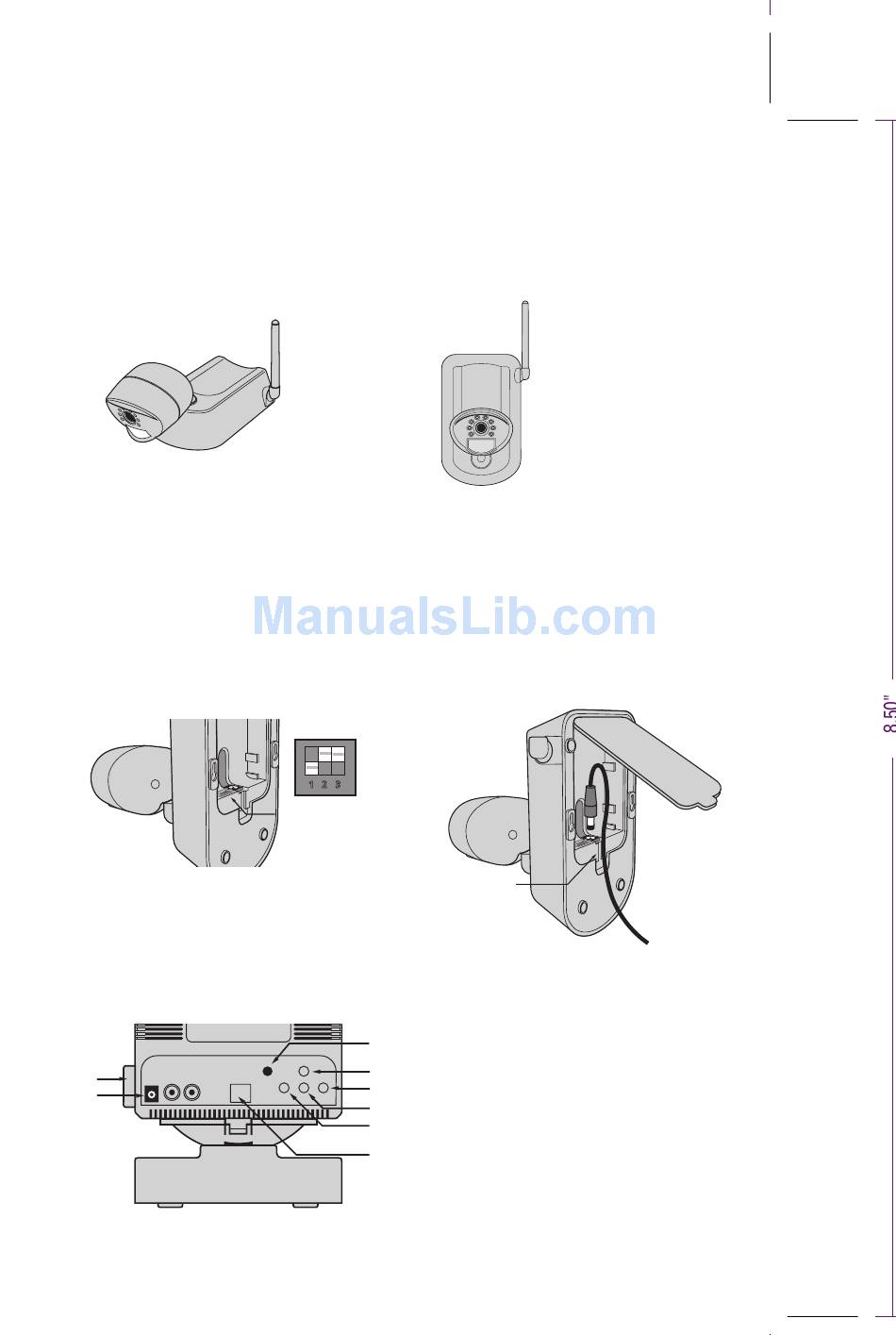

INSTALLING THE CAMERA (TRANSMITTER)
1. Unpack the Camera.
2. Decide whether the Camera will be wall-mounted or sit on a desk/table top. If wall mounting, use drilling
template on the back cover of these instructions. The Camera can be adjusted for either mounting
scenario by rotating the Camera head to the required position.
3. Decide whether to connect using AC power or batteries (not included). If using batteries remove battery
compartment lid on rear of Camera and install 5 x AA batteries. If using the 12V camera power adapter,
remove lid and connect power jack. Snap lid closed trapping
the cable in the slot behind the tab. Make sure the Camera is
positioned no more than 5 1/2 feet from an AC power outlet.
4. Select the Camera operating channel on the DIP switch in the battery compartment by moving switches
1,2, or 3 to the down position. Switch is present to channel 1.
The Camera (Transmitter) installation is now complete.
INSTALLING THE MONITOR (RECEIVER)
Audio
Video
Out
Out
Volume
Power jack
5.50"
Desk/Tabletop
DIP switch preset to
Channel 1 position
Beep Volume Control
VCA Jack
Contrast
Brightness
V-Hold
DIP Switch
2
Wall Mounted
Trap cable in slot
and close lid
