INDOOR/OUTDOOR
WIRELESS CAMERA SYSTEM
Includes: Video/Audio Camera Transmitter & Monitor/Receiver
Questions? Call 1-800-GE LIGHT
Made in China for
GE Home Electric Products, Inc.
Nela Park, Cleveland, OH 44112
Desc.: GESECTVBW- 2
USER'S GUIDE
Congratulations on your purchase of the GE SmartHome™ Wireless Camera System (WCS). The WCS is a
combined wireless camera and video monitor/ receiver, an ideal combination for monitoring the porch,
watching the yard, pool, pets or the baby. It is also suited to many small business applications.
FEATURES
• 2.4GHz wireless technology
• Plug 'n' play installation
• High resolution black and white video camera with motion detection
• Built-in microphone transmits sound from camera to monitor
• High quality audio and video components for long life
• Supports up to 3 cameras
• Durable weather resistant camera construction
• Manual or auto switching between cameras
• AC or battery operation (batteries not included)
• IR LEDs for night vision
• Photocell sensor to automatically turn on night
vision when needed
The wireless camera can also be operated with the GE Rechargeable Battery Pack GESECWBAT2
(sold separately) for complete portability and extended battery life.
SYSTEM CONTENTS
Identify all parts before proceeding with installation.

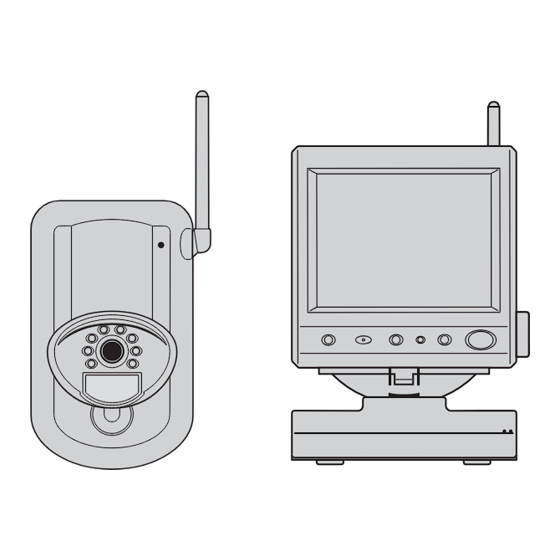

Wireless Camera
Monitor
Mounting Screws
THINGS TO CONSIDER BEFORE INSTALLATION
For best performance, follow these simple guidelines:
• Camera(s) should be installed between 8 and 13 feet above the area to be monitored
• The Camera should be aimed accordingly to optimize viewing area
• For best transmission, avoid installations where there are thick walls or major obstructions
between the Camera and Monitor
1
WARNING
Risk of fire
• When using an AC to DC adapter,
insure proper polarity and voltage.
Risk of electric shock
• For use in dry locations
12 V Camera Adapter
13.5 V Monitor Adapter

Advertisement

   Related Manuals for GE Smart Home

No related manuals

   Summary of Contents for GE Smart Home

  • Page 1

    Congratulations on your purchase of the GE SmartHome™ Wireless Camera System (WCS). The WCS is a combined wireless camera and video monitor/ receiver, an ideal combination for monitoring the porch, watching the yard, pool, pets or the baby. It is also suited to many small business applications.

  • Page 2

    5.50" INSTALLING THE CAMERA (TRANSMITTER) 1. Unpack the Camera. 2. Decide whether the Camera will be wall-mounted or sit on a desk/table top. If wall mounting, use drilling template on the back cover of these instructions. The Camera can be adjusted for either mounting scenario by rotating the Camera head to the required position.

  • Page 3

    MOTION-SENSING CAMERAS to the release tab. GE SmartHome™ Cameras are equipped with a motion sensor or PIR. When a Camera detects motion, a 3. Remove the battery compartment lid on the underside red light flashes on the Camera and an audio alert sounds on the Monitor. The volume control for the alert of the unit and install 10 X C type batteries (not included).

  • Page 4

    5.50" NIGHT VISION The camera includes IR LEDs, which allows viewing up to 5 feet in the dark when used with the adapter. The IR LEDs are controlled by a photocell and are automatically turned on at low light level and off at high light level.

  • Page 5

    SPECIFICATIONS TV System EIA standard Camera (Transmitter) Integrated Lens 3.6mm, F2.0 fixed focus Resolution 300 horizontal TV lines Signal/Noise Ratio 48db High-Speed Electronic Shutter 1/60 - 1/15,000 sec Image Sensor 1/4” CMOS Min. Illumination 0.1 lux Current Consumption 120mA Overall Size 3.25”...

  • Page 6

    DRILLING TEMPLATE FOR WALL MOUNTING CAMERA(S) For wall-mounting Camera(s), drill two holes using a 1/4" drill bit and the template below. Insert supplied wall anchors into holes and secure camera to wall with supplied screws. Drill holes in these positions...
