Operating manual / Hints for connection

Purpose for use

The communication system AE 600 S has been designed for speech communication between motorbike

driver and passenger. To achieve this you use the supplied helmet speaker sets OHS 500 which have to be

fitted into already existing closed or open helmets (the microphone with it's thin and flexible boom can be

installed at both kinds of helmets). As optional solution, also a version with velcro-type microphone

(CHS300), only for closed helmets, is available.

The set gives you the opportunity for duplex communication between driver and passenger and vice versa.

The integrated Mono FM radio can be switched over to radio reception. The talking connection has priority to

radio reception: while talking the radio volume will be automatically decreased.

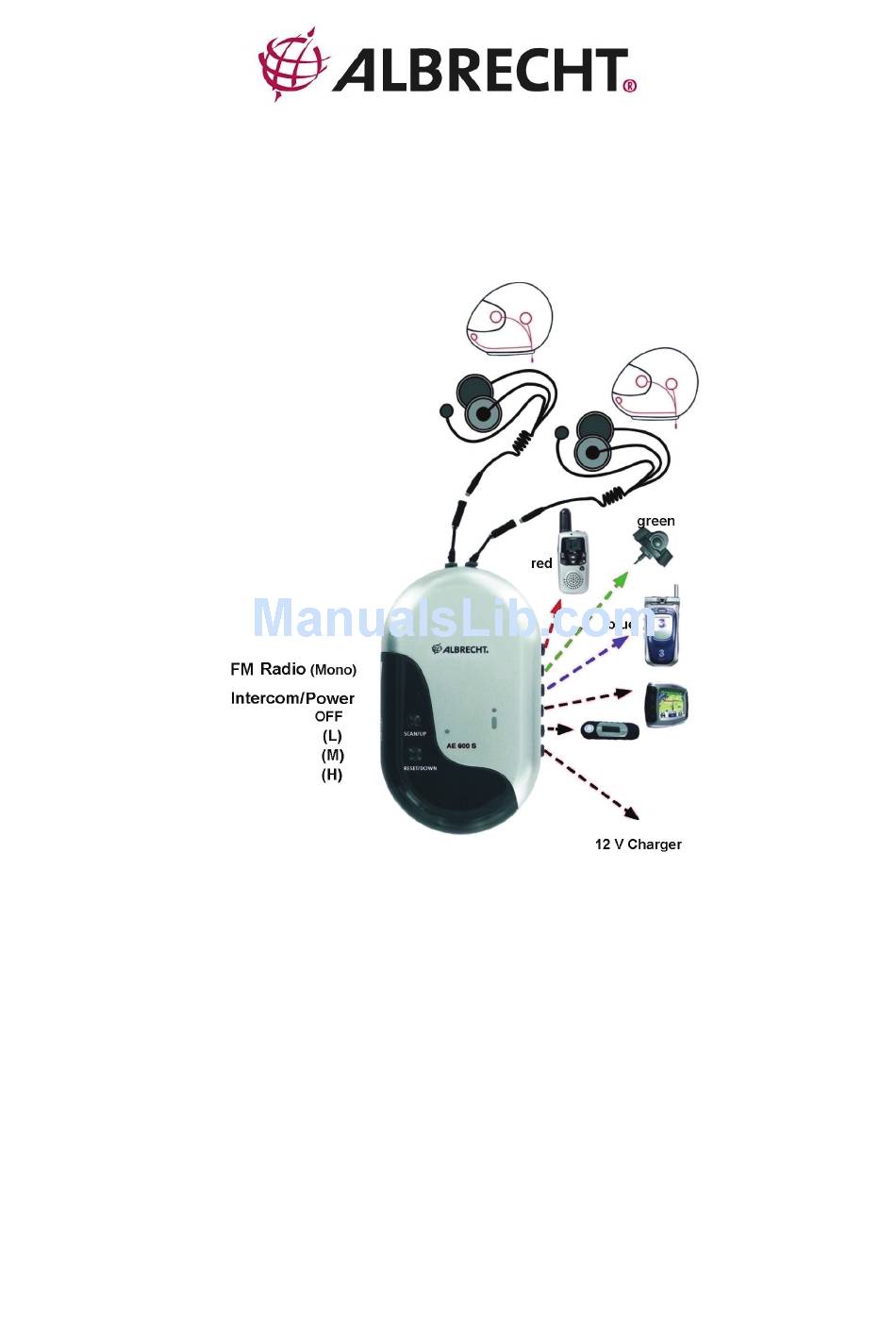

Furthermore the following equipment can be connected:

• external MP-3 or CD/DVD player via 3.5 mm jack plug

• voice guidance via 3,5 mm jack plug from navigation system with audio output

• a radio with PMR 446 or LPD standard for driver and passenger in connection with supplied

transmit (push-to-talk) keys

• GSM mobile phone (automatic incoming call switching mode must be active) for driver.

The set is being operated with 3 x AAA size Alkaline or rechargeable NiCd/ NiMH batteries independent

from vehicle power supply (not supplied with the intercom).

Motorbike communication system

AE 600 S

Table of Contents

Do you have a question about the AE 600 S and is the answer not in the manual?

Page 1 AE 600 S Purpose for use The communication system AE 600 S has been designed for speech communication between motorbike driver and passenger. To achieve this you use the supplied helmet speaker sets OHS 500 which have to be fitted into already existing closed or open helmets (the microphone with it’s thin and flexible boom can be installed at both kinds of helmets).
Page 2 Radio connection (red colour coded cable and socket): The radio connection of the AE 600 S fits to most of PMR with 2.5 mm / 3.5 mm plug combination such as ALAN 443, ALAN 456R, HP 446, Midland G7 / G 12 or Albrecht Tectalk Pro. The universal duo plug (2.5 mm for microphone and 3.5 mm for the ear set) is being supported by many other radios.
Page 3 If you do not need the intercom (in case that you only want to listen to broadcast radio) use the down position, Intercom (OFF). AE 600 S has a 4 position slide switch (3). The intercom enables a full duplex conversation: from driver's mic to pillion's headphones and vice versa.
Page 4 3.5 mm plug into the speaker/phone sockets of your radio. Connect also the push-to-talk key supplied with the AE 600 S system with the green marked socket (6). Please use the same switch position (L, M or H ) as for intercom.
