Belcat CADIC User Manual

PREAMP USER'S MANUAL
4Band Pardmetric EQ with Chromatic LED tuner

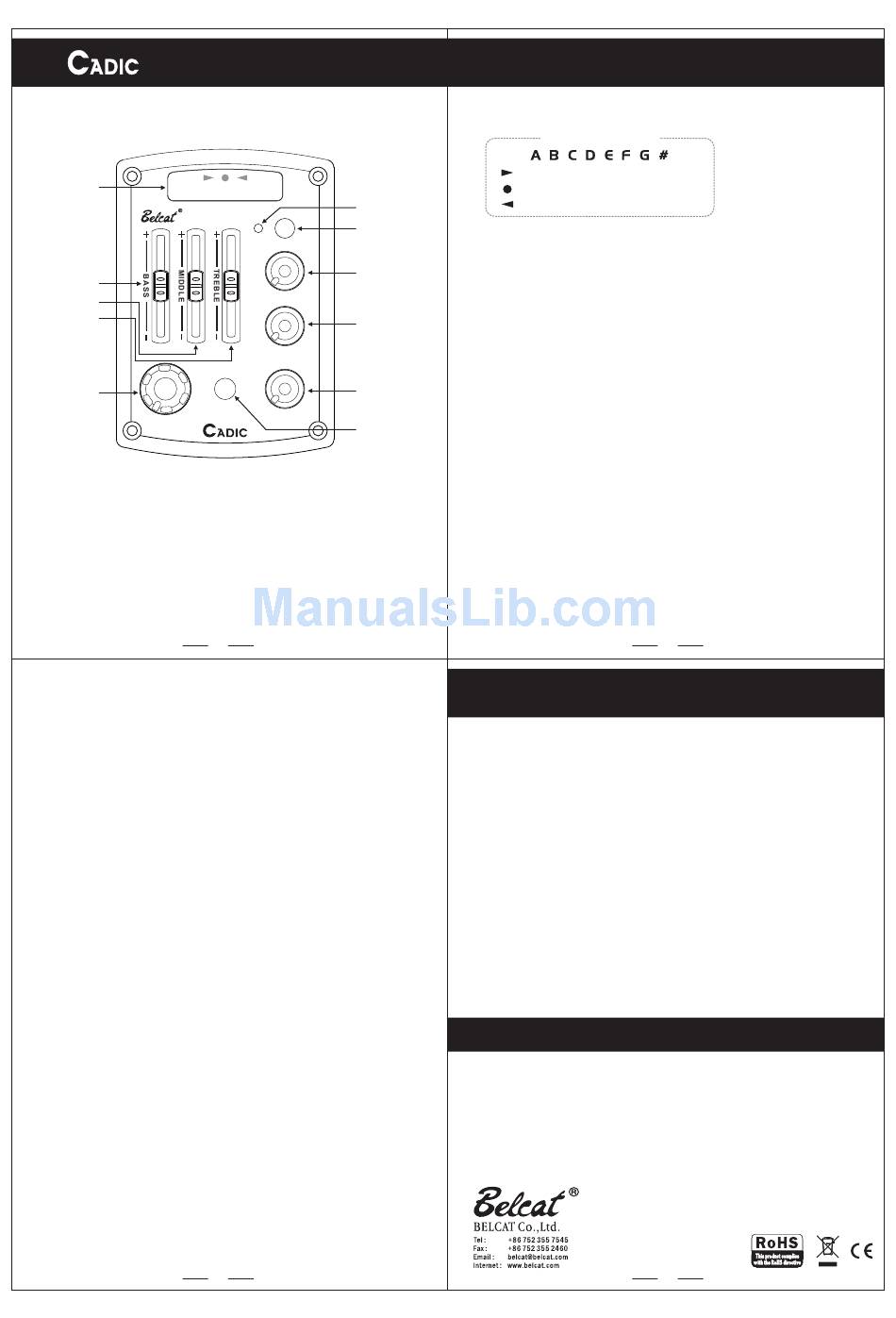

1
A B C
Chromatic Tuner
2
3
4
5
VOLUME
1. Tuner LED Display
2. Bass
3. Middle
4. Treble
5. Volume Knob
6. Low Batt. (Low Battery LED Light)
9. Middle FREQ. Knob
10. Notch Knob
11. Phase Button
The PHASE button controls the phase of the pickup in relationship to
the phase of the speaker that are being used with the system.
Pushing this button will put the pickup "out of phase" with the
speaker. When the button is out the pickup is in phase."
This control is most useful for feedback control and will provide a
tone color. Once you experiment with the settings of this control you
will find more about how it works.
#
D E F G
6
7
Low
Batt.
TUNER
8
BRIGHT
9
MIDDLE FREQ.
10
PHASE
NOTCH
11
7. Tuner on/off Button
8. Bright Knob
9. Middle FREQ. Knob
10. Notch Knob
11. Phase Button
1
"
3
Functions
1. Tuner LED Display
Tuner LED Display
: Tuning Guide LED for Sharp tune
: Tuning Guide LED for right tune
: Tuning Guide LED for flat tune
2. Bass
(for bass tones)
3. Middle
(for middle tones)
4. Treble
(for high tones)
The BASS, MIDDLE, TREBLE controls are a 3-band equalizer for
controlling tone.
The center detent on these tone controls yields a flat tone response.
"+12" boosts the tone; "12"cuts the tone.
5. Volume Knob
The VOLUME controls the output volume. At "0" it is completely OFF.
At "10" it is loud.
6. Low Batt. (Low Battery LED Light)
The LED will light when the battery has lost power. Replace the
battery when this light is on.
This LED light will flash when a cable is connected to the output
jack of the pickup system. This shows the battery is good.
7. Tuner on/off Button
8. Bright Knob
Specification
Input Impedance :
22MΩ
Frequency Response :
20Hz ~ 20KHz
Control Range
Bass :
+/-12dB at 80Hz
Middle :
+/-12dB at 300Hz ~ 1KHz
Treble :
+/-12dB at 3KHz
Bright :
+/-12dB at 15KHz
Notch Filter
: 20Hz ~ 300Hz(-30dB)
Phase Knob
Battery Status LED
Power Supply :
9V Alkaline Battery
Battery Life
Only Eq :
Over 700Hours
Tuner on :
Over 300Hours
Pick-up :
Omega II Piezo Cable pick-up
Dimension :
W 78mm X H 55mm (3.2" X 2.2")
Caution
- The jack should be pluged for proper Preamp working.
(TUNER will works regardless pluging jack)
- There is no output sound, please check if tuner or mute is turned on.
- When LCD screen is dim or no display, please check battery life.
- To prevent battery loss, please unplug jack when preamp is not in use.
- Do not disassemble for repair.
Return to your dealer for service or repair.
- Do not use too much force when operating the control.
