Belcat PS-2000 User Manual

PS-2000 PREAMP USER'S MANUAL

Passive Tone Control

2
Tone
+10
0
-10

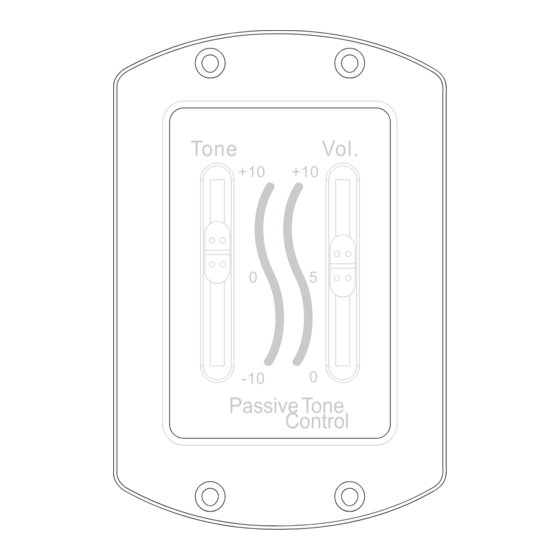

Passive Tone
1. Volume
1

Specification

Features : Passive
Frequency Response : 20Hz ~ 20KHz
Volume : A500KΩ
Pick-up : Piezo Ceramic pick-up
Dimension : W 46mm X H 71mm
(1.8" X 2.8")
3
1
Vol.
+10
5
0
Control
2. Tone

Functions

1. Volume Knob
The VOLUME controls the output volume. Turned fully counter-clockwise it is
completely OFF. Turned fully clockwise it is LOUD!
2. Tone
EQ TONE CONTROL
the center detent on these tone control yield a flat tone response.
"+10" boosts the tone; "-10" cuts the tone.

Battery

A 9-volt battery powers the PS-2000 preamp. Before connecting the
instrument to an amplifier or mixer please check that a fully charged 9-volt
battery is connected.
Caution
- The jack should be pluged for proper Preamp working.
(TUNER will works regardless pluging jack)
- There is no output sound, please check if tuner or mute is turned on.
- When LCD screen is dim or no display, please check battery life.
- To prevent battery loss, please unplug jack when preamp is not in use.
- Do not disassemble for repair.
Return to your dealer for service or repair.
- Do not use too much force when operating the control.
