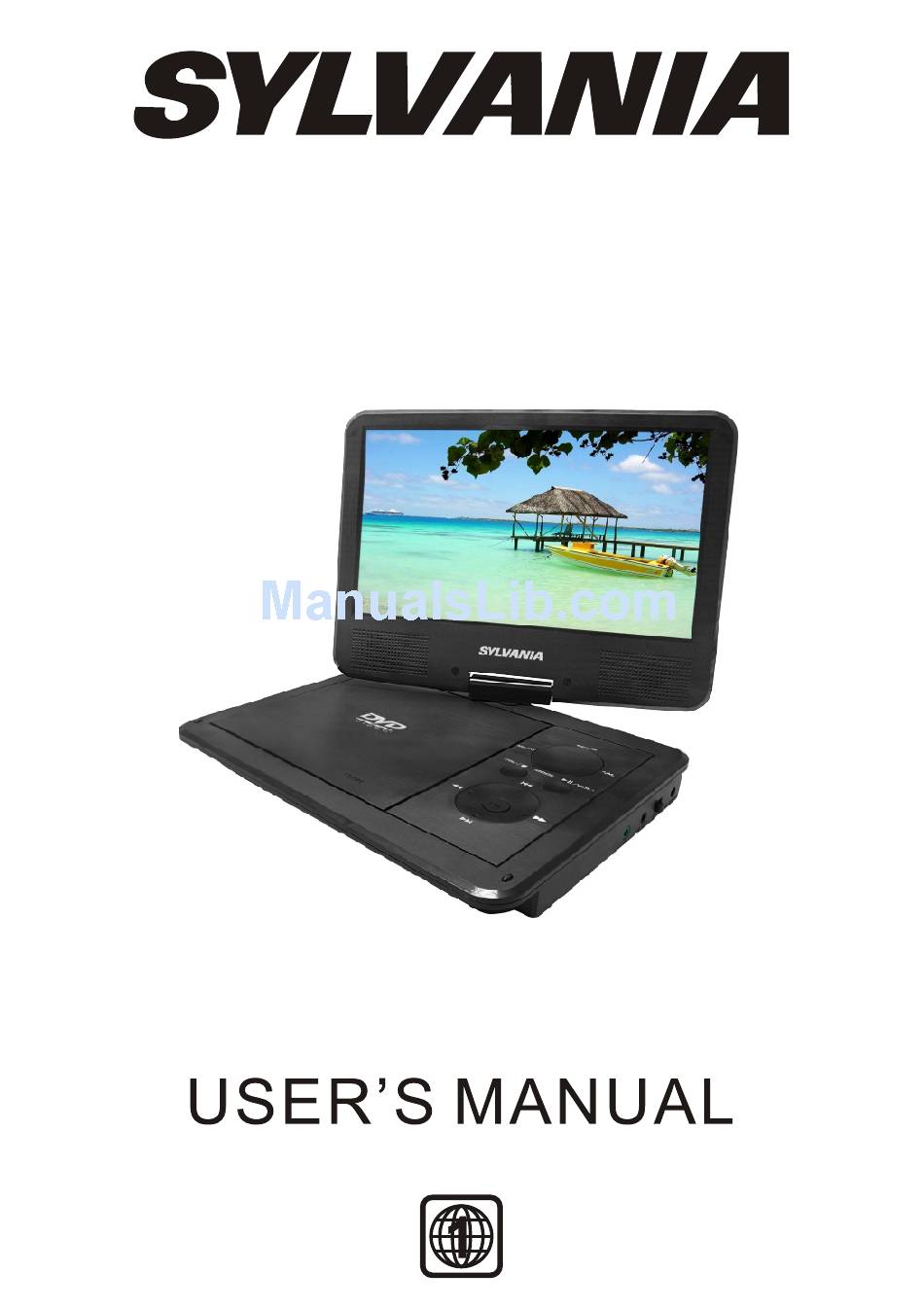

- Page 1 SDVD9321...
-
Page 2: Table Of Contents
Table Of Contents Safety Precaution Package Main Features Main Unit Controls System Connection Basic operation Virtual Remote Operation System Setup Specification Troubleshooting... -
Page 3: Safety Precaution
Safety Precaution Thank you for choosing our portable DVD player. The unit applies the latest state of art electronics and is designed for use at home, in hotels and in offices etc for relaxation. The compact size makes carrying easier as well as installation. Please read the manual carefully prior to use and keep it well for later consultation. - Page 4 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
-
Page 5: Package
Package DVD Player AC power Wall adapter User Manual DC power car adapter Main Features High brightness color 9” LCD screen Compatible with disc of DVD, VCD, MP3, MPEG4, CD, JPEG, etc. Built-in stereo speaker Built-in rechargeable Lithium polymer battery Support PAL or NTSC system Support Multi-language OSD, speed forward/backward, repeat function Swiveling LCD Screen... -
Page 6: Main Unit Controls
Main Unit Controls 1. USB Port 7. Play/Pause / VOL+ 2. SETUP button ( press shortly to play /pause, 3. MENU button press longly to add volume.) 4. FUNC. button button 1.when put in 5. MODE button button USB flash,press "MODE" will switch 10. -
Page 7: System Connection
System Connection Powering And Installation Plug one end of the AC power Wall adapter into the DC IN9-12V jack on the right of the machine, then plug the other end into the AC power receptacle. Please refer to the following illustration. If using DC power car adapter to connect to the power: Plug one end of the DC power car adapter into the DC IN 9-12V jack on the unit, plug the other end into the car cigarette lighter socket. -
Page 8: Connecting With External Speaker
Connecting With External Speaker The unit can be connected with external speaker. Please see the following illustration. AV CABLE Not supplied VIDEO IN AUDIO IN AMPLIFIER Left front Center speaker Right front speaker speaker SUBWOOFER Left rear speaker Right rear speaker Note: There is no 5.1 channel in the unit, however, after connecting to APM it is available to output audio in 5.1 channel. -
Page 9: Basic Operation
Basic Operation Playing disc of DVD, MPEG4, SVCD, VCD, CD, MP3, XVID. XVID MPEG4 SVCD 1. Connect the unit to the power; 2. Open the unit and adjust the monitor to the best position for viewing. 3. Turn on the unit by sliding the ON/OFF switch to ON. 4. -
Page 10: Virtual Remote Operation
Virtual Remote Operation 1. Press "MODE" button when disc is playing, you will see a virtual remote control as below, and the playback will be paused. 2. The virtual key is shown on the left of the menu, and the current playback Subtitle Off ZOOM status is displayed on the right. -
Page 11: Playing Jpeg File
3. ZOOM: When playing DVD discs, you can zoom in, press the "ZOOM" button and " " button to change the image size according the following sequence: x2 x3 x4, when playing JPEG file, you can zoom in and zoom out, press the "ZOOM"... - Page 12 Function operation: Press "MODE" key you will see the toolbar as below: Press the to move the cursor to select functions. Press " " to select the function. : Return, to return to the main menu. : To repeat one, repeat all. :To zoom in/out the image during playback.
-
Page 13: System Setup
System Setup Press MODE button when no disk or CD door open, the main menu will be displayed on the screen. Setup Menu Main Page In the General Setup Page, Press button General Setup to highlight this item. Press button to access. Video Setup Press button to select the setting. -
Page 14: Video Setup Page
General Setup Screen Saver: TV Display Wide Enter this option to set whether to activate Angle Mark OSD Lang the screen saver function. Screen Saver The default is ON. :Move :Return :Entry Video Setup Page Video Setup TV Type NTSC TV Type: NTSC Panel Quality... - Page 15 Preference Setup Subtitle: Select your preferred language to show the English Audio subtitles on the screen. Subtitle French The default is OFF. Disc Menu German The subtitle languages depend on the Parental Italian information available on each disc,You can Default also change the subtitle language during playback by press the SUBTITLE button.
-
Page 16: Specification
Specification Compatible disc: DVD/VCD/CD/MP3/MPEG4 Signal system: PAL/NTSC Panel size: 9 inch Picture resolution: 640x234(RGB) or 640x220(RGB) Frequency response: 20 Hz to 20 kHz Video output: 1 Vp-p/75 Ohm, unbalanced Audio output: 1.4Vrms/10kOhm Audio S/N: Better than 80 dB Dynamic range: Better than 85 dB USB: support USB 1.1 Laser: Semiconductor Laser, Wave Length: 650 nm/795 nm Power source: DC 9-12V... - Page 17 Rechargeable Battery Use The unit utilizes long-life Li polymer battery for portable power supply. The battery has no Memory Effect and thus can be recharged safely regardless of whether the battery is fully or partially discharged. It is enough to recharge no longer than 4H each time.
-
Page 18: Troubleshooting
Troubleshooting PROBLEM SOLUTION Make sure the machine is connected properly. No sound or Make sure all cables are securely inserted into distorted sound the appropriate jacks. You can't advance through the opening credits Can't advance and warning information that appears at the through a movie beginning of movies because the disc is programmed to prohibit that action.
