03

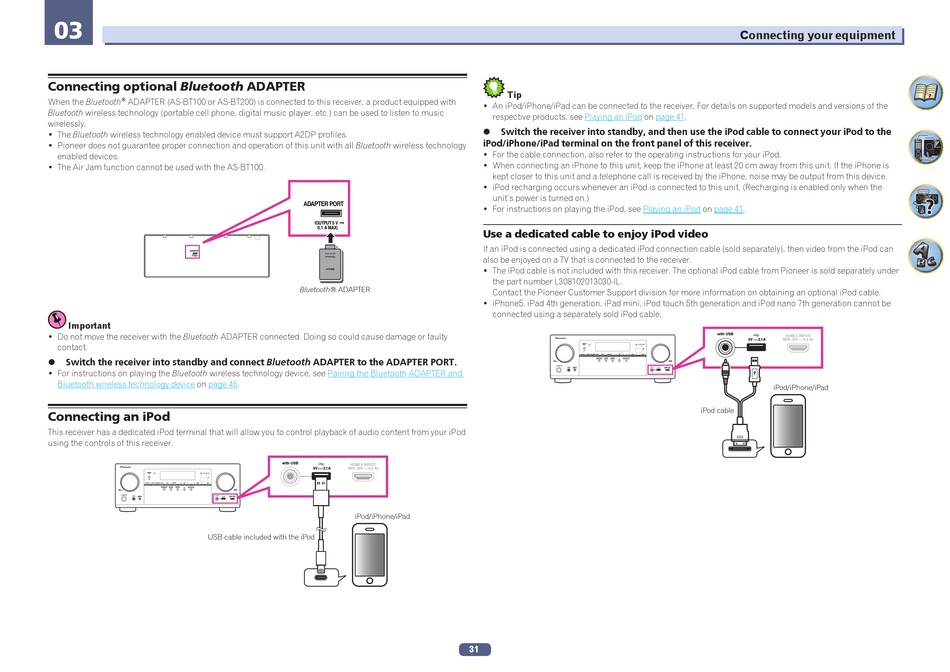

Connecting optional Bluetooth ADAPTER

When the Bluetooth ® ADAPTER (AS-BT100 or AS-BT200) is connected to this receiver, a product equipped with
Bluetooth wireless technology (portable cell phone, digital music player, etc.) can be used to listen to music
wirelessly.
! The Bluetooth wireless technology enabled device must support A2DP profiles.
! Pioneer does not guarantee proper connection and operation of this unit with all Bluetooth wireless technology
enabled devices.
! The Air Jam function cannot be used with the AS-BT100.
OUTPUT 5 V (
0.1 A MAX )
Important
! Do not move the receiver with the Bluetooth ADAPTER connected. Doing so could cause damage or faulty
contact.
%
Switch the receiver into standby and connect Bluetooth ADAPTER to the ADAPTER PORT.
! For instructions on playing the Bluetooth wireless technology device, see
Bluetooth wireless technology device on page

Connecting an iPod

This receiver has a dedicated iPod terminal that will allow you to control playback of audio content from your iPod
using the controls of this receiver.
ADVANCED
MCACC FL OFF HDMI iPod iPhone iPad
SPEAKERS CONTROL – MULTI-ZONE – ON / OFF BAND TUNER EDIT TUNE PRESET ENTER
AUTO SURR/ALC/ STANDARD ADVANCED iPod iPhone iPad
STREAM DIRECT SURROUND SURROUND ECO DIRECT CONTROL
INPUT SELECTOR
STANDBY / ON
PHONES MCACC with USB
SETUP MIC 5V 2.1 A
USB cable included with the iPod
ADAPTER PORT
( OUTPUT 5 V
0.1 A MAX )
Bluetooth® ADAPTER
Pairing the Bluetooth ADAPTER and
45.
with USB
HDMI 5 INPUT/
5V 2.1 A MHL (5V 0.9 A)
MASTER VOLUME
HDMI 5 INPUT/
MHL (5V 0.9 A)
iPod/iPhone/iPad
Tip
! An iPod/iPhone/iPad can be connected to the receiver. For details on supported models and versions of the
respective products, see Playing an iPod on
%
Switch the receiver into standby, and then use the iPod cable to connect your iPod to the
iPod/iPhone/iPad terminal on the front panel of this receiver.
! For the cable connection, also refer to the operating instructions for your iPod.
! When connecting an iPhone to this unit, keep the iPhone at least 20 cm away from this unit. If the iPhone is
kept closer to this unit and a telephone call is received by the iPhone, noise may be output from this device.
! iPod recharging occurs whenever an iPod is connected to this unit. (Recharging is enabled only when the
unit's power is turned on.)
! For instructions on playing the iPod, see Playing an iPod
Use a dedicated cable to enjoy iPod video
If an iPod is connected using a dedicated iPod connection cable (sold separately), then video from the iPod can
also be enjoyed on a TV that is connected to the receiver.
! The iPod cable is not included with this receiver. The optional iPod cable from Pioneer is sold separately under
the part number L308102013030-IL.
Contact the Pioneer Customer Support division for more information on obtaining an optional iPod cable.
! iPhone5, iPad 4th generation, iPad mini, iPod touch 5th generation and iPod nano 7th generation cannot be
connected using a separately sold iPod cable.
ADVANCED
MCACC FL OFF HDMI iPod iPhone iPad
SPEAKERS CONTROL – MULTI-ZONE – ON / OFF BAND TUNER EDIT TUNE PRESET ENTER
AUTO SURR/ALC/ STANDARD ADVANCED iPod iPhone iPad
STREAM DIRECT SURROUND SURROUND ECO DIRECT CONTROL
INPUT
SELECTOR
STANDBY / ON
PHONES MCACC
SETUP MIC
31
Connecting your equipment
page 41.
on page 41.
with USB
HDMI 5 INPUT/
5V 2.1 A MHL (5V 0.9 A)
MASTER
VOLUME
with USB HDMI 5 INPUT/
5V 2.1 A MHL (5V 0.9 A)
iPod/iPhone/iPad
iPod cable
