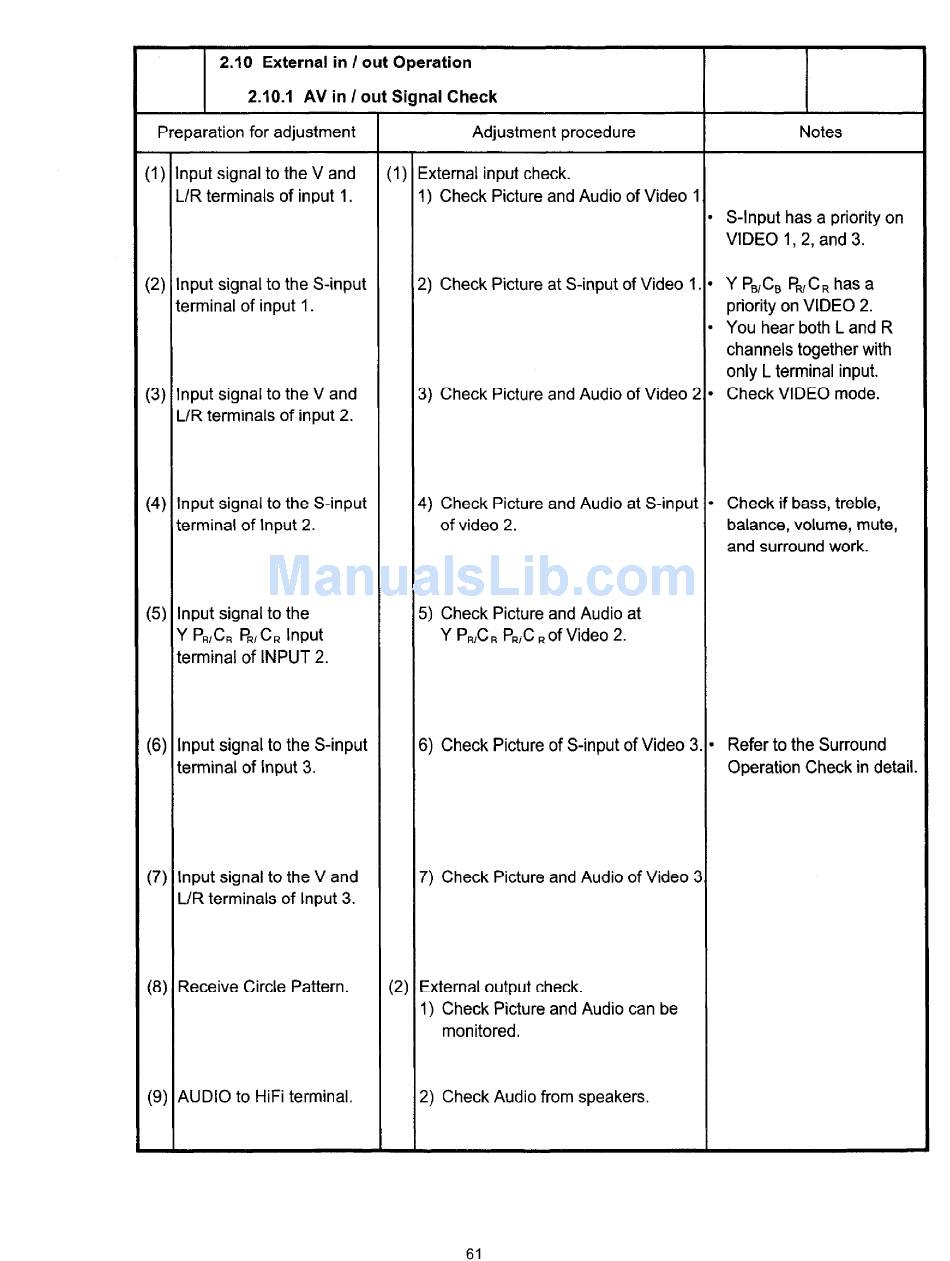

2.10 External in I out Operation
2.10.1 AV in / out Signal Check
Preparation for adjustment
Adjustment procedure
Notes
('I) Input signal to the V and
(1) External input check.
L/R terminals of input 1.
-I) Check Picture and Audio of Video 1.
. S-Input has a priority on
VIDEO I, 2, and 3.
(2) Input signal to the S-input
2) Check Picture at S-input of Video I. . Y PBICB PWC, has a
terminal of input 1.
priority on VIDEO 2.
9 You hear both 1 and R
channels together with
only L terminal input.
(3) Input signal to the V and
3) Check Picture and Audio of Video 2 9 Check VIDEO mode.
L/R terminals of input 2.
(4) Input signal to the S-input
terminal of Input 2.
4) Check Picture and Audio at S-input
l
Check if bass, treble,
of video 2.
balance, volume, mute,
and surround work.
(5) Input signal to the
Y P&
PWCR Input
terminal of INPUT 2.
5) Check Picture and Audio at
Y P,C B P,C R of Video 2.
(6) Input signal to the S-input
6) Check Picture of S-input of Video 3. 9 Refer to the Surround
terminal of Input 3.
Operation Check in detail.
(7) Input signal to the V and
L/R terminals of Input 3.
7) Check Picture and Audio of Video 3
(8) Receive Circle Pattern.
(2) External output check.
1) Check Picture and Audio can be
monitored.
(9) AUDIO to HiFi terminal.
2) Check Audio from speakers.
61
