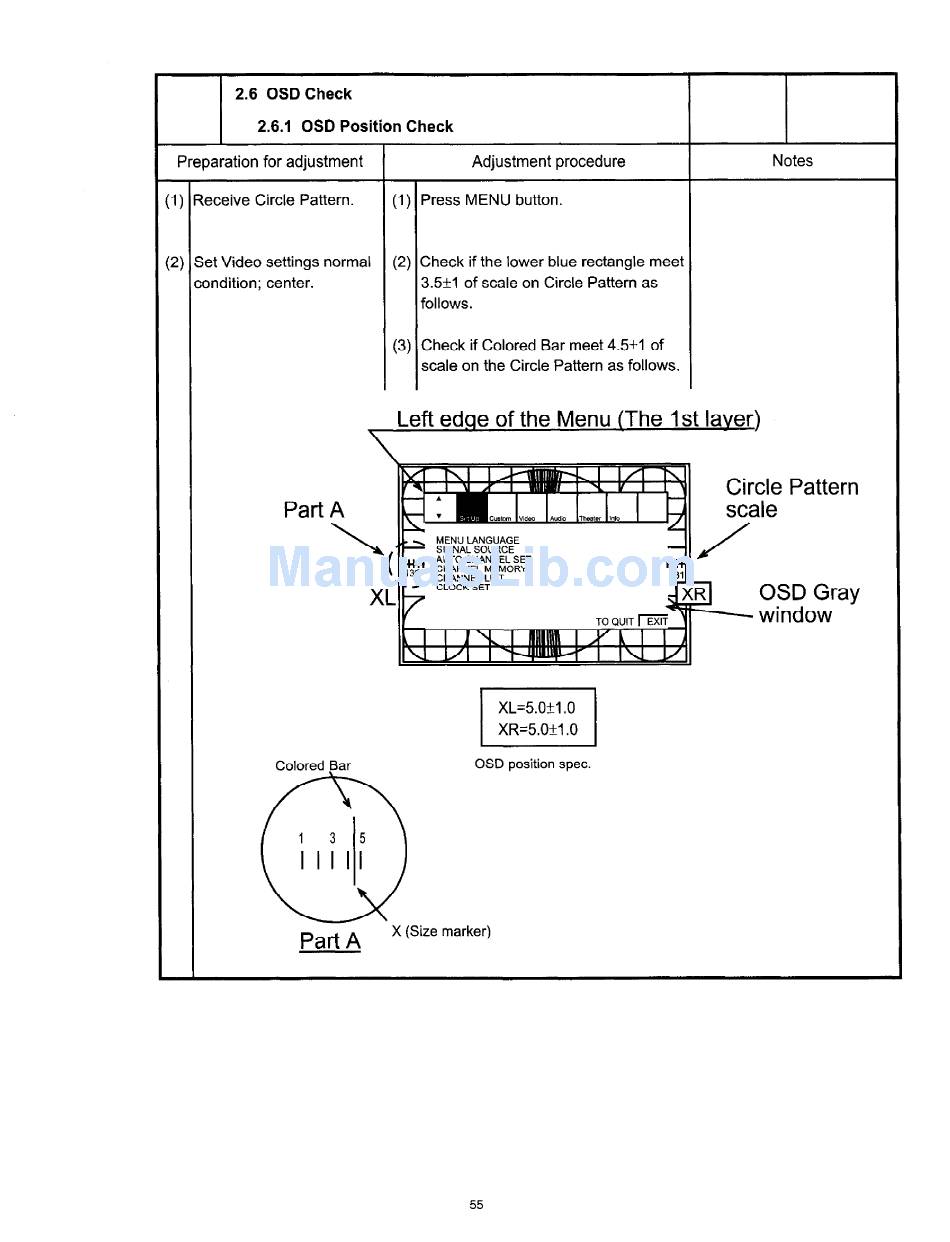

2.6 OSD Check
2.6.1 OSD Position Check
Preparation for adjustment Adjustment procedure
(1) Receive Circle Pattern.
(1) Press MENU button.
(2) Set Video settings normal
(2) Check if the lower blue rectangle meet
condition; center.
3.W of scale on Circle Pattern as
follows.
Notes
(3) Check if Colored Bar meet 4.5H of
I I
scale on the Circle Pattern as follows.
I
MENU LANGUAGE
SIGNAL SOURCE
AUTO CHANNEL SET
CHANNEL MEMORY
Colored Bar
XL=5.0+1 .o
El
XR=5.0+1 .O
OSD position spec.
Part A
X (Size marker)
55
