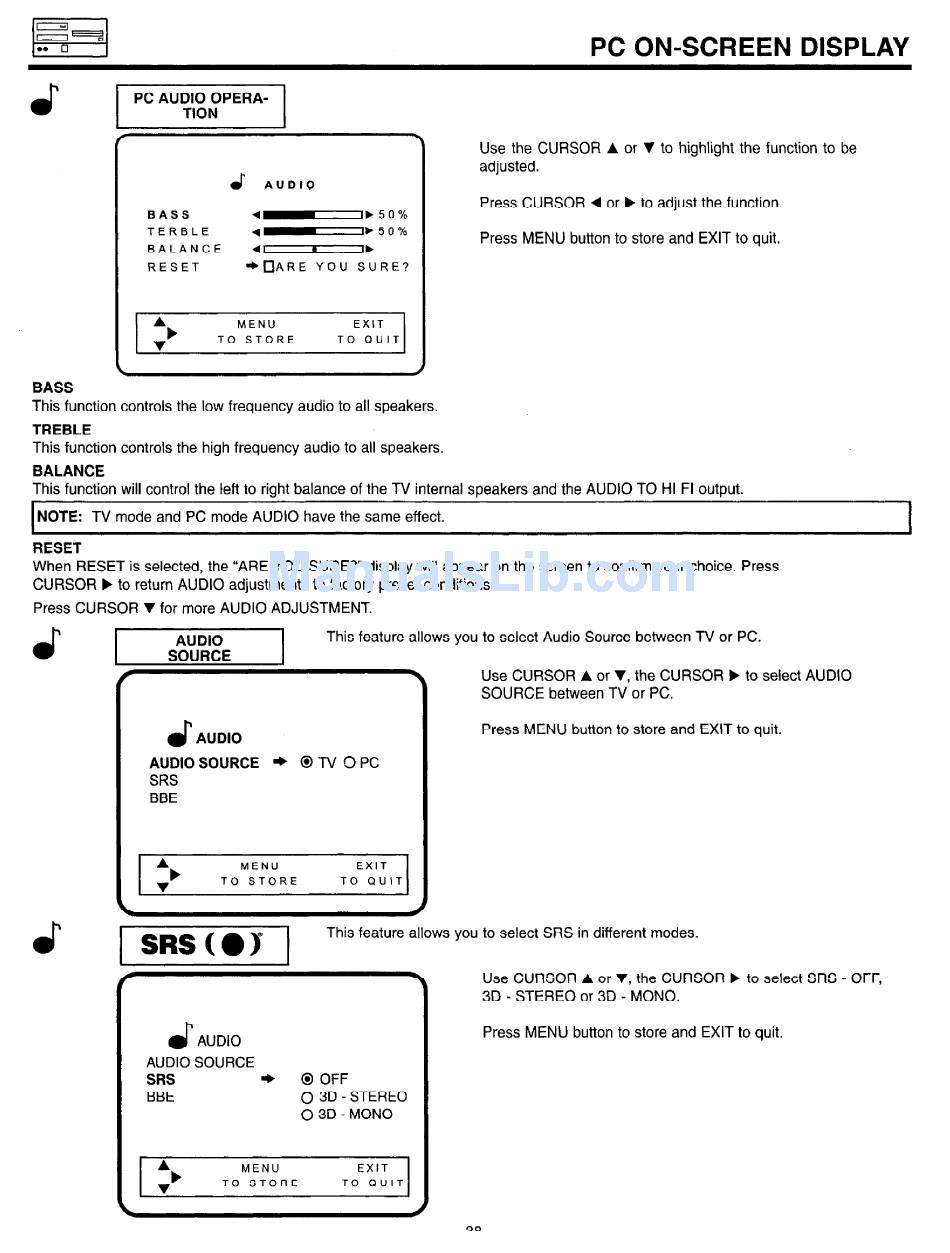

Hitachi 36SDX88B Service Manual page 38

PC ON-SCREEN DISPLAY
s
I
PC AUDIO OPERA-
TlON
I
BASS d-1,50%
TERBLE q-1,50%
BALANCE 4-1
RESET +UARE YOU SURE?
A
MENU EXIT
TO STORE
TO QUIT
Use the CURSOR A or v to highlight the function to be
adjusted.
Press CURSOR 4 or b to adjust the function.
Press MENU button to store and EXIT to quit.
BASS
This function controls the low frequency audio to all speakers.
TREBLE
This function controls the high frequency audio to all speakers.
BALANCE
This function will control the left to right balance of the TV internal speakers and the AUDlO TO HI FI output.
I
NOTE: TV mode and PC mode AUDlO have the same effect.
I
RESET
When RESET is selected, the "ARE YOU SURE?" display will appear on the screen to confirm your choice. Press
CURSOR b to return AUDIO adjustments to factory preset conditions.
Press CURSOR v for more AUDIO ADJUSTMENT.
J' I
This feature allows you to select Audio Source between TV or PC.
J'
AUDIO
AUDIO SOURCE * 0 TV 0 PC
SRS
BBE
MENU EXIT
TO STORE
TO QUlT
b 4
Use CURSOR A or 7, the CURSOR b to select AUDIO
SOURCE between TV or PC.
Press MENU button to store and EXIT to quit.
-1
This feature allows you to select SRS in different modes.
AUDIO
AUDIO SOURCE
SRS
*
0 OFF
BBE
0 3D - STEREO
0 3D - MONO
MENU EXIT
TO STORE
TO QUIT
d
Use CURSOR A or v, the CURSOR b to select SRS - OFF,
3D - STEREO or 3D - MONO.
Press MENU button to store and EXIT to quit.
38
