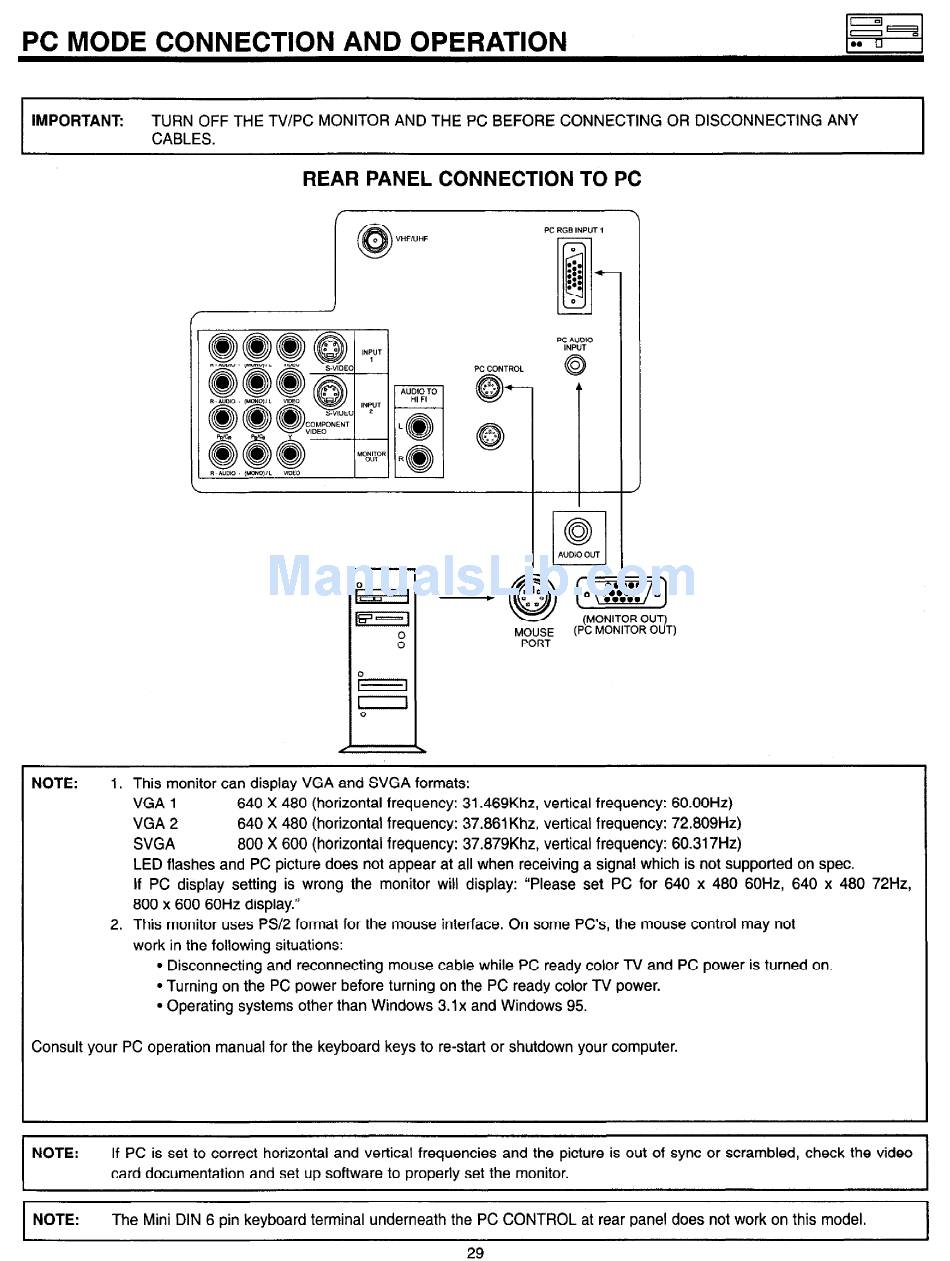

PC MODE CONNECTION AND OPERATION
IMPORTANT: TURN OFF THE TV/PC MONITOR AND THE PC BEFORE CONNECTING OR DISCONNECTING ANY
CABLES.
REAR PANEL CONNECTION TO PC
VHF/UHF
INPUT
1
INPUT
2
PC CONTROL
PC RGB INPUT 1
MOUSE (PC MONITOR OUT)
PORT
NOTE: 1. This monitor can display VGA and SVGA formats:
VGA 1 640 X 480 (horizontal frequency: 31.469Khz, vertical frequency: 60.00Hz)
VGA 2 640 X 480 (horizontal frequency: 37.861 Khz, vertical frequency: 72.809Hz)
SVGA 800 X 600 (horizontal frequency: 37.879Khz, vertical frequency: 60.317Hz)
LED flashes and PC picture does not appear at all when receiving a signal which is not supported on spec.
If PC display setting is wrong the monitor will display: "Please set PC for 640 x 480 60Hz, 640 x 480 72Hz,
800 x 600 6OHz display."
2. This monitor uses PS/2 format for the mouse interface. On some PC's, the mouse control may not
work in the following situations:
l
Disconnecting and reconnecting mouse cable while PC ready color TV and PC power is turned on.
. Turning on the PC power before turning on the PC ready color TV power.
l
Operating systems other than Windows 3.1x and Windows 95.
Consult your PC operation manual for the keyboard keys to restart or shutdown your computer.
I
NOTE: If PC is set to correct horizontal and vertical frequencies and the picture is out of sync or scrambled, check the video
card documentation and set up software to properly set the monitor.
I
I
NOTE: The Mini DIN 6 pin keyboard terminal underneath the PC CONTROL at rear panel does not work on this model.
I
29
