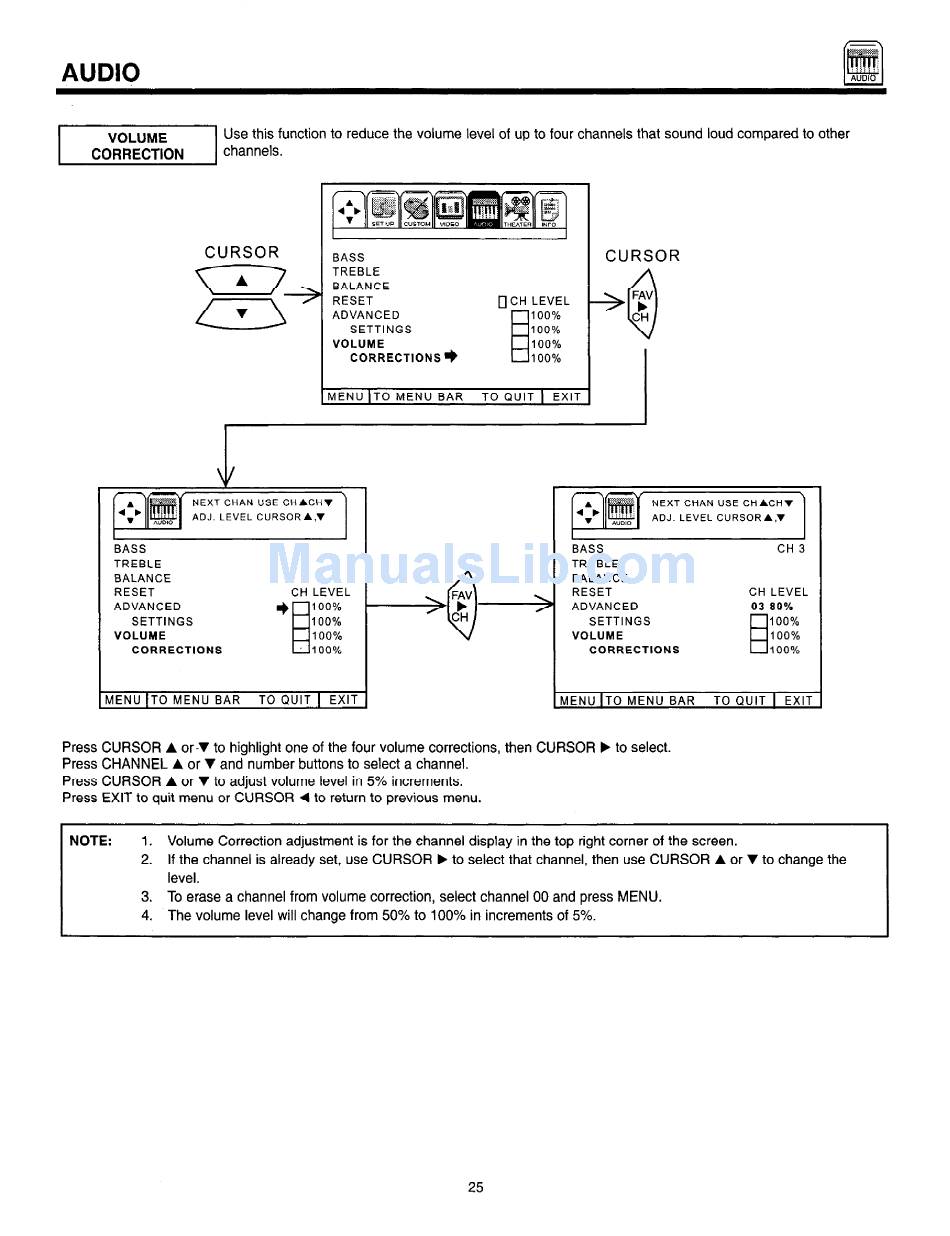

Hitachi 36SDX88B Service Manual page 25

AUDIO
Use this function to reduce the volume level of up to four channels that sound loud compared to other
II channels.
CURSOR
I ' ' I
BASS
TREBLE
BALANCE
RESET OCH LEVEL
ADVANCED 100%
SETTINGS 100%
VOLUME 100%
CORRECTIONS +
100%
MENU ITO MENU BAR
I
BASS
TREBLE
BALANCE
RESET CH LEVEL
ADVANCED
+
SETTINGS
VOLUME
CORRECTIONS
IMENU ~TO MENU BAR ~0 QUIT I EXIT I
MENU iTO MENU BAR
TO QUIT 1 EXIT
BASS CH 3
TREBLE
BALANCE
RESET CH LEVEL
ADVANCED 03 80%
SETTINGS 100%
VOLUME 100%
CORRECTIONS
100%
Press CURSOR A or-v to highlight one of the four volume corrections, then CURSOR F to select.
Press CHANNEL A or v and number buttons to select a channel.
Press CURSOR A or v to adjust volume level in 5% increments.
Press EXIT to quit menu or CURSOR 4 to return to previous menu.
NOTE: 1. Volume Correction adjustment is for the channel display in the top right corner of the screen.
2. If the channel is already set, use CURSOR b to select that channel, then use CURSOR A or v to change the
level.
3. To erase a channel from volume correction, select channel 00 and press MENU.
4. The volume level will change from 50% to 100% in increments of 5%.
25
