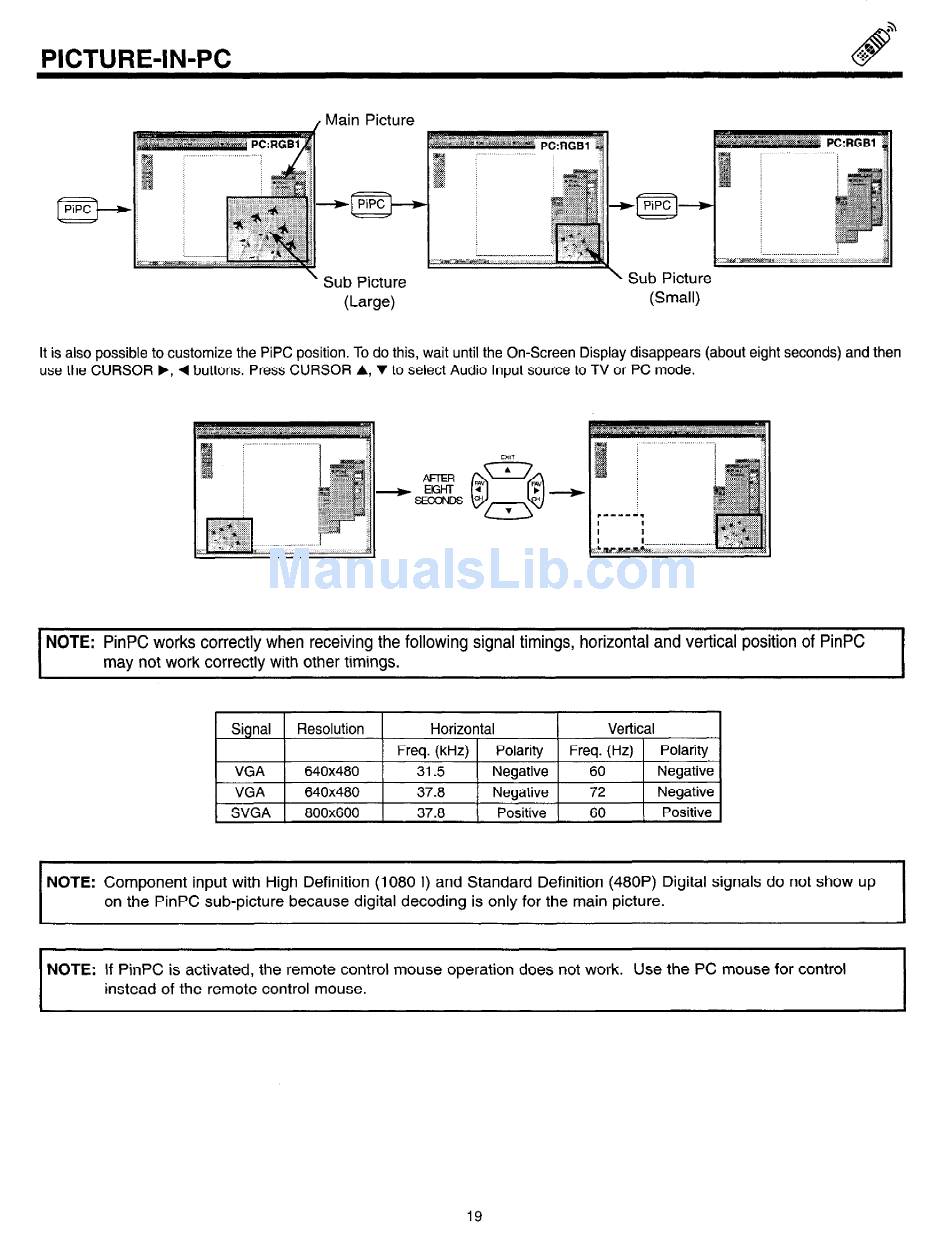

PICTURE-IN-PC
/ Main Picture
' Sub Picture
u-arw)
\ Sub Picture
(Small)
It is also possible to customize the PiPC position. To do this, wait until the On-Screen Display disappears (about eight seconds) and then
use the CURSOR ,, 4 buttons. Press CURSOR A, 7 to select Audio Input source to TV or PC mode.
EXIT
I
NOTE: PinPC works correctly when receiving the following signal timings, horizontal and vertical position of PinPC
may not work correctly with other timings.
I
Signal Resolution Horizontal Vertical
Freq. (kHz) Polarity Freq. (Hz)
Polarity
VGA 640x480 1 31.5 Negative 60
Negative
VGA 640x480
SVGA 800x600
37.6 f Negative 72
37.6 1 Positive 60
Negative
Positive
NOTE: Component input with High Definition (1080 1) and Standard Definition (480P) Digital signals do not show up
on the PinPC sub-picture because digital decoding is only for the main picture.
I
I
NOTE: If PinPC is activated, the remote control mouse operation does not work. Use the PC mouse for control
instead of the remote control mouse.
