Hitachi 36SDX88B Service Manual page 154

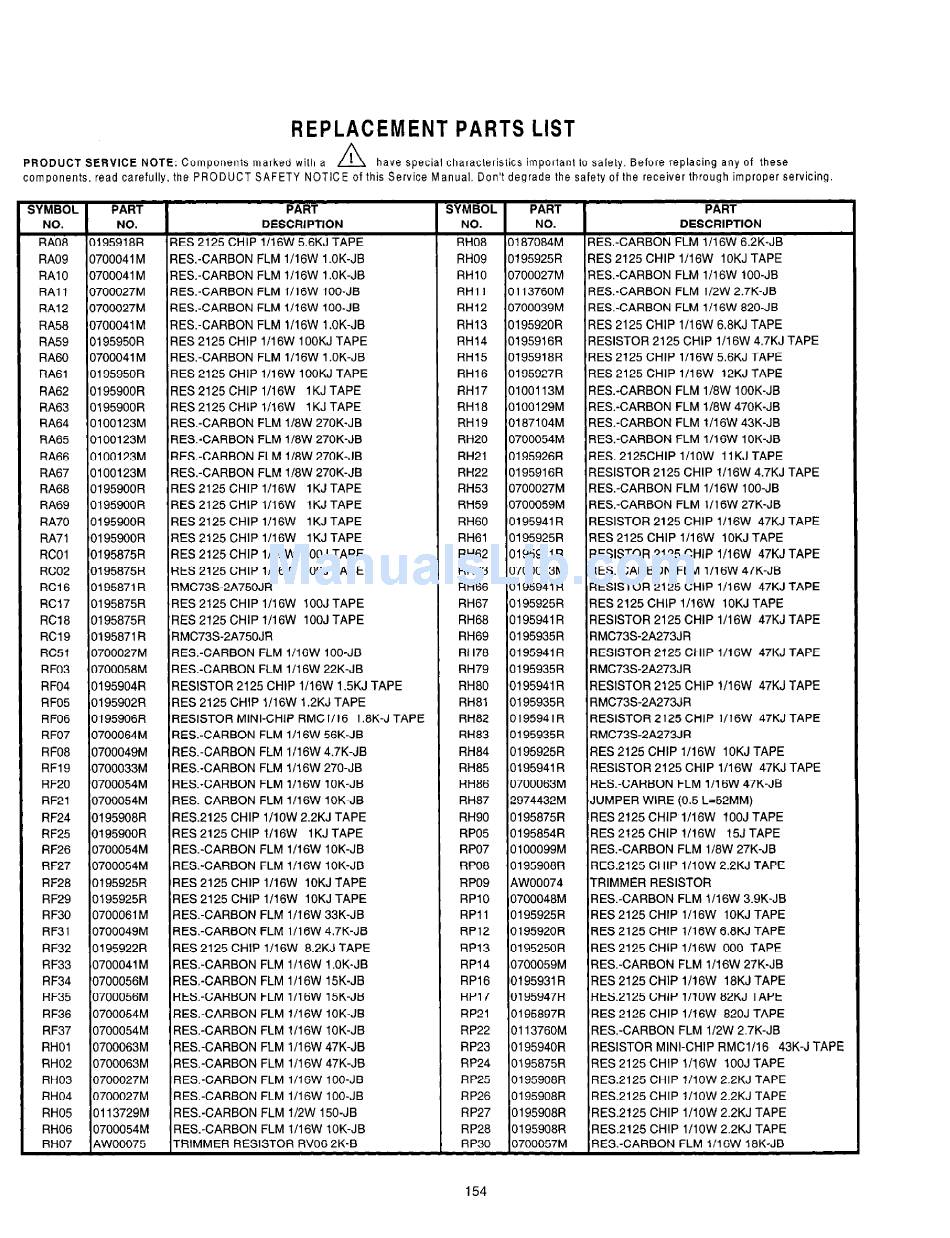

REPLACEMENT PARTS LIST
PRODUCT SERVICE NOTE: Components marked with a A ! have special characteristics important to safety. Before replacing any of these
components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART PART SYMBOL PART PART
NO. NO. DESCRIPTION NO. NO.
DESCRIPTION
RAOS 0195918R RES 2125 CHIP 1/16W 5.6KJ TAPE RHO8
0187084M RES.-CARBON FLM l/l 6W 6.2K-JB
RA09 0700041 M RES.-CARBON FLM 1/16W 1 .OK-JB RHO9
0195925R RES 2125 CHIP 1/16W 1OKJ TAPE
RAlO
0700041 M RES-CARBON FLM l/16W 1 .OK-JB RHlO 0700027M RES.-CARBON FLM l/l 6W IOO-JB
RAl 1 0700027M RES-CARBON FLM 1/16W lOO-JB RHlt 0113760M RES.-CARBON FLM 1/2W 2.7K-JB
RA12 0700027M RES.-CARBON FLM t/t6W t 00-JB
RH12 0700039M RES.-CARBON FLM l/t 6W 820-JB
RA58 0700041 M
RES.-CARBON FLM l/t 6W 1 .OK-JB RH13 0195920R RES 2125 CHIP 1/16W 6.8KJ TAPE
RA59 0195950R
RES 2125 CHIP 1/16W 1OOKJ TAPE RHt4 0195916R RESISTOR 2125 CHIP l/l 6W 4.7KJ TAPE
RA60 0700041 M RES.-CARBON FLM 1/16W t .OK-JB RH15 0195918R RES 2125 CHIP 1/16W 5.6KJ TAPE
RA6t 0195950R RES 2125 CHIP 1/16W 100KJ TAPE RH16 0195927R RES 2125 CHIP l/l 6W 12KJ TAPE
RA62 0195900R RES 2125 CHIP 1/16W 1 KJ TAPE
RH17 0100113M RES.-CARBON FLM 1/8W lOOK-JB
RA63 0195900R RES 2125 CHIP l/t6W 1 KJ TAPE
RH18 0100129M RES.-CARBON FLM 1/8W 470K-JB
RA64 0100123M RES.-CARBON FLM 1/8W 270K-JB RH19 0187104M RES.-CARBON FLM 1 /16W 43K-JB
RA65 OlOOt23M RES.-CARBON FLM 1/8W 270K-JB RH20 0700054M RES.-CARBON FLM 1/16W IOK-JB
RA66 0100123M RES-CARBON FLM 1/8W 27OK-JB RH21 0195926R
RES. 2125CHIP l/lOW 11 KJ TAPE
RA67 OtOOt23M
RES.-CARBON FLM 1/8W 270K-JB RH22 0195916R RESISTOR 2125 CHIP 1/16W 4.7KJ TAPE
RA68 0195900R RES 2125 CHIP 1/16W 1KJ TAPE RH53 0700027M RES.-CARBON FLM 1/16W lOO-JB
RA69 0 t 95900R RES 2125 CHIP l/t6W 1KJ TAPE RH59 0700059M
RES.-CARBON FLM l/l 6W 27K-JB
RA70
0195900R RES 2125 CHIP 1/16W 1KJ TAPE RH60 0195941 R RESISTOR 2125 CHIP 1/16W 47KJ TAPE
RA71 0195900R RES 2125 CHIP t/16W 1KJ TAPE RH61 0195925R RES 2125 CHIP 1/16W 1OKJ TAPE
RCOl 0195875R
RES 2125 CHIP t/16W 1OOJ TAPE RH62 019594iR RESISTOR 2125 CHIP t/16W 47KJ TAPE
RC02 0 t 95875R
RES 2125 CHIP l/l 6W 1 OOJ TAPE RH63 0700063M RES.-CARBON FLM l/l 6W 47K-JB
RCI 6 0195871 R RMC73S-2A750JR RH66 0195941 R RESISTOR 2125 CHIP l/l 6W 47KJ TAPE
RCl7 0195875R RES 2125 CHIP 1/16W tOOJ TAPE RH67 0195925R RES 2125 CHIP 1/16W IOKJ TAPE
RCl8 0195875R
RES 2125 CHIP 1/16W 1OOJ TAPE RH68 0195941 R RESISTOR 2125 CHIP l/l 6W 47KJ TAPE
RC19 0195871 R RMC73S2A750JR
RH69 0195935R RMC73S-2A273JR
RC51 0700027M RES.-CARBON FLM 1/16W lOO-JB RH78 0195941 R RESISTOR 2125 CHIP 1/16W 47KJ TAPE
RF03 0700058M RES.-CARBON FLM l/l 6W 22K-JB RH79 0195935R RMC73S-2A273JR
RF04 0 195904R RESISTOR 2125 CHlP 1/16W 1.5KJ TAPE RH80 0195941 R RESISTOR 2125 CHIP ?/t6W 47KJ TAPE
RF05 0195902R
RES 2125 CHIP l/lSW 1.2KJ TAPE RH8t 0195935R RMC73S-2A273JR
RF06 0195906R RESISTOR MINI-CHIP RMCl/lG 1.8K-J TAPE RH82 0195941 R RESISTOR 2125 CHIP 1/16W 47KJ TAPE
RF07 0700064M RES.-CARBON FLM 1 /16W 56K-JB RH83 0195935R RMC73S-2A273JR
RF08 0700049M RES.-CARBON FLM l/l 6W 4.7K-JB RH84 0195925R
RES 2125 CHIP t/16W 10KJ TAPE
RF19
0700033M
RES.-CARBON FLM t/t6W 270-JB RH85 0 t 95941 R RESISTOR 2125 CHIP 1/16W 47KJ TAPE
RF20 0700054M RES.-CARBON FLM l/t6W lOK-JB RH86 0700063M RES.-CARBON FLM l/l 6W 47K-JB
RF21 0700054M RES-CARBON FLM 1 /16W 1 OK-JB RH87 2974432M JUMPER WIRE (0.5 L=52MM)
RF24 0195908R
RES.2125 CHIP l/low 2.2KJ TAPE RH90 0195875R RES 2125 CHIP 1/16W tOOJ TAPE
RF25 0195900R
RES 2125 CHIP t/l6W t KJ TAPE RP05 0195854R RES 2125 CHIP 1/16W l5J TAPE
RF26 0700054M RES-CARBON FLM 1/16W lOK-JB RP07 0100099M RES.-CARBON FLM 1/8W 27K-JB
RF27 0700054M RES.-CARBON FLM t/l 6W t OK-JB RP08 0 195908R RES.2125 CHIP l/lOW 2.2KJ TAPE
RF28 0195925R RES 2125 CHIP 1/16W 1OKJ TAPE RP09 AW00074 TRIMMER RESISTOR
RF29 0195925R RES 2125 CHIP l/t6W 1OKJ TAPE RPtO 0700048M RES.-CARBON FLM t/l 6W 3.9K-JB
RF30 0700061 M RES.-CARBON FLM l/l 6W 33K-JB RPt 1 0195925R RES 2125 CHfP 1/16W 1OKJ TAPE
RF31 0700049M
RES.-CARBON FLM l/l 6W 4.7K-JB RP12 0195920R RES 2125 CHIP l/l 6W 6.8KJ TAPE
RF32 0 t 95922R RES 2125 CHlP l/l 6W 8.2KJ TAPE RP13 0195250R RES 2125 CHIP 1/16W 000 TAPE
RF33 0700041 M RES.-CARBON FLM l/t6W t .OK-JB RP14 0700059M RES-CARBON FLM 1/16W 27K-JB
RF34 0700056M RES-CARBON FLM l/l 6W 15K-JB RP16 0195931R RES 2125 CHIP 1/16W 18KJ TAPE
RF35 0700056M
RES-CARBON FLM 1/16W 15K-JB RP17 0195947R RES.2125 CHIP l/tOW 82KJ TAPE
RF36 0700054M RES.-CARBON FLM 1/16W lOK-JB RP21 0 195897R RES 2125 CHIP l/l6W 820J TAPE
RF37 0700054M RES.-CARBON FLM t/l 6W lOK-JB RP22 0 113760M RES.-CARBON FLM 1/2W 2.7K-JB
RHO1 0700063M RES-CARBON FLM l/l 6W 47K-JB RP23 0195940R RESISTOR MINI-CHtP RMCl/lG 43K-J TAPE
RHO2 0700063M RES.-CARBON FLM 1/16W 47K-JB
RP24
0195875R RES 2125 CHIP t/16W tOOJ TAPE
RHO3 0700027M RES.-CARBON FLM 1/16W lOO-JB RP25 0195908R RES.2125 CHIP l/lOW 2.2KJ TAPE
RHO4 0700027M RES-CARBON FLM 1/16W lOO-JB RP26 0195908R RES.2125 CHIP f/lOW 2.2KJ TAPE
RHO5 0 113729M RES.-CARBON FLM 1/2W 150-JB RP27 0195908R RES.2125 CHIP l/lOW 2.2KJ TAPE
RHO6 0700054M
RES.-CARBON FLM l/l 6W t OK-JB RP28 0195908R RES.2125 CHIP l/lOW 2.2KJ TAPE
RHO7 AW00075 TRIMMER RESISTOR RV06 2K-B RP30 0700057M RES-CARBON FLM l/t 6W t8K-JB
1.54
