Hitachi 36SDX88B Service Manual page 153

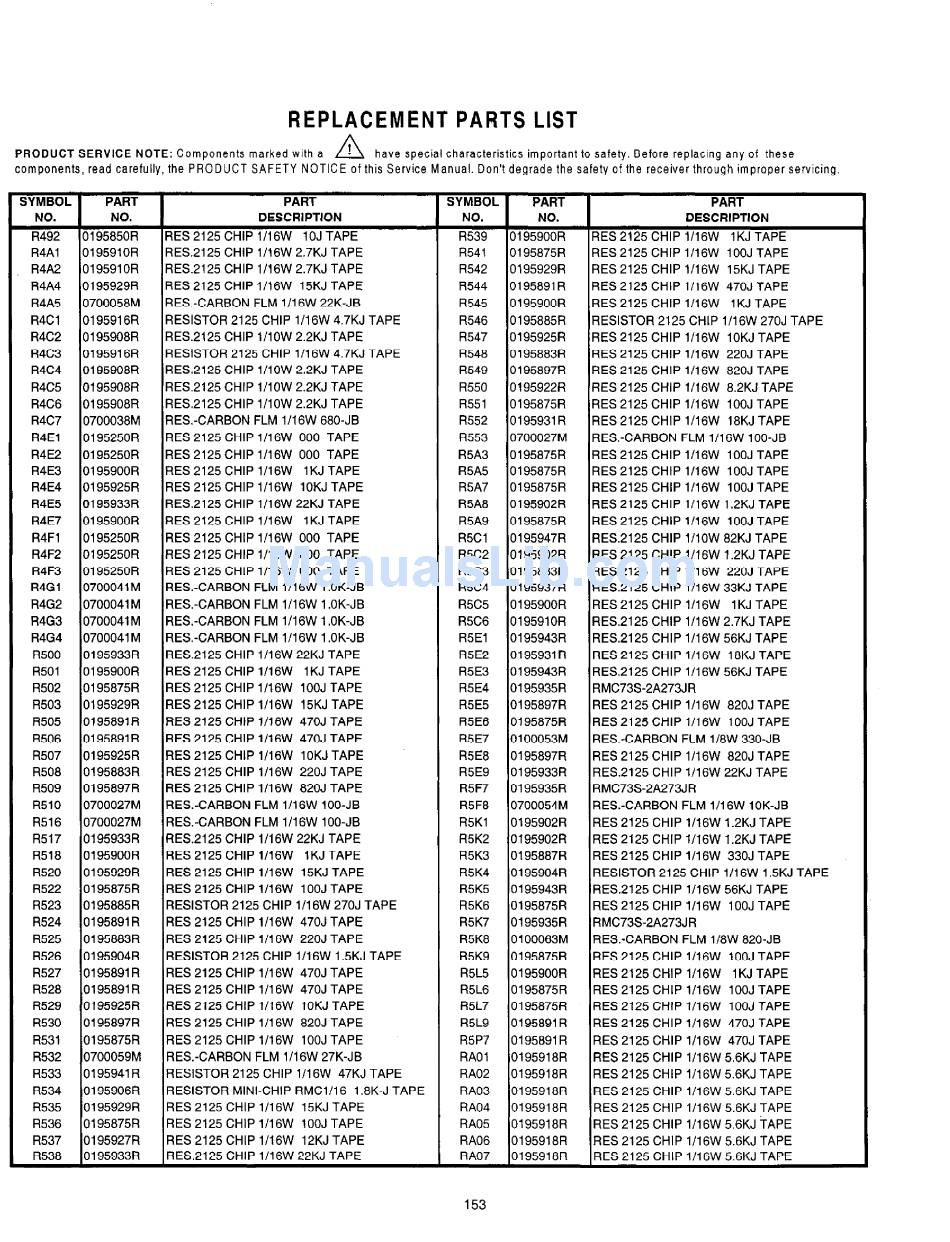

REPLACEMENT PARTS LIST
PRODUCT SERVICE NOTE: Components marked with a A ! have special characteristics important to safety. Before replacmg any of these
components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART PART SYMBOL
PART PART
NO. NO. DESCRIPTION NO. NO. DESCRIPTION
R492 0 195850R RES 2125 CHIP 1/16W 1OJ TAPE PI539 01959OOR RES 2125 CHIP 1/16W 1KJ TAPE
R4Al 0195910R RES.2125 CHIP 1/16W 2.7KJ TAPE R541 0195875R RES 2125 CHIP 1/16W IOOJ TAPE
R4A2 0195910R
RES.2125 CHIP 1/16W 2.7KJ TAPE
R542 0195929R RES 2125 CHIP 1/16W 15KJ TAPE
R4A4 0195929R RES 2125 CHIP 1/16W 15KJ TAPE R544 0195891 R
RES 2125 CHIP 1/16W 470J TAPE
R4A5 0700058M RES-CARBON FLM 1 /16W 22K-JB R545 0195900R RES 2125 CHIP 1/16W 1KJ TAPE
R4Cl 0195916R RESISTOR 2125 CHIP 1/16W 4.7KJ TAPE R546 0 195885R RESISTOR 2125 CHIP 1/16W 270J TAPE
R4C2 0 195908R RES.2f25 CHIP I/lOW 2.2KJ TAPE R547 0195925R RES 2125 CHIP 1/16W 10KJ TAPE
R4C3 0195916R RESlSTOR 2125 CHIP 1/16W 4.7KJ TAPE R548
0 195883R RES 2125 CHIP 1/16W 220J TAPE
R4C4 0195908R RES.2125 CHIP l/lOW 2.2KJ TAPE R549 0 195897R
RES 2125 CHIP 1/16W 820J TAPE
R4C5 0195908R RES.2125 CHIP I/lOW 2.2KJ TAPE R550 0 195922R RES 2125 CHIP 1/16W 8.2KJ TAPE
R4C6 0195908R RES.2125 CHIP l/lOW 2.2KJ TAPE R551 0 195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R4C7 0700038M
RES.-CARBON FLM 1/16W 680-JB R552
0195931 R RES 2125 CHIP 1/16W 18KJ TAPE
R4El 0 195250R RES 2125 CHIP l/l 6W 000 TAPE R553 0700027M RES.-CARBON FLM l/l 6W 1 00-JB
R4E2 0195250R RES 2125 CHIP l/l 6W 000 TAPE R5A3 0 195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R4E3
0195900R
RES 2125 CHIP 1/16W 1KJ TAPE
R5A5 0195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R4E4
0195925R
RES 2125 CHIP 1/16W 10KJ TAPE R5A7
0195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R4E5 0195933R RES.2125 CHIP 1/16W 22KJ TAPE R5A8 0 195902 R RES 2125 CHIP 1/16W 1.2KJ TAPE
R4E7 0195900R
RES 2125 CHIP 1/16W 1 KJ TAPE
R5A9 0195875R RES 2125 CHIP l/lSW lOOJ TAPE
R4Fl 0195250R RES 2125 CHIP 1/16W 000 TAPE R5Cl 0195947R RES.2125 CHIP l/lOW 82KJ TAPE
R4F2 0195250R RES 2125 CHIP 1/16W 000 TAPE R5C2 0195902R RES 2125 CHIP l/l 6W 1.2KJ TAPE
R4F3
0195250R RES 2125 CHIP 1/16W 000 TAPE R5C3 0195883R RES 2125 CHIP l/l 6W 220J TAPE
R4Gl 0700041 M RES.-CARBON FLM l/l 6W 1 .OK-JB R5C4 0 195937R RES.2125 CHIP l/l 6W 33KJ TAPE
R4G2 0700041 M RES.-CARBON FLM l/l 6W 1 .OK-JB R5C5 0 195900 R RES 2125 CHIP 1/16W 1 KJ TAPE
R4G3 0700041 M RES.-CARBON FLM l/l 6W 1 .OK-JB R5C6 0195910R RES.2125 CHIP l/l 6W 2.7KJ TAPE
R4G4 0700041 M RES.-CARBON FLM l/l 6W 1 .OK-JB R5El 0195943R RES.2125 CHIP 1/16W 56KJ TAPE
R500 0195933R RES.2125 CHIP 1/16W 22KJ TAPE R5E2
0195931 R RES 2125 CHIP l/l 6W 18KJ TAPE
R50I 01959OOR RES 2125 CHIP 1/16W 1KJ TAPE R5E3 0195943R RES.2125 CHIP 1/16W 56KJ TAPE
R502 0195875R RES 2125 CHIP 1/16W 1OOJ TAPE R5E4 0195935R RMC73S-2A273JR
R503 0195929R RES 2125 CHIP 1/16W 15KJ TAPE R5E5 0195897R RES 2125 CHIP l/l 6W 8203 TAPE
R505 0195891 R
RES 2125 CHIP 1/16W 470J TAPE
R5E6 0195875R RES 2125 CHIP l/l 6W 1 OOJ TAPE
R506 0195891 R RES 2125 CHIP 1/16W 470J TAPE R5E7 0100053M RES.-CARBON FLM 1/8W 330-JB
R507 0195925R RES 2125 CHtP 1/16W 1OKJ TAPE R5E8 0195897R RES 2125 CHIP 1/16W 820J TAPE
R508 0195883R RES 2125 CHIP l/l 6W 220J TAPE R5E9
0 195933R RES.2125 CHIP 1/16W 22KJ TAPE
R509 0195897R RES 2125 CHIP 1/16W 820J TAPE R5F7 0195935R RMC73S-2A273JR
R510 0700027M RES.-CARBON FLM 1/16W lOO-JB R5F8 0700054M RES-CARBON FLM 1/16W lOK-JB
R516 0700027M RES.-CARBON FLM I/l 6W 1 00-JB R5Kl
0195902R RES 2125 CHIP 1/16W 1.2KJ TAPE
R517 0195933R RES.2125 CHIP 1/16W 22KJ TAPE R5K2
0 195902R RES 2125 CHIP l/16W 1.2KJ TAPE
R518 0195900R RES 2125 CHIP 1/16W IKJ TAPE R5K3 0195887R RES 2125 CHIP 1/16W 330J TAPE
R520 0195929R RES 2125 CHIP 1/16W 15KJ TAPE R5K4 0195904R RESISTOR 2125 CHIP 1/16W 1.5KJ TAPE
R522 0195875R RES 2125 CHIP 1/16W IOOJ TAPE R5K5
0195943R RES.2125 CHIP 1/16W 56KJ TAPE
R523 0195885R RESISTOR 2125 CHIP l/l 6W 2703 TAPE R5K6 0195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R524 0195891 R RES 2125 CHIP 1/16W 470J TAPE R5K7 0195935R RMC73S-2A273JR
R525
0195883R
RES 2125 CHIP l/l 6W 220J TAPE
R5K8 0100063M RES.-CARBON FLM 1/8W 820-JB
R526
0195904R RESISTOR 2125 CHIP 1/16W 1.5KJ TAPE
R5K9 0195875R RES 2125 CHIP 1/16W tOOJ TAPE
R527 0195891 R RES 2125 CHIP l/l 6W 470J TAPE R5L5 0195900R RES 2125 CHIP 1/16W 1KJ TAPE
R528 0195891 R RES 2125 CHIP l/l 6W 470J TAPE R5L6 0 195875 R RES 2125 CHtP 1/16W 1OOJ TAPE
R529 0195925R RES 2125 CHIP 1/16W 1OKJ TAPE R5L7
0 195875R RES 2125 CHIP 1/16W 1OOJ TAPE
R530 0195897R RES 2125 CHIP l/l 6W 820J TAPE R5L9 0195891 R RES 2125 CHIP 1/16W 470J TAPE
R531 0195875R RES 2125 CHIP 1/16W 1OOJ TAPE R5P7 0195891 R RES 2125 CHIP l/l 6W 470J TAPE
R532 0700059M RES-CARBON FLM l/l 6W 27K-JB RAOl 0195918R
RES 2125 CHIP l/l 6W 5.6KJ TAPE
R533 0195941 R RESlSTOR 2125 CHIP l/l 6W 47KJ TAPE RA02 0195918R RES 2125 CHIP l/l 6W 5.6KJ TAPE
R534 0195906R RESISTOR MINI-CHIP RMClIl6 1.8K-J TAPE RA03 0195918R RES 2125 CHIP l/l 6W 5.6KJ TAPE
R535
0195929R RES 2125 CHIP 1/16W 15KJ TAPE RA04
0195918R RES 2125 CHIP l/l 6W 5.6KJ TAPE
R536 0195875R RES 2125 CHIP 1/16W 1OOJ TAPE RA05 0195918R RES 2125 CHIP l/l 6W 5.6KJ iAPE
R537 0195927R RES 2125 CHIP l/l6W 12KJ TAPE RA06 0195918R RES 2125 CHIP l/l 6W 5.6KJ TAPE
R538 0195933R RES.2125 CHIP 1/16W 22KJ TAPE RA07
0195918R RES 2125 CHIP l/l 6W 5.6KJ TAPE
