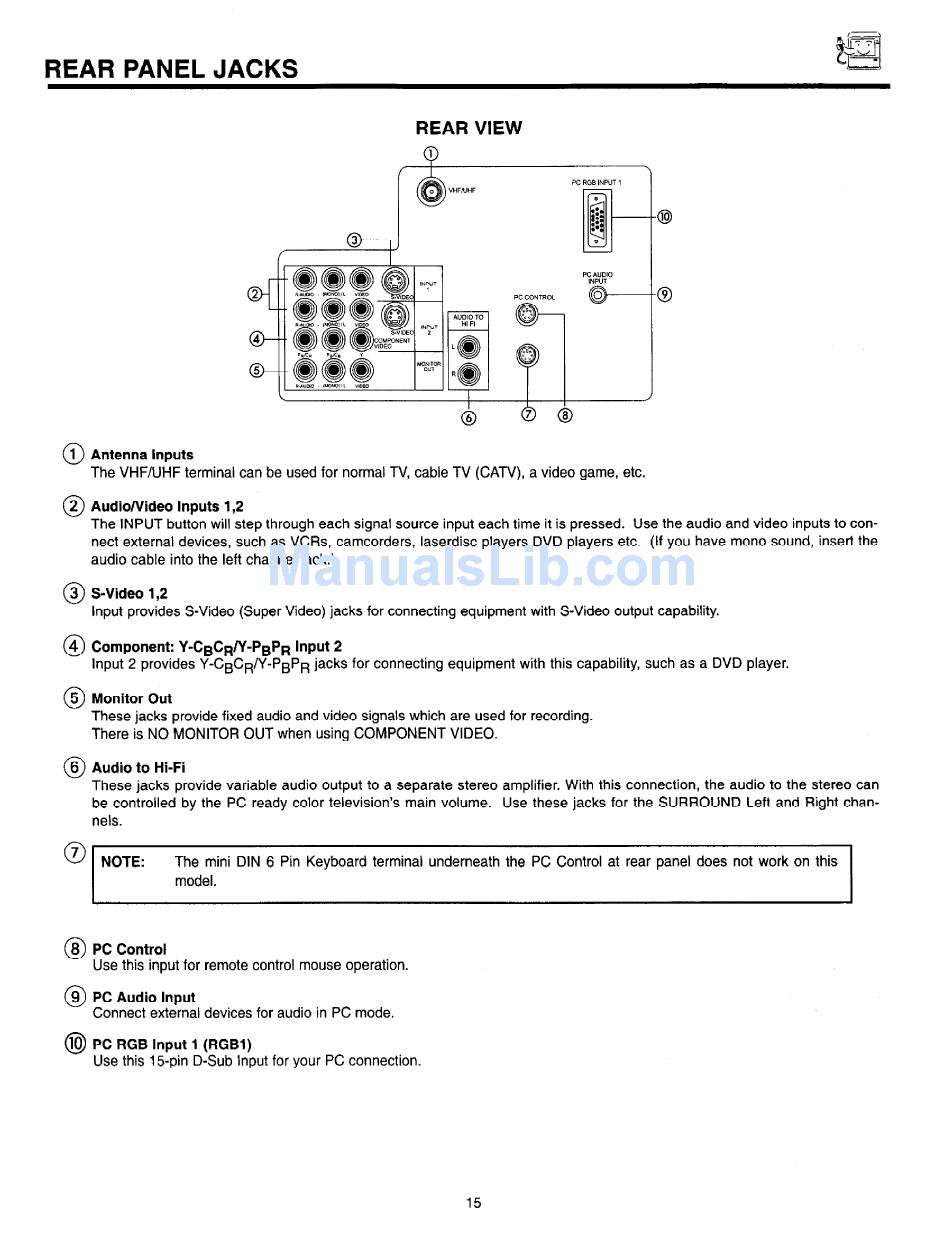

REAR PANEL JACKS
LA
*hT
REAR VIEW
0
PC RGB INPUT 1
PC AUDIO
INPUT
0
1 Antenna Inputs
The VHF/UHF terminal can be used for normal TV, cable TV (CATV), a video game, etc.
0
2 Audio/Video Inputs 1,2
The INPUT button will step through each signal source input each time it is pressed. Use the audio and video inputs to con-
nect external devices, such as VCRs, camcorders, laserdisc players,DVD players etc. (tf you have mono sound, insert the
audio cable into the left channel jack.)
0
3 S-Video 1,2
Input provides S-Video (Super Video) jacks for connecting equipment with S-Video output capability.
@ Component: Y-CBCRPI-PBPR Input 2
Input 2 provides Y-CBC#-PBPR jacks for connecting equipment with this capability, such as a DVD player.
0
5 Monitor Out
These jacks provide fixed audio and video signals which are used for recording.
There is NO MONITOR OUT when using COMPONENT VIDEO.
0
6
Audio to Hi-Fi
These jacks provide variable audio output to a separate stereo amplifier. With this connection, the audio to the stereo can
be controlled by the PC ready color television's main volume. Use these jacks for the SURROUND Left and Right chan-
nels.
0
7
NOTE:
The mini DIN 6 Pin Keyboard terminal underneath the PC Control at rear panel does not work on this
model.
0
8 PC Control
Use this input for remote control mouse operation.
0
9
PC Audio Input
Connect external devices for audio in PC mode.
@ PC RGB Input 1 (RGBI)
Use this 15pin D-Sub Input for your PC connection.
15
