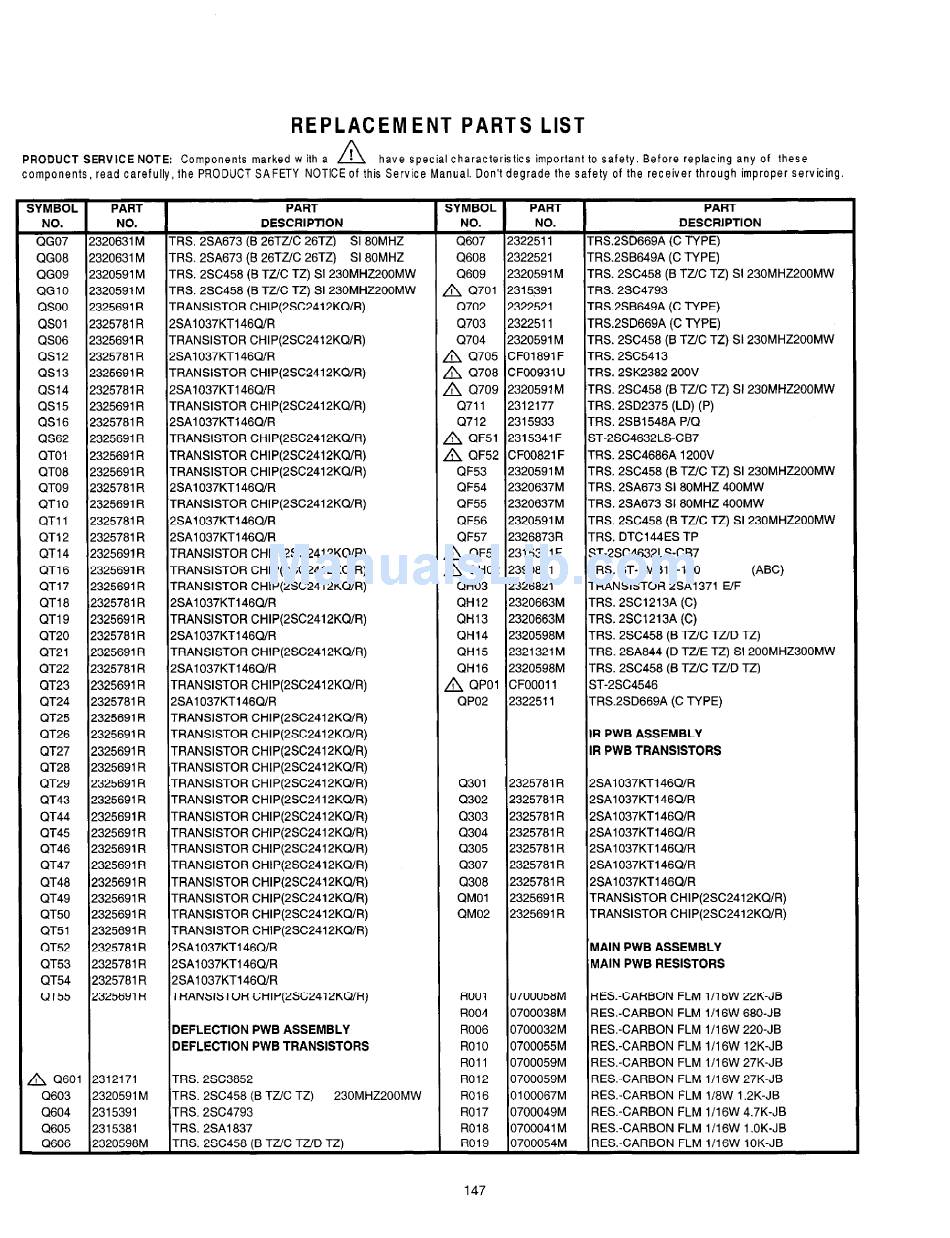

REPLACEMENT PARTS LIST
PRODUCT SERVICE NOTE: Components marked w ith a A ! have special characteristics important to safety. Before replacing any of these
components, read carefully, the PRODUCT SAFETY NOTICE of this Service Manual. Don't degrade the safety of the receiver through improper servicing.
SYMBOL PART PART SYMBOL PART
PART
NO. NO.
DESCRIPTION
NO.
NO. DESCRIPTION
QG07 2320631 M TRS. 2SA673 (6 26TZ/C 26TZ) Sl80MHZ
Q607 2322511 TRS.2SD669A (C TYPE)
QG08 2320631 M TRS. 2SA673 (6 26TZ/C 26TZ) SI 80MHZ
Q608 2322521 TRS.2SB649A (C TYPE)
QG09 2320591 M
TRS. 2SC458 (6 TZ/C TZ) SI 230MHZ200MW Q609 2320591 M TRS. 2SC458 (B TZ/C TZ) Sf 230MHZ200MW
QGlO 2320591 M TRS. 2SC458 (B TZ./C TZ) SI 230MHZ200MW & Q701 2315391 TRS. 2SC4793
QSOO 2325691 R TRANSISTOR CHIP(2SC24t2KQ/R) Q702 2322521 TRSZSB649A (C TYPE)
QSOl 2325781 R 2SA1037KT146Q/R Q703
2322511 TRS2SD669A (C TYPE)
QS06 2325691 R
TRANSISTOR CHIP(2SC24t2KQ/R) Q704 2320591 M TRS. 2SC458 (B TUC TZ) SI 230MHZ200MW
QSt2 2325781 R 2SA1037KT146Q/R /;\ Q705 CFO1891F TRS. 2SC5413
QS13 232569 1 R TRANSISTOR CHIP(2SC2412KQ/R) A Q708 CFOO931U TRS. 2SK2382 200V
QS14 232578 1 R 2SA1037KT146Q/R A Q709 2320591M
TRS. 2SC458 (B Tz/C TZ) SI 230MHZ200MW
QS15 2325691 R TRANSISTOR CHlP(2SC2412KQ/R)
Q711 2312177 TRS. 2SD2375 (LD) (P)
QS16 2325781 R
2SA1037KTI 46Q./R Q712 2315933 TRS. 2SBl548A P/Q
QS62 2325691 R TRANStSTOR CHIP(2SC2412KQ/R) A QF51 2315341 F ST-2SC4632LS-CB7
QTOI 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) A QF52 CFOO821F TRS. 2SC4686A 12OOV
QT08 2325691 R
TRANSISTOR CHIP(2SC2412KQ/R) QF53 2320591 M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ200MW
QT09 2325781 R
2SAI 037KT146Q/R QF54 2320637M TRS. 2SA673 SI 80MHZ 400MW
QTlO 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) QF55 2320637M TRS. 2SA673 Si 80MHZ 400MW
QTl I 2325781 R 2SA1037KT146Q/R
QF56 2320591 M TRS. 2SC458 (B TZ/C TZ) SI 230MHZ200MW
QTI2 2325781 R 2SA1037KT146QIR QF57 2326873R TRS. DTC144ES TP
QT14 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) /1\ QF58 2315341 F ST-2SC4632LSCB7
QT16 2325691 R TRANSISTOR CHIP(2SC2412KQ/R)
A QH02 2390851 TRS. ST-l MB1 2-I40
(ABC)
QTt7 2325691 R TRANSISTOR CHtP(2SC2412KQ/R) QH03 2326821 TRANSISTOR 2SA1371 E/F
QT18 232578 t R 2SA1037KT146Q/R QH12 2320663M TRS. 2SCl213A (C)
QTl9 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) QH13 2320663M TRS. 2SC1213A (C)
QT20 232578 1 R 2SA1037KT146Q/R QH14 2320598M TRS. 2SC458 (B TZ/C TZ/D TZ)
QT21 2325691 R
TRANSISTOR CHlP(2SC2412KQ/R) QH15 232132IM TRS. 2SA844 (D TZ/E TZ) Sf 200MHZ300MW
QT22 2325781 R 2SA1037KTI 46Q/R QH16 2320598M TRS. 2SC458 (6 TZ/C TZ/D TZ)
QT23 2325691 R TRANSISTOR CHlP(2SC2412KQ/R) /;\ QPOl CFOOOll ST-2SC4546
QT24 2325781 R 2SA1037KT146QfR QP02 2322511 TRS.2SD669A (C TYPE)
QT25 2325691 R TRANSISTOR CHIP(2SC2412KQ/R)
QT26 2325691 R
TRANSISTOR CHIP(2SC2412KQ/R) IR PWB ASSEMBLY
QT27 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) IR PWB TRANSISTORS
QT28 2325691 R TRANSISTOR CHIP(2SC2412KQ1R)
QT29
2325691 R .TRANSISTOR CHIP(2SC2412KQR) Q301 2325781 R 2SA1037KT146QR
QT43 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) Q302 2325781 R 2SA1037KT146Q/R
QT44 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) Q303 2325781 R 2SA1037KT146Q/R
QT45 2325691 R TRANSISTOR CHlP(2SC2412KQ/R) Q304
2325781 R 2SA1037KT146Q/R
QT46 2325691 R TRANSISTOR CHIP(2SC2412KQIR) Q305 2325781 R 2SA1037KT146Q/R
QT47 232569 1 R TRANSISTOR CHtP(2SC2412KQR) Q307 2325781 R 2SA1037KT146Q/R
QT48 232569 1 R TRANSISTOR CHIP(2SC2412KQ/R) Q308
2325781 R
2SA1037KT146Q/R
QT49
232569 1 R TRANSISTOR CHIP(2SC2412KQ/R) QMOl 2325691 R TRANSlSTOR CHIP(2SC2412KQ/R)
QT50 232569 1 R TRANSISTOR CHIP(2SC2412KQ/R) QM02 2325691 R TRANSISTOR CHIP(2SC2412KQ/R)
QT51 232569 1 R TRANSISTOR CHlP(2SC2412KQR)
QT52 232578 t R 2SA1037KT146Q/R MAIN PWB ASSEMBLY
QT53 2325781 R
2SA1037KT146Q./R MAIN PWB RESISTORS
QT54 2325781 R 2SA1037KT146Q/R
QT55 2325691 R TRANSISTOR CHIP(2SC2412KQ/R) ROOl 0700058M RES-CARBON FLM l/l 6W 22K-JB
R004 0700038M RES.-CARBON FLM l/l 6W 680-JB
DEFLECTION PWB ASSEMBLY R006 0700032M RES.-CARBON FLM l/l 6W 220-JB
DEFLECTION PWB TRANSISTORS ROlO 0700055M RES.-CARBON FLM l/l 6W 12K-JB
Roll 0700059M RES.-CARBON FLM l/l 6W 27K-JB
A Q601 2312171 TRS. 2SC3852 R012 0700059M RES.-CARBON FLM l/l 6W 27K-JB
Q603 2320591 M TRS. 2SC458 (B TZ/C TZ) 230MHZ200MW R016 0 100067M RES.-CARBON FLM 1/8W 1.2K-JB
Q604 2315391
TRS. 2SC4793 R017 0700049M RES-CARBON FLM l/l 6W 4.7K-JB
Q605 2315381 TRS. 2SA1837 R018 0700041 M RES.-CARBON FLM 1 /16W 1 .OK-JB
Q606 2320598M TRS. 2SC458 (B TZ/C TZ/D TZ) R019 0700054M
RES.-CARBON FLM 1/16W IOK-JB
147
