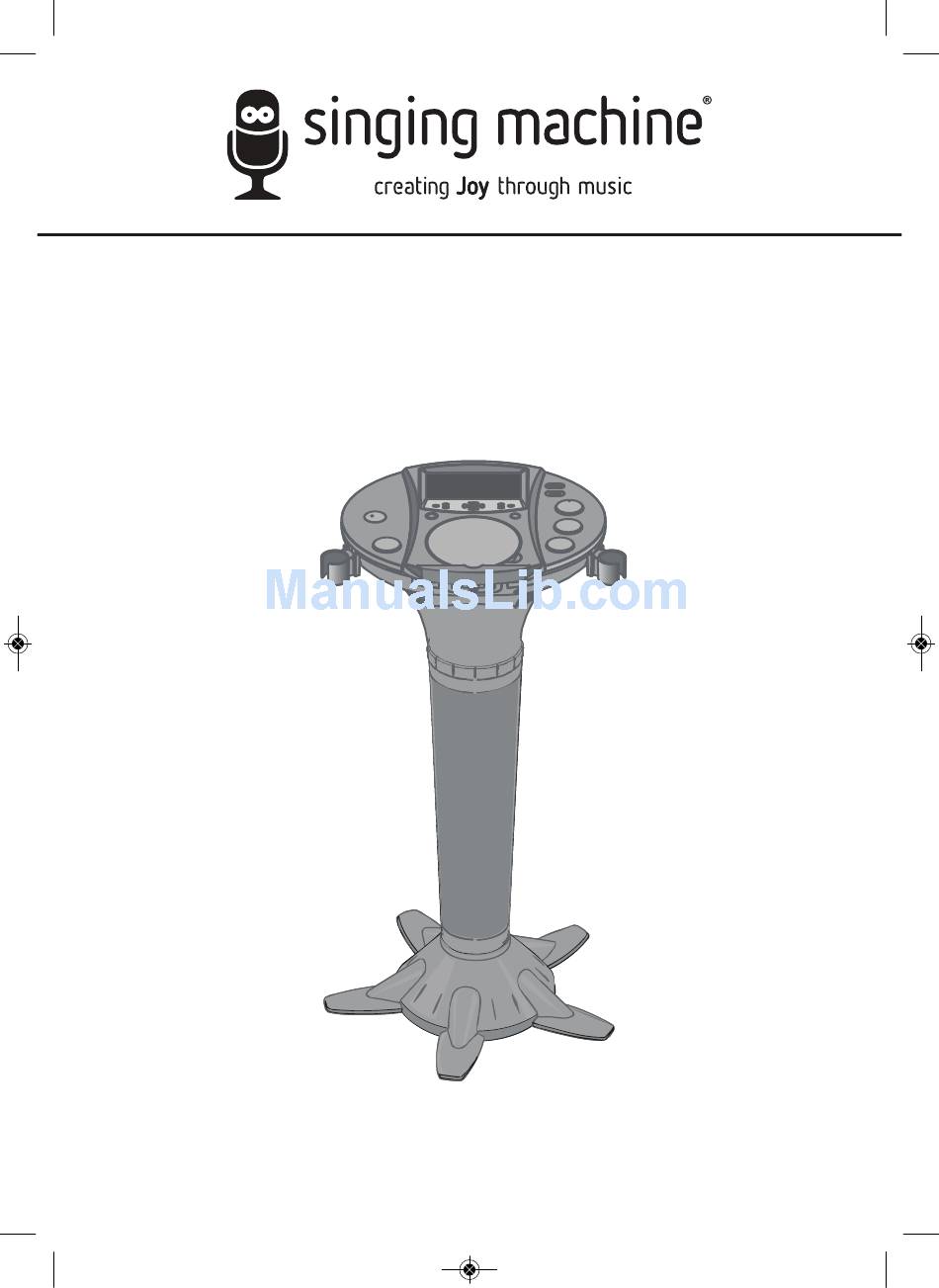

iSM1020BT
INSTRUCTION MANUAL
MANUAL DE INSTRUCCIONES
www.singingmachine.com
The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
The Singing Machine® es marca registrada de The Singing Machine Co., Inc.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iSM1020BT and is the answer not in the manual?

Questions and answers

Summary of Contents for The Singing Machine iSM1020BT

  • Page 1 INSTRUCTION MANUAL MANUAL DE INSTRUCCIONES www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc. The Singing Machine® es marca registrada de The Singing Machine Co., Inc.
  • Page 2 Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual.
  • Page 3 Included Please make sure the following items are included. Detachable Mic Holder x 2 (One wired microphone included) iSM1020BT Base One Wired Microphone Audio/Video Cable Pedestal with built-in Speakers Detachable Cradle Black Screw x 10 (for the foot) Stand Silver Screw x 2...
  • Page 4 Installation 1. Turn the stand upside down and insert the feet as illustrated. Insert and tighten 2 black screws for each foot (as illustrated). Repeat the above step for other feet. 2. Insert the Pedestal into the Stand and then gently rotate clockwise until tight, making sure the screw hole in the Pedestal aligns with the screw hole in the Stand.
  • Page 5 Installation 4. Insert the Base into the Pedestal and then gently rotate clockwise until the screw hole in the Base aligns with the screw hole in the Pedestal. 5. Insert and tighten 1 of the 2 silver self tapping screws to secure the monitor to the speaker/pedestal.
  • Page 6 Location of Controls (Top/Front) 1. Play/Pause / Bluetooth Pairing 16. Navigation Down Button   Restart Button 17. Skip/Search Forward Button  2. Navigation Up Button  18. ECHO Button 3. Stop Button 19. Auto Voice Control (AVC) Button  4.
  • Page 7 Location of Controls (Back) 1. FM Antenna Wire 6. VIDEO IN Jack 2. AC Power Cord 7. VIDEO OUT Jack 3. AUX IN (Left) Jack 8. AUX OUT (Left) Jack 4. Pedestal Speaker Jack 9. AUX OUT (Right) Jack 5. Pedestal Speaker Plug 10.
  • Page 8 Connect the Audio/Video cables yellow plug to the yellow VIDEO OUT jack on the iSM1020BT and the other end to the external unit’s yellow Video In jack. Connect the Audio/Video Video Out (Yellow)
  • Page 9 Connecting an External TV, Stereo, etc. to this Unit Connect the Audio/Video cables yellow plug to the yellow VIDEO IN jack on the iSM1020BT and the other end to the external unit’s yellow Video Out jack. Connect the Audio/Video cables red and white plugs to...
  • Page 10 Connecting the Pedestal Speaker To protect the speakers, make sure the iSM1020BT is off and the MASTER VOLUME and the MIC 1 and 2 VOLUME controls are set to minimum. Connect the Pedestal Speaker plug to the Pedestal Speaker jack.
  • Page 11 Operation Playing a CD (with or without MP3+G files), CD+G or USB Drive Connect the unit as described previously. Press the ON/STANDBY button to turn the unit on; the On/Standby indicator will light blue and the LCD Screen will display below: Lift open the CD door and insert a CD (with standard or MP3+G files) or a CD+G by gently pressing it on the...
  • Page 12 Operation Playing a CD (with or without MP3+G files), CD+G or USB Drive Press the Play/Pause  button to start playback; if listening to an MP3+G or CD+G file, the image and lyrics will appear on the LCD Screen. Adjust the volume to a comfortable level using the MASTER VOLUME control.
  • Page 13 Operation Playing a CD (with or without MP3+G files), CD+G or USB Drive Adjust the Key to obtain the best key for the singer. During playback, press the MENU button, and then navigate to DIGI KEY CTRL using the   Navigation buttons.
  • Page 14 Operation Playing a CD (with or without MP3+G files), CD+G or USB Drive SKIP: Advance or go back one track  by pressing the Skip Back /Skip  Forward buttons. Note: If using a USB drive, during STOP mode you can also select a file using the Navigation ...
  • Page 15 Operation Playing a CD (with or without MP3+G files), CD+G or USB Drive PAUSE: During playback, if you wish to pause the disc momentarily, press the Play/Pause button; “PAUSE”  will appear on the screen. Press the Play/Pause button again to resume normal playback.
  • Page 16 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/STANDBY button to turn the unit on; the On/Standby indicator will light blue and the LCD Screen will display below: Repeatedly press the FUNCTION button until the LCD Screen displays “BLUETOOTH”...
  • Page 17 Operation Using a Bluetooth Device PLAY/PAUSE: Press the Play/Pause button to start playback. Adjust the volume to a comfortable level using the MASTER VOLUME control. Note: If connected to a TV or other audio source, adjust the volume using the other device's volume control.
  • Page 18 Operation Using a Bluetooth Device Press the Auto Voice Control (AVC) button to turn this option On (AVC ON will appear in the screen) and the vocals on a multiplex recording are muted as soon as the singer begins singing into the microphone. When the singer stops singing, the vocals are automatically unmuted.
  • Page 19 Operation Using a Bluetooth Device PAUSE: During playback, if you wish to pause the track momentarily, press the Play/Pause button. Press  the Play/Pause button again to resume normal playback. Press and hold the Play/Pause  button to restart the pairing process. Note: Pairing remains intact when the unit and/or your Bluetooth device is taken out of communication range.
  • Page 20 Operation Using the AUX Jack Connect the unit as described previously. Press the ON/STANDBY button to turn the unit on; the On/Standby indicator will light blue and the LCD Screen will display below: Connect the external unit to the VIDEO/AUX in jacks on the rear of this unit as shown on page 8.
  • Page 21 Operation Using the AUX Jack Adjust the MIC VOLUME 1 or 2 control as desired. Increasing this control will increase the volume of the respective microphone. Adjust the Echo and Balance effects as shown on pages 11 and 12. Press the ON/STANDBY button to turn the unit off;...
  • Page 22 Operation Using the FM Radio Connect the unit as described previously. Press the ON/STANDBY button to turn the unit on; the On/Standby indicator will light blue and the LCD Screen will display below: Repeatedly press the FUNCTION button until the LCD Screen displays "Radio"...
  • Page 23 Operation Recording on a USB Drive Connect the unit as described previously. Press the ON/STANDBY button to turn the unit on; the On/Standby indicator will light blue and the LCD Screen will display "USB" on the left hand corner of the LCD screen.
  • Page 24 Operation Recording on a USB Drive Press the RECORD button; the LCD Screen will display REC and the percentage remaining on the USB device. Sing/speak into the microphone and your voice will record along with the music and video (if video is present) onto the USB drive.
  • Page 25 USB flash drive • Remove (eject) the USB flash drive from your computer Download your selected purchase(s) Turn on the Singing Machine and connect the USB from the Singing Machine Digital Locker flash drive to your USB flash drive. Insert the USB flash drive as shown on •...
  • Page 26: Care And Maintenance

    Care and Maintenance Care for Compact Discs Treat the compact disc carefully. Handle the compact disc only by its edges. Never allow your fingers to come in contact with the shiny, unprinted side of the compact disc. Do not attach adhesive tape, stickers, etc. to the compact disc label.
  • Page 27: Troubleshooting Guide

    Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/STANDBY button is illuminated blue. • Make sure unit is connected to AC power. No Sound – General •...
  • Page 28 Troubleshooting Guide The Bluetooth device can not be paired or connected with the unit. • You have not activated the Bluetooth function of your device; see page 16 or refer to the Bluetooth device user manual.  • The unit is not in pairing mode; press and hold the Play/Pause button to restart pairing.
  • Page 29: Specifications

    Specifications AUDIO Output Power........................7 Watts (RMS) Output Impedance ..........................3 Ohms CD PLAYER Frequency Response ......................100 Hz-20 KHz Signal to Noise Ratio..........................50 dB Sampling System ....................8 Times Oversampling Disc Diameter ........................4.72” (120 mm) ..........................3.15” (80 mm) Single CD BLUETOOTH Bluetooth Version .............................V2.0 Working Distance..............Up to 10 meters measured in open space...
  • Page 30 Advertencias ADVERTENCIA: PARA EVITAR INCENDIOS O PELIGROS DE DESCARGA, PRECAUCIÓN NO EXPONGA ESTA UNIDAD A LA LLUVIA O HUMEDAD. RIESGO DE DESCARGA ELÉCTRICA AVISO DE LA FCC: Este equipo puede generar o usar energía de radio frecuencia. NO ABRIR Los cambios o modificaciones realizados en el aparato pueden provocar interferencia perjudicial, a menos que dichas modificaciones estén autorizadas en PRECAUCIÓN: PARA REDUCIR EL RIESGO DE DESCARGAS ELÉCTRICAS, NO QUITE el manual de instrucciones.
  • Page 31 Se incluyen Asegúrese de que estén incluidos los siguientes elementos. Porta micrófono desmontable x 2 Base iSM1020BT (Un micrfófono de cable incluído) Micrófono con cable Cable de Audio/Video Cable de Audio/Video Pedestal con altavoces Soporte desmontable Tornillo negro x 10...
  • Page 32 Instalación 1. Coloque el estante boca abajo e inserte los pies según ilustrado. Inserte y apriete 2 tornillos negros en cada pata (según ilustrado). Repita el paso anterior para la otra pata. 2. Introduzca el Pedestal en la base y luego gire cuidadosamente hacia la derecha hasta que esté...
  • Page 33 Instalación 4. Introduzca la base en el Pedestal y luego gire cuidadosamente hacia la derecha hasta que el orificio del tornillo en la base esté alineado con el orificio del tornillo en el Pedestal. 5. Insertar y apretar 1 de los 2 tornillos platinos para sujetar el monitor con el parlante/pedestal.
  • Page 34 Ubicación de controles (Superior/delantero) 1. Botón Reproducir/Pausar (Play/Pause) 15. Entrada para auriculares   / Reiniciar Configuración Bluetooth 16. Botón de Navegación hacia abajo  17. Botón de Saltar/Buscar hacia adelante Botón de Navegación hacia arriba  (Skip/Search Forward) Botón de Detención (Stop ...
  • Page 35 Ubicación de los controles (reverso) Cable Antena FM ENTRADA DE VIDEO Cable de Alimentación de CA SALIDA DE VIDEO Entrada de audio (AUX IN) (Izquierda) SALIDA DE AUDIO (AUX OUT) (Izquierda) Orificio para enchufe de pedestal SALIDA DE AUDIO (AUX OUT) (Derecha) Enchufe de pedestal 10.
  • Page 36 DVD, estéreo, etc. siga estos pasos: Conecte el enchufe amarillo del cable de Audio/Video en la SALIDA DE VIDEO amarilla en el iSM1020BT y el otro extremo en la Entrada de Video amarilla de la unidad externa. Conecte los enchufes rojo y blanco...
  • Page 37 Conexión de televisor externo, estéreo, etc a la unidad. Conecte el enchufe amarillo del cable de Audio/Video en la ENTRADA DE VIDEO amarilla en el iSM1020BT y el otro extremo en la Salida de Video amarilla de la unidad externa. Conecte los enchufes rojo y blanco...
  • Page 38 Conectando el parlante en el pedestal Para proteger los parlantes asegúrese de que el iSM1020BT esté apagado y el VOLUMEN PRINCIPAL (MASTER VOLUME) y los controles de VOLUMEN DEL MICRÓFONO 1 y 2 estén en su mínima configuración.
  • Page 39 Funcionamiento Reproducción de un CD (con o sin archivos MP3+G), CD+G o dispositivo USB Conecte la unidad como se describió previamente. Oprima el botón ENCENDIDO/ESPERA (ON/STANDBY) para encender la unidad; El indicador de On/ STANDBY se tornará azul y la pantalla LCD tendrá...
  • Page 40 Funcionamiento Reproducción de un CD (con o sin archivos MP3+G), CD+G o dispositivo USB Oprima Reproducción/Pausa (Play/Pause) para iniciar la reproducción; si escucha  un archivo MP3+G o CD+G aparecerán la imagen y las letras de canciones en la pantalla de LCD. Ajuste el volumen a un nivel conveniente, usando el control de VOLUMEN PRINCIPAL (MASTER VOLUME).
  • Page 41 Funcionamiento Reproducción de un CD (con o sin archivos MP3+G), CD+G o dispositivo USB Ajuste la Clave (Key) para obtener la mejor clave para el cantante. Durante la reproducción, oprima el botón MENÚ y luego navegue a la tecla CONTROL DE CLAVES DIGITALES (DIGI KEY CTRL) usando los botones de Navegación ...
  • Page 42 Funcionamiento Reproducción de un CD (con o sin archivos MP3+G), CD+G o dispositivo USB SALTO (SKIP): Avance o retroceda una pista oprimiendo los botones de Salto hacia   adelante/Atrás (Skip Back /Skip Forward Nota: Si usa un dispositivo USB durante el modo de DETENER (STOP) puede también seleccionar un archivo ...
  • Page 43 Funcionamiento Reproducción de un CD (con o sin archivos MP3+G), CD+G o dispositivo USB PAUSA: Durante la reproducción, si desea pausar momentáneamente el disco, oprima el  botón Reproducción/Pausa (Play/Pause) “PAUSA” (PAUSE) aparecerá en la pantalla. Oprima nuevamente para reanudar la reproducción normal.
  • Page 44 Funcionamiento Utilizar un dispositivo Bluetooth Conecte la unidad como se describió previamente. Oprima el botón ENCENDIDO/ESPERA (ON/STANDBY) para encender la unidad; El indicador de On/STANDBY se tornará azul y la pantalla LCD tendrá la imagen debajo: Oprima el botón FUNCIÓN (FUNCTION) varias veces hasta que en la pantalla LCD se lea “BLUETOOTH”...
  • Page 45 Funcionamiento Utilizar un dispositivo Bluetooth PLAY/PAUSE: Press the Play/Pause button to start playback. Ajuste el volumen a un nivel conveniente, usando el control de VOLUMEN PRINCIPAL (MASTER VOLUME). Nota: Si se conecta a un televisor u otra fuente de audio, ajuste el volumen utilizando el control de volumen del otro dispositivo.
  • Page 46 Funcionamiento Utilizar un dispositivo Bluetooth Oprima el botón de control de Auto Voz (Auto Voice, AVC) para encender esta opción (aparecerá AVC ON en la pantalla). Se silenciarán las voces en grabación multiplex en cuanto el cantante comience a cantar en el micrófono. Cuando se detiene, las voces comienzan a escucharse nuevamente de forma automática.
  • Page 47 Funcionamiento Utilizar un dispositivo Bluetooth PAUSAR (PAUSE): Durante la reproducción si desea pausar momentáneamente la pista oprima el botón Reproducir/ Pausar (Play/Pause)  . Oprima nuevamente para reanudar la reproducción normal. Mantenga presionado el botón Reproducir/Pausar (Play/Pause)  para reiniciar el proceso de configuración. Nota: La configuración permanece intacta cuando la unidad y/o su dispositivo Bluetooth salga del rango de comunicación.
  • Page 48 Funcionamiento Uso de la entrada AUX Conecte la unidad como se describió previamente. Oprima el botón ENCENDIDO/ESPERA (ON/STANDBY) para encender la unidad; El indicador de ON/STANDBY se tornará azul y la pantalla LCD tendrá la imagen debajo: Conecte la unidad externa a las entradas de VIDEO/AUX en la parte trasera de esta unidad como lo muestra la página 36.
  • Page 49 Funcionamiento Uso de la entrada AUX Ajuste el control de VOLUMEN DEL MICRÓFONO (MIC VOLUME) 1 o 2 según el nivel deseado. Al aumentar el nivel de este control se incrementará el volumen del micrófono respectivo. Ajuste los efectos de Eco (Echo) y Balance como lo muestran las páginas 39 y 40.
  • Page 50 Funcionamiento Uso de radio FM Conecte la unidad como se describió previamente. Oprima el botón ENCENDIDO/ESPERA (ON/STANDBY) para encender la unidad; El indicador de ON/STANDBY se tornará azul y la pantalla LCD tendrá la imagen debajo: Para seleccionar el modo FM oprima repetidamente el botón FUNCIÓN (FUNCTION) hasta que “Radio”...
  • Page 51 Funcionamiento Grabación en un dispositivo USB Conecte la unidad como se describió previamente. Oprima el botón ENCENDIDO/ ESPERA (ON/STANDBY) para encender la unidad; hasta que aparezca la palabra “USB” en la parte izquierda de la pantalla LCD. Introduzca un dispositivo USB con espacio disponible en la entrada de USB.
  • Page 52 Funcionamiento Grabación en un dispositivo USB Oprima el botón de GRABAR (RECORD); la pantalla de LCD mostrará REC y un porcentaje que falta en el dispositivo USB introducido. Cante o hable en el micrófono. Su voz se grabará con la música y el video (si lo hay) en el dispositivo USB.
  • Page 53 Funcionamiento Dónde descargar archivos MP3+G Para adquirir y descargar música de Karaoke visite Recomendaciones útiles: http://store.singingmachine.com y acceda a más de Los archivos .mp3 y .cdg. están dispinibles para 12000 de sus canciones favoritas para karaoke. descargarse en un único archivo, comprimido MP3 Necesitará...
  • Page 54 Cuidado y mantenimiento Cuidado de los discos compactos Trate el disco compacto con cuidado.Manipuleeldiscosolo tomándolo de los bordes. No permita que sus dedos hagan contacto con el lado brillante sin impresión del disco compacto. No pegue cinta adhesiva, autoadhesivos, etc. a la etiqueta del disco compacto.
  • Page 55 Guía de Resolución de Problemas Si esta unidad presentara un problema, lea el siguiente cuadro antes de llamar al servicio técnico: No hay energía • La unidad no está encendida; presione el botón de ON/STANDBY está iluminado de color azul. •...
  • Page 56 Guía de Resolución de Problemas El dispositivo Bluetooth no se puede configurar o conectar con la unidad. • No ha activado la función Bluetooth de su dispositivo; ver la página 45 o consultar el manual de usuario del dispositivo Bluetooth. •...
  • Page 57 Especificaciones AUDIO Potencia de salida......................... 7 Watts (RMS) Impedancia de salida......................... 3 Ohms REPRODUCTOR DE CD Respuesta de frecuencia ....................100 Hz-20 KHz Proporción de señal y ruido .........................50 dB Sistema de muestreo....................Sobremuestreo por 8 Diámetro del disco......................4,72” (120 mm) ..........................
  • Page 58 4060 E. Jurupa St., Unit B, Ontario, CA 91761-1413 USA © 2015...
