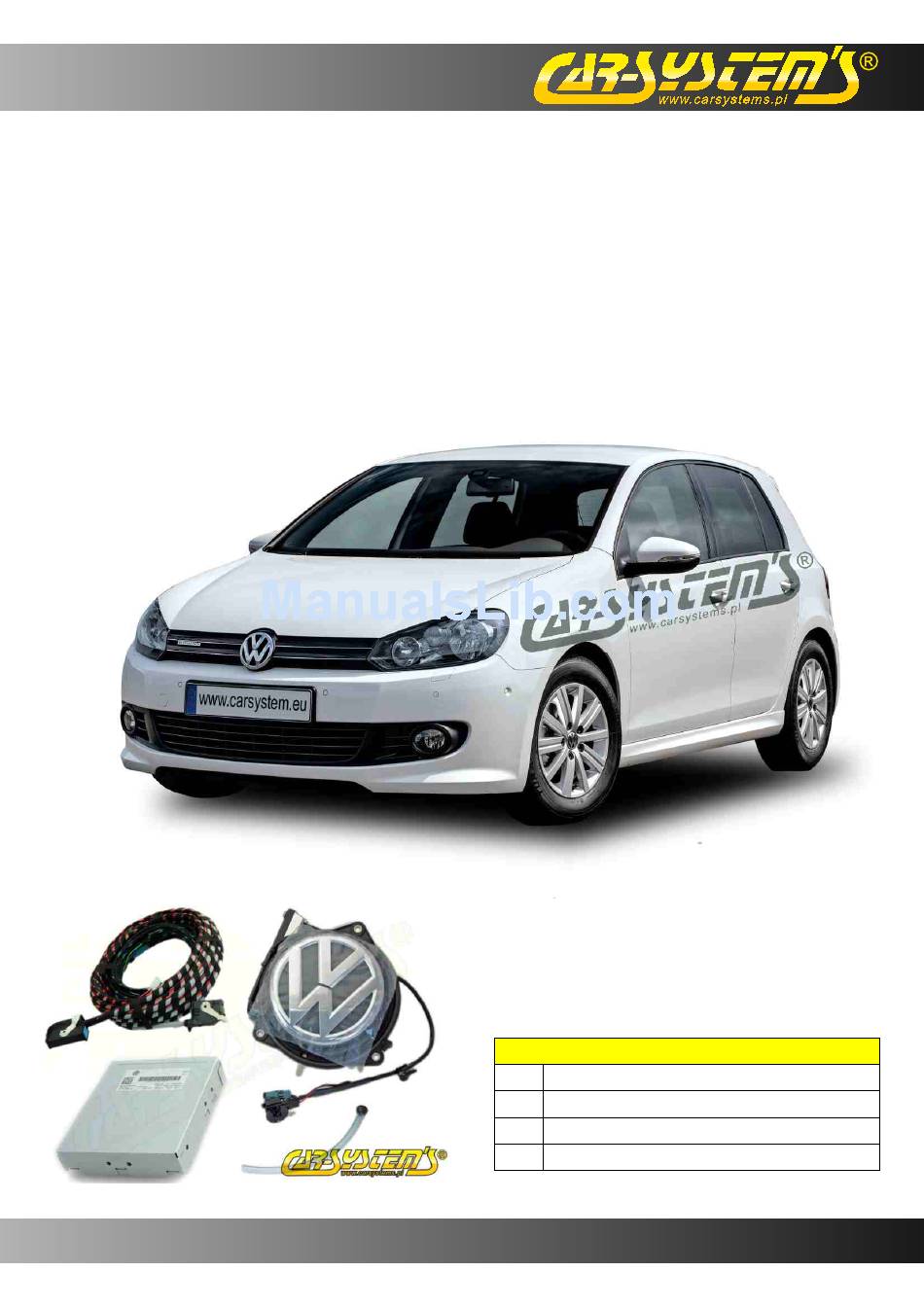

- Page 1 Volkswagen Golf VI Assembly manual of rear - view camera with module v. 1.0. The bundle includes: 1 pc Camera built-in VW emblem 1 pc Drain pipe 1 pc 5N0907441 module 1 pc Plug&Play wire www.carsystems.eu...
- Page 2 VW Golf VI - Rear-view camera - installation guide Remove the emblem and screw on the Dismantle the rear trunk lid covering. camera in the same way. Connect wires from the beam to the rear-view camera as shown on the photos and lead the wires.
- Page 3 VW Golf VI - Rear-view camera - installation guide Pull the power and video wires on the left side of the trunk lid towards a grommet. Yellow wire from the beam connect to rear light. First pin in the chip next to the lamp. www.carsystems.eu...
- Page 4 VW Golf VI - Rear-view camera - installation guide Remove screws indicated on the photo and After installing the module clip the chops take off the left side of the rear pillar. Pull the indicated on the photo and lead the beam to the front as shown on the following photos.
- Page 5 VW Golf VI - Rear-view camera - installation guide Dismantle the radio. Begin with removing the After taking out the radio and pulling the beam clip the 28-pin chip into the socket. masking frame by lifting it gently. After the frame is loosened remove the fixing screws.
- Page 6 VW Golf VI - Rear-view camera - installation guide – – Connect the camera power to the fuse box so that +12V is fixed. – www.carsystems.eu...
- Page 7 VW Golf VI - Rear-view camera - installation guide Using diagnostic equipment VCDS open block 19 - Can Gateway Next open block List of Connections www.carsystems.eu...
- Page 8 VW Golf VI - Rear-view camera - installation guide – – Mark position 6C - Backup-Cam (rear-view camera) on the list and confirm. – – In the same module open block Coding -> Coding Assistant Find byte with information on the producer 00 Manufacturer: Volkswagen Chande the module for: 60 Model: Otfroad.
- Page 9 VW Golf VI - Rear-view camera - installation guide Go to block 6C - Rear-view camera Open block Coding --> Coding Assistant Code the module: 0000110 Confirm coding. Delete errors in both blocks 6C and 19. www.carsystems.eu...
