Owner's Manual
1of 8

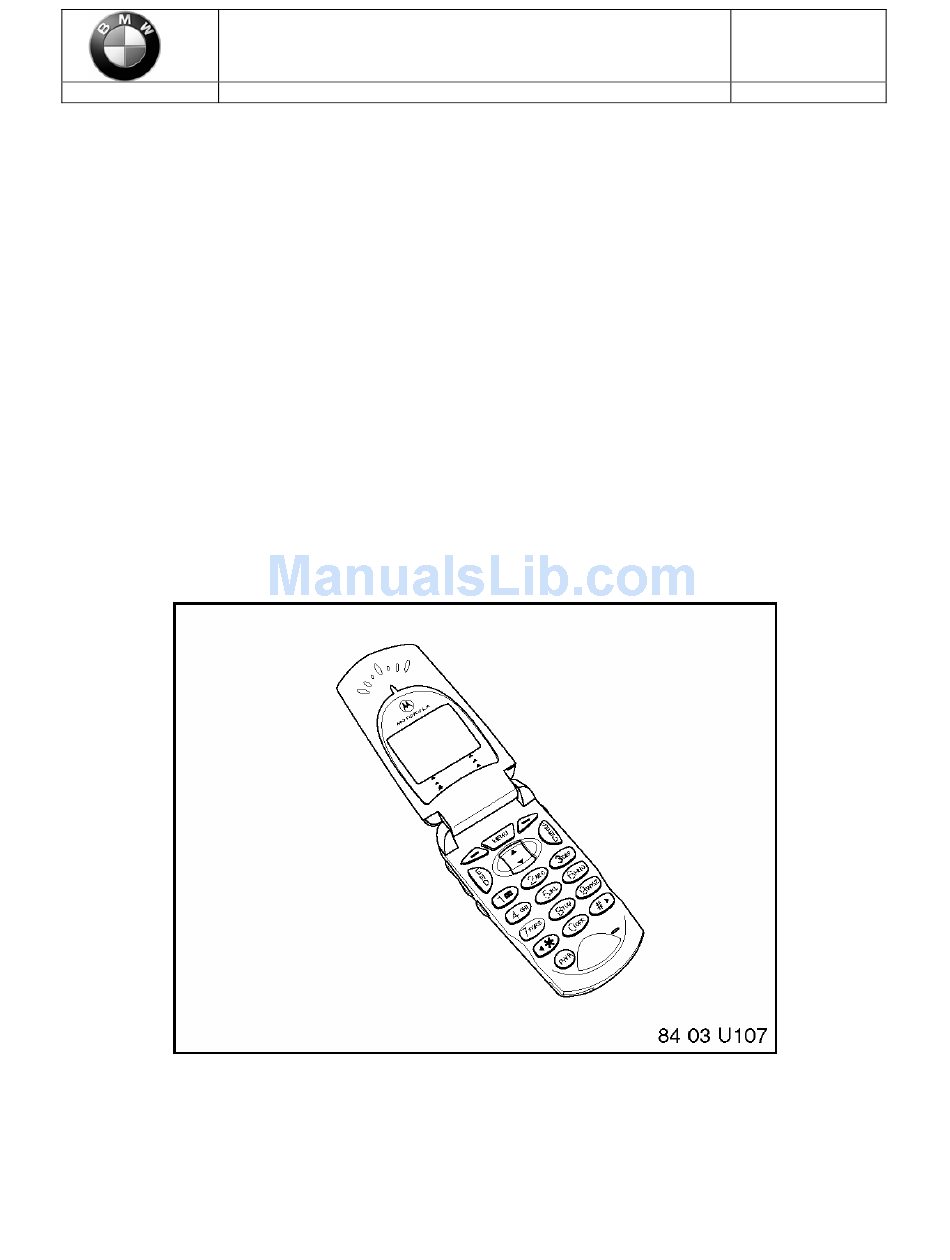

BMW CPT 9000 Installation Instructions
Page
MY 2003 X5 (E53)
September 2003
MY 2003 BMW X5 (E53)
(6 and 8 cyl. models)
With Option SA639
BMW CPT 9000 DIGITAL PORTABLE TELEPHONE
INSTALLATION INSTRUCTIONS
BMW of North America
Instructions Part Number
Product Engineering Department
01 29 0 391 028
Advertisement
Related Manuals for BMW CPT 9000
Summary of Contents for BMW CPT 9000
-
Page 1: Installation Instructions
MY 2003 X5 (E53) September 2003 MY 2003 BMW X5 (E53) (6 and 8 cyl. models) With Option SA639 BMW CPT 9000 DIGITAL PORTABLE TELEPHONE INSTALLATION INSTRUCTIONS BMW of North America Instructions Part Number Product Engineering Department 01 29 0 391 028... -
Page 2: Part Number Matrix
These instructions were developed by the BMW of North America, Product Development Engineering Department specifically for BMW vehicles and are not to be compared to any existing instructions for vehicles other than BMW. No methods other than those specified in this manual are to be used to install the digital telephone. - Page 3 PRE-INSTALLATION NOTES & GENERAL INFORMATION ON CPT 9000 PHONE SYSTEM • X5 (E53) vehicles are pre-wired for the CPT 9000 Digital Phone and have the telephone antenna factory installed. • The CPT 9000 System on the X5 (E53) functions as a fully integrated Portable Digital Phone.
- Page 4 4of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Eject Box Installation ( Into Center Sliding Armrest ) Important: It is no longer necessary to remove the center console to install the phone eject box. The vehicle harness now terminates inside the arm rest.
- Page 5 5of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Coin Tray removal 1. Reference Illustration 84 03 U139 Remove plastic tray insert from center of armrest. Eject Box Installation 1. Reference Illustration 84 03 U140 Install eject box with front portion angled downwards then locking rear into place by rotating down.
- Page 6 6of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Eject Box installation continued Reference illustration 84 03 U141 Eject box installed and locked in place. BMW of North America Instructions Part Number Product Engineering Department...
- Page 7 7of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 This illustration is a graphic representation of Eject box harness routed through armrest. Exposed is an ELO connector and a Fakra cable connector. NOTE; It is no longer necessary to disassemble armrest to install eject box.
- Page 8 8of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Pay special attention to the routing of the harnesses. The arm rest has to slide and therefore it is important to secure cables in such a way as not to obstruct this action or damage harnesses themselves.
- Page 9 9of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Apply adhesion promoter to both sides of rear bumper where antenna will be mounted, make sure surfaces are clean prior to applying adhesion promoter. Reference illustration S84 04 U77...
- Page 10 10of 8 BMW CPT 9000 Installation Instructions Page MY 2003 X5 (E53) September 2003 Peel away orange plastic strips (2) and position antenna squares on the area previously treated with adhesion promoter. Reference illustration S84 04 U77 Install antenna with two coax cables in the left side of the bumper . Position antenna then press and hold firmly for approximately 15 seconds.
