Astroflex Astrostart RS-304 Owner's Manual

REMOTE CONTROLE ENGINE STARTER
WITH BUILT-IN
ALARM SYSTEM
MODEL RS-304
Designed for use in all automatic
transmission , gasoline or diesel
powered, fuel injected vehicles
(Carburetor or throttle-assisted
engines require an optional
solenoid kit). Do not install
in vehicles equipped with
a manual transmission
Made in Canada by:
ASTROFLEX Inc.
Patents Pending
U.S. 4.345.554
CDN 1.130.426
Thank you for choosing the ASTROSTART™Remote control
Engine Starter. Your ASTROSTART™ is the product of
extensive research by a company specializing in the design
of high quality electronic equipment for automotive vehicles.
ASTROSTART™ is designed to provide years of reliable,
trouble-free service. Its advanced microprocessor circuitry
incorporates billions of possible access codes to prevent
interaction with other remote controlled vehicles.
ASTROSTART's safe and convenient features will make your
life easier.
Please take time to read these instructions carefully. Some
features may not be installed or applicable to your vehicle.
Safety Precautions!
•
Always turn OFF the main switch when parking your
vehicle in a closed, non-ventilated garage or when the
vehicle is being serviced.
•
Always turn OFF the main switch when ASTROSTART™
is not being used for extended periods of time.
•
Keep the transmitter away from children's reach.
•
For proper ASTROSTART™ operation, regular engine
tune-ups are recommended.
•
Always turn OFF the wiper switch before leaving vehicle.
•
Test your hood pin switch regularly to ensure safe
operation. This switch stops the engine when hood is
open.
•
Check for any local legislation that would prohibit leaving
a running vehicle unattended on public streets.
•
Always advise service personnel that your vehicle is
equipped with ASTROSTART™.
•
A yearly check up of your Remote Starter is strongly
recommended. Contact the ASTROSTART™ dealer in
your area.
BEFORE YOU USE YOUR TROSTART™
•
Select the desired setting for the heater/AC system
(when ASTROSTART™ starts the vehicle the heating /
AC system will resume operation).
•
Make sure that the vehicle is in the PARK position.

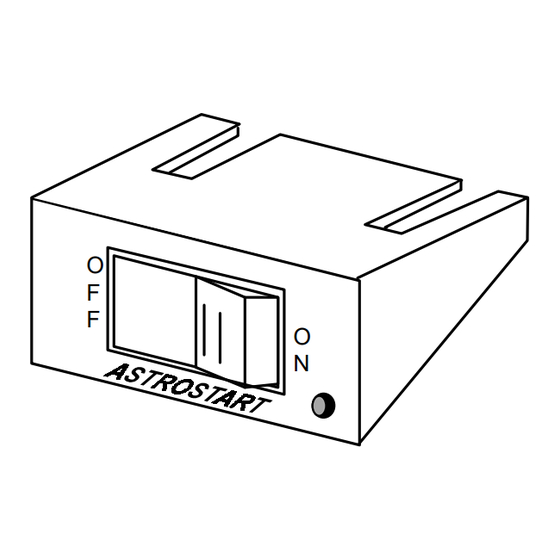

USING THE MAIN SWITCH
The astrostart™ main switch should be mounted under the
dash. It includes an ON-OFF rocker switch and a small LED
indicator light. Turning OFF this switch prevents using remote
start functions. Optional features remain active. The LED
indicator flashes user information codes.
O
F
F
O
N
THE REMOTE TRANSMITTER
A small 12 Volt alkaline battery (GP23A) powers your remote.
Under normal use, it should last approximately 6 months.
Range may be affected by a weak battery or by location (ie.
crowded parking lot, metal structures, hydro poles, etc.).
Using microprocessor-controlled CODE LEARNING, up to 3
additional ASTROSTART™ transmitters can be added at any
time (for a total of 4). See your ASTROSTART™ dealer.
USING YOUR REMOTE CONTROL
1, 2 or 3 Button Transmitter
Press on the desired button for 2 second. While pressing, the
LED will flash and stay on for 1 second while your command
is being transmitted. Commands will not be transmitted when
the button is not pressed for long enough (LED does not stay
on).
Example: Start - Push and hold the "A" button until the LED
shuts off.
4 BUTTON TRANSMITTER
Your remote control has four buttons and four LED indicators.
Each LED represents a separate group of functions. To
select the desired group, press the "P" button as many times
as required to light up the LED corresponding to the group of
functions you wish to access.
¾First LED lights up (RED) selecting
Push "P" Once
the first group of functions.
¾Second LED lights up (ORANGE)
Push "P" Twice
selecting the second group of
functions.
Push "P" Three times¾Third LED lights up (YELLOW)
selecting the third group of functions.
Push "P" Four times ¾Fourth LED lights up (GREEN)
selecting the fourth group of
Example:To transmit "Start " function, the reference card
instructs you to:
•
Push "P" once, RED LED flashes.
•
Push "A" once, engine will start.
To transmit "Stop", repeat the same commands.
UNDERSTANDING THE COMMANDS
To simplify reading, remote control commands are
abbreviated. All commands in this manual will be listed in the
following manner:eg.
Command Procedure
•
1 A Push "P" once (1), Push "A" once (1)
•
3 B,C Push "P" three (3) times,
Push "B" once (1), then "C" once (1)
•
3 A & B Push "P" three (3) times,
Push "A" & "B" simultaneously.
COMMAND ACKNOWLEDGEMENT
To confirm most transmitted commands, the
ASTROSTART™ system will flash the parking lights and / or
honk the horn.These confirmations are codded to provide
system status information to the user.
eg. Code Description
(horn 1, parking 2) Horn will honk once (1),
Parking lights will flash
twice (2).
THE REFERENCE CARD
A reference card is enclosed with the manual. This card lists
all available functions and the corresponding button
sequence to use. Keep this card on your person when using
your ASTROSTART™ system.
