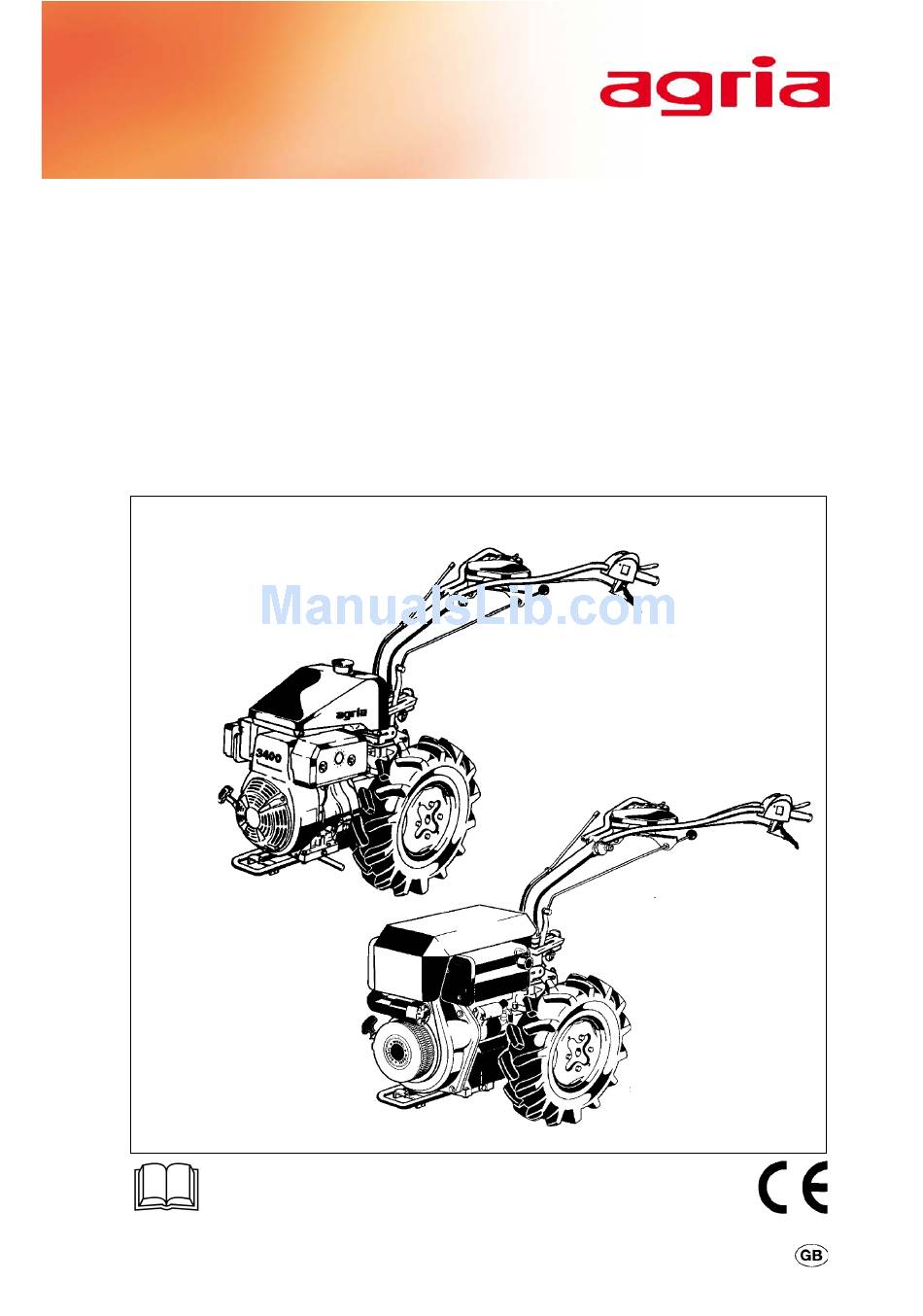

Agria 3400 Operating Instructions Manual

Two-wheel tractor
Hide thumbs Also See for 3400:
Table of Contents

Advertisement

Quick Links

See also: Operating Instructions Manual
Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Operating Instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Translation of the original operating instructions
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
Two-Wheel Tractor
3400, 3400KL
3400, 3400KL
3400, 3400KL
3400, 3400KL
3400, 3400KL
Versions with:
- Differential
- Differential overdrive
- Steering Brake Clutch
- Petrol Engine EH 34
- Diesel Engine L100
3247/4291_1
Before commissioning the machine, read operating instructions
and observe warnings and safety instructions.
Operating Instructions No. 998 420GB 12.11
