Table of contents Description of Device....................4 1.1 Safety Instructions .................... 5 Preparation and Installation ................... 6 2.1 Mounting ......................6 2.1.1 Mounting on the floor (upright) ............. 7 2.1.1 Mounting in hanging position (Head down) .......... 7 2.1.2 Mounting in sideways position ............. 8 2.2 Securing the device ..................

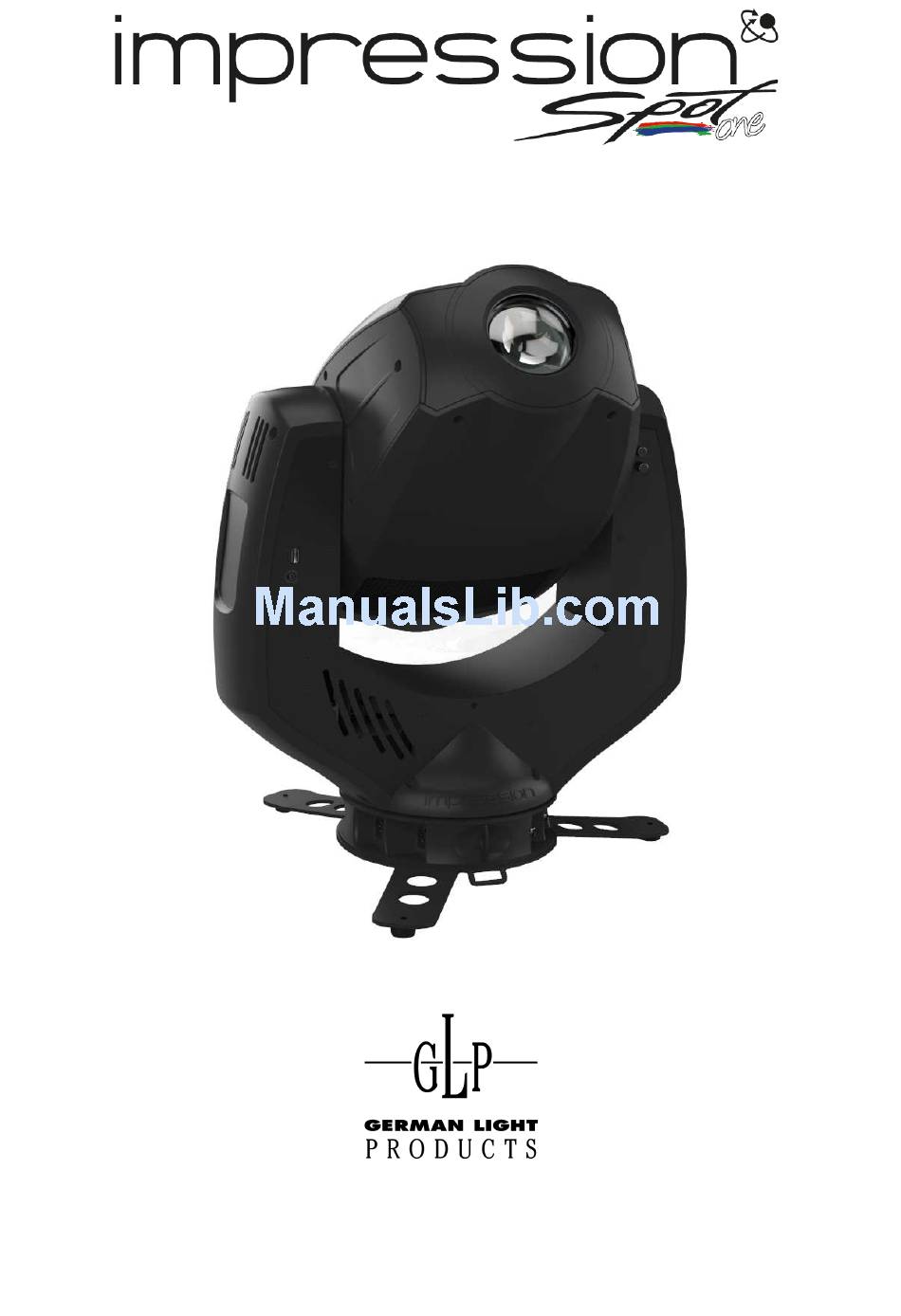

1 Description of Device 1. Moving Head 2. Arm with various cooling vents 3. Tilt-lock to secure and lock the tilt movement 4. Backlight LCD graphical menu (data entry) 5. Base with various connectors and Camlock mounting system 6. DMX- Output (5 Pin) Base Side 1 7.
Safety Instructions e is an advanced technology product. To guarantee smooth operation, it is necessary to follow the following instructions. The manufacturer of this device will not take responsibility of damages through any disregard of the information in this user manual.
rules of technology that are not explicitly mentioned in this manual. 10. Use only original spare parts. Any structural modification on the system will terminate all warranty claims. 11. Please keep this instruction manual for future reference. 2 Preparation and Installation 2.1 Mounting e is fully operational whether it hangs or is mounted to a wall.
2.1.1 Mounting on the floor (upright) To operate the e in an upright position, please use the dedicated floor-stand which is shipped with all original fixtures. The floor stand is mounted to the base of the fixture using the two Camlock quarter turn fasteners.
2.1.2 Mounting in sideways position To operate the e in a sideways position, please use an additional mounting bar, available from GLP or one of their agents. This mounting bar is fixed via the four camlock quick-release connectors. Two half-couplers or clamps are then used to hang fixture. This technique is necessary to cope with the additional torque in this mounting position.
2.3 Connections 2.3.1 Power Supply Autosensing ~100-240 Volt AC, 50-60 Hz, earth contact type plug via Powercon Connected load 450 VA (W) <=> T8A (micro-fuse 6.3x32mm) Disconnect from the mains supply before changing the fuse and use only the above described micro-fuse type. 2.3.2 DMX USITT DMX-512 Standard input/output via 3 pin and 5 pin connectors.
Page 10
Allows selection of the desired DMX Mode Mode Fixture works in "Compressed" mode Compressed also section 4 Fixture works in "Normal" mode see also Normal section 4 Fixture works in "High Resolution" mode High- see also section 4 Resolution Defines whether the last DMX signal is stored, or the lamp is switched OFF in case of signal interruption Hold Values...
Page 11
Resetting all functions to original values Set Default Status Version Shows the current software version Reset Hardware Hardware reset adjust Reset all boards Head Reset only headboard Reset only Gobo & Iris Reset only Focus, Zoom, Prism Reset only Pan Tilt Reset only Tilt Temperatures...
Page 12
Effectwheel Instantaneous value for effect wheel rot. rot. Instantaneous value for prism Prisma Instantaneous value for iris Iris Adjustments for all functions. Use code to enter calibration. (only for authorized Service Adjust persons) Adjust for pan Tilt Adjust for tilt Gobo1 Adjust for Gobo 1 Gobo 1 rot.
4 Changing Gobos and the Effect wheel 4.1 Changing Gobos and the Effect wheel s equipped both with Aluminum- and Glass gobos (outside diameter 27 mm, image size 21 mm). When using customized Gobos like company logos and writing the recommended image size is 18 mm. You can use either Aluminum (thickness = 0.5 mm) or glass gobos (thickness = 1.1 - 3.0 mm).
towards the front lens. 4.1.2 Changing rotating gobos 1) Open the fixture, using the quarter turn screws on the top cover. 2) Press the gobo holder at the outer part of the wheel carefully out of the hub. Pull it softly out of the central spring holder jig. 3) Now the gobo itself can be exchanged inside the gobo holder.
Page 22
Gobowheel 1 (Rotation Gobos Ø 27 mm ) Position 4 Circles Vertical Bars Two Light Tunnels Triangles Random Dash Mini Dots Medium Starry Night Dense German Light Products GmbH (Instruction version 1.6) / from software version 1.19...
Page 23
Gobowheel 2 (Rotation Gobos Ø 27 mm) Position Cone Leaves Foliage Teeth Shreds Angry Hurricane Shredded Earth Diamond Pattern German Light Products GmbH (Instruction version 1.6) / from software version 1.19...
4.1.3 Changing the effect wheel 1) Open the fixture. 2) Release the mechanical stop of the effect and move it up. 3) The Effect wheel can now be tilt out by hand. 4) The wheel itself is clipped on the wheel axis. 5) To remove it please use a slotted screwdriver and lift it out carefully from the wheel axis of the effect wheel.
Page 25
Effect wheel insertion and spares: STANDARD SPARE SPARE SPARE SPARE German Light Products GmbH (Instruction version 1.6) / from software version 1.19...
5 Maintaining and Cleaning the e is a low maintenance fixture. It is only necessary to clean the lenses, air inlets and outlets from time to time. For safe operation it is absolutely essential that the fixture is kept clean and that dust, dirt and smoke-fluid residues must not build up on, or within, the fixture.
6 Technical Specifications Power supply Power consumption 700 VA (Watt) Power input Auto sensing 100-240 V AC, 50-60 Hz Fuse protection Micro-fuse 6.3x32 mm, T8A Operational Parameters Max. ambient temp. 45° C / 113° F (integrated overheating switch) Mounting position Any (See Mounting chapter) Lighting System - Additive Color mixing LED type...
7 Index Menu Field ............9 Menu ............... 9 Anleitung Version ..........1 Micro-fuse ............9 Mode-key ............9 Mounting ............6 BGV C1............6 Mounting in hanging Position ......7 Mounting on the Floor ........7 Changing Effect wheel ........24 Circumference ..........
Page 29
German Light Products GmbH (Instruction version 1.6) / from software version 1.19...
