Transmission
Specifications
Engine
Tractor Specifications
Tune-Up/General Maintenance Specifications
Liquid Capacities
Engine Oil Temperature
Viscosity Chart
Chassis
Special Instructions
Special
General
Torque Values
PTO Brake Adjustment
D-160 Flex Coupling
D-200 Flex Coupling
Vehicle Identification Number Explanation
Identification Number
Front Wheel Installation
Section 1
Install Footrest
Install Front Wheel and Tire Assemblies
Section 2 - Pre-Delivery Service
Service the Battery
Adjust Tire Pressure
Mount Steering Wheel
Battery Installation
Check Engine Oil Level
Check Transmission Oil Level
Install Seat
Check Wiring and Attaching Hardware
Install Mower Belt Adjustment Bolt
Install Drawbar Hitch Pin
Check Front Wheel Alignment
Maintenance Checklist
Engine Oil
Oil Level
Section 3 - General Maintenance
Oil Changes
Oil Filter
Oil Dipstick and Drain Plug
Air Filter
Remove Oil Filter
Air Cleaner
Reading Hydrometer
Battery Chemistry
Battery Check
Fuel Filter
Points and Condenser
Tune up Procedure
Breaker Points
Breaker Point Adjustment
Breaker Point Gap
Timing Mark
Condition
Timing
Carburetor Adjustment
Initial Carburetor Adjustment Chart
Final Adjustment
Twin Governor Idle Spring
Twin Breaker Points
Choke and Throttle Control Routing and Adjustment
Choke Linkage
Choke and Throttle Linkage
Section 4 - Engine
Remove and Replace
Flex Coupling
Engine Mounting
Twin Choke and Throttle Controls
Twin
Belt Routing and Linkage
Brake Adjustment
Clutch/Brakes/Transmission/Transaxle
Transaxle
Parking Brake Lever
8-Speed Belt Routing
8-Speed Clutch Pedal and Brake Adjustments
8-Speed Transmission
8-Speed Transmission Removed
8-Speed Seat Pan Supports
Clutch
Motion Control Friction Adjustment
Brake/Motion Control Linkage
Motion Control Linkage Neutral Adjustment
Detent Alignment Adjustment
Remove and Replace Motion Control Linkage
Remove and Replace Input Pulley
Remove and Replace Pump/Motor
Transmission/Transaxle
Push Valve Function
Implement Relief/Charge Valve
Hydrostatic Pump
Hydrostatic Motor End Cap
Hydraulic Flushing
Drive Line
Transaxle Assembly
Parking Brake Adjustment
Brake Band Adjustment
Park Brake Adjustment
Transaxle Installation
Hydraulic Manifold
Transaxle Top Bolts
Lowering Transaxle
Transaxle Removed
Raising Transaxle
Mounting Pad Cover
O Ring Installation
Pump Installation
Transaxle Front Bolts
Manifold Installation
O Ring Ports
Aligning Pins
Temperature Sending Unit
Control Rod Connections
Side Panel Installation
Pump Series Engagement
Motor Removal
Motor Mounting Area
Motor Installation
Manifold Removal
Protected Seal Rings
Ring and Bolt Locations
Rear Manifold Pad in Place
Positioning Front of Manifold
Front Manifold Pad Installed
Implement Relief Valve
Acceleration Valves
Charge and Implement Relief Valves
Hydraulic Flushing Instructions
Hydraulic Hose and Line Routing
Ignition System
Charging System
Interlock Switches
Section 6 - Electrical System
Lighting Circuit
Wiring Harness
Charging System Test
Ammeter Test
Interlock Switch Locations and Replacements
PTO Interlock Switch
Seat Switch
Harness Routing
Wiring Diagram
Fuse Holder
Control Console Wiring
Headlight and PTO Wiring
D-200 Wiring Diagram
Twin Harness Routing
Twin Wiring Diagram
Attachment Mounting Locations
MID Lift Trunnion Adjustment
Remove Lift Linkage
Section 7 - Attachment Lifts
Hydraulic Valve Removal
Remove Hydraulic Valve
Remove/Overhaul Hydraulic Cylinder
Remove Hydraulic Valve Handle
Overhaul Hydraulic Valve
Attachments Mounting Locations
Remove Hydraulic Lift Mechanism
Remove Hydraulic Cylinder
Lower Adjust,Emt
Steering
Section 8 - Chassis
Steering Gear Bracket
Install Steering Gear
Remove Steering Gear
Wheel Alignment Adjustment
Overhaul Steering Gear
Steering Gear Lever
Adjusting Plug
Steering Gear Disassembled
Steering Gear Housing
Lever Gauge Adjustment
Adjusting Plug Installed
Adjusting Lever Stud
Remove PTO Clutch
PTO Clutch/Brake Adjustment
Power Take-Off (PTO)
PTO Clutch Adjustment
Clutch Removal
PTO Clutch/Maintenance
Clutch Disassembly
Clutch Reassembly
Retaining Ring Removal
Clutch Installation
Installing PTO Clutch
PTO Clutch Rod
Installing Clutch Bar
PTO Clutch Assembled
Advertisement
Quick Links
1
Table of Contents
2
Transmission
3
Engine
Download this manual
See also:
Owner's Manual
B
c
D

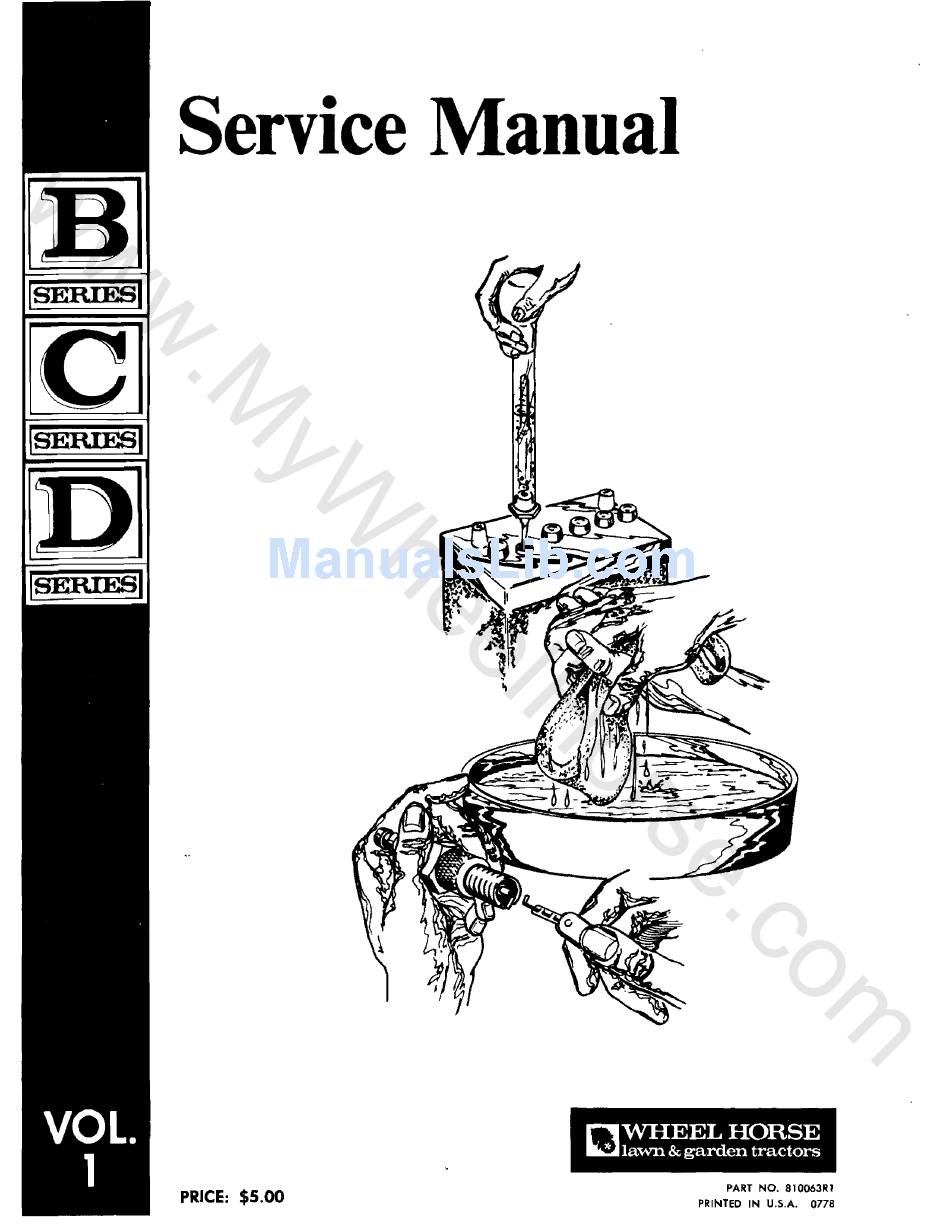

Service Manual
