Summary of Contents for FiveO EVE5

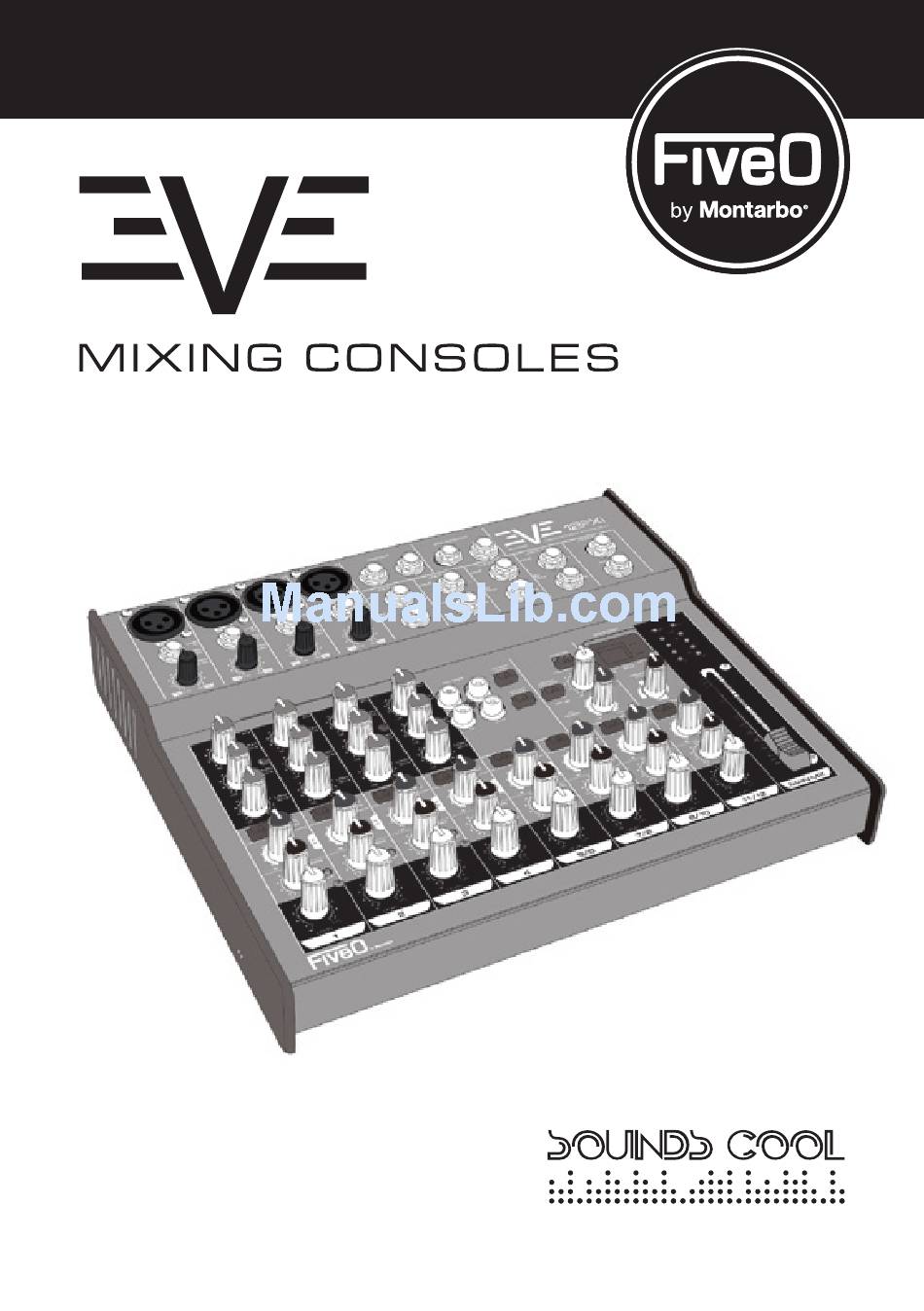

- Page 1 EVE5 | EVE10FX | EVE12FX | EVE10FXi | EVE12FXi PROFESSIONAL MIXERS OWNER’S MANUAL...
-
Page 2: Important Precautions
Information on Disposal for Professional Users In the European Union | If the product is used for business pur- poses and you want to discard it: please contact your FiveO by The lighting flash with arrowhead symbol within an equilateral Montarbo ®... -
Page 3: Table Of Contents
Models EVE10FX and EVE10FXi Models EVE12FX and EVE12FXi 1. Control elements and connectors 1.1 Mono channel 1.2 Stereo channel 1.3 FX (not present in EVE5) & PHANTOM sections FX PRESETS 1.4 Phones 1.5 Main Mix 1.6 Rear panel 2. Connectors wiring 3. -
Page 4: Introduction
Please, in order to enjoy each feature of your new mixer thus achieving the best sonic results, take a few moments to carefully read these instructions. For further information about your microphone, please check our website www.fiveo.it, or send an email to: mail@fiveo.it... -
Page 5: Installation
DIGITAL PORTS (FXi models only) In order to give further versatility and to answer to most recent hi-tech oriented customers needs, we provided some models of our EVE mixing console of several digital audio ports. USB I/O is useful for generic multi-purpose connections to computer, MP3 players and so on. -
Page 6: Tips
(not in EVE5), while checking with louder signals Master section output LED ladder. If the signal is too hot, please depress the sensitivity switch, setting it to +4 position. CD/TAPE connections have no level control, so you’ve to adjust the level from source output level knob/fader. -
Page 7: Model Eve5
Model EVE5 Owner’s manual | EVE SERIES professional mixer... -
Page 8: Models Eve10Fx And Eve10Fxi
Models EVE1OFX Rear panel, model EVE1OFXi Owner’s manual | EVE SERIES professional mixer... -
Page 9: Models Eve12Fx And Eve12Fxi
Model EVE12FX Rear panel, model EVE12FXi Owner’s manual | EVE SERIES professional mixer... -
Page 10: Control Elements And Connectors
EQUALIZER All mono input channels include a 3-band equalizer, except for model EVE5; all bands provide boost or cut of up to 15 dB. In knob central position, the equalizer is inactive. All the models have 12kHz HIGH “shelving”... - Page 11 1.1 MONO CHANNEL FX, PAN, CLIP LED, LEVEL (All models but EVE5 have FX send) FX send enables you to feed signals, through each channel knob, to FX bus. As the name suggests, EVE consoles FX send is intended to drive the internal effects device (reverb, delay, multi-effects etc.).
-
Page 12: Stereo Channel
In particular this filter can reduce stage noise and singer mic handling noises. FX, PAN, CLIP LED, LEVEL (All models but EVE5, have +4/-10 switch, FX send, and CLIP LED) FX send enables you to feed signals, through each channel knob, to FX bus. As the name suggests, EVE consoles FX send is intended to drive the internal effects device (reverb, delay, multi-effects etc.). - Page 13 1.2 STEREO CHANNEL CD/TAPE inputs CD/TAPE IN The RCA-type CD/TAPE inputs are used to add an external signal source (e.g. CD player, MP3 player, audio board, etc.) into the console. These inputs can also be used as a –10dBV stereo line input for tape machines, MIDI instruments or other signal sources, like the output of a second EVE console, that do not require any processing.
-
Page 14: Fx (Not Present In Eve5) & Phantom Sections
1.3 FX & PHANTOM SECTIONS FX SEND + PHONES OUT The FX SEND 6,35mm. (1/4”) TS unbalanced output connector (not present in EVE5) can be connected to the input of an external effects unit. The post-fader FX mix you created using each input channel FX knob is sent to the external effects unit via the FX SEND output. -
Page 15: Fx Presets
FX presets 00-39 REVERBS 40-59 EARLY REFL./DELAY 74-79 PITCH Small Hall 1 Early Reflection 1 Pitch Shift detune Small Hall 2 Early Reflection 2 Pitch Shift + 3 Small Hall 3 Early Reflection 3 Pitch Shift + 4 Mid Hall 1 Early Reflection 4 Pitch Shift + 7 Mid Hall 2... -
Page 16: Phones
CTRL ROOM OUT. The PHONES/CTRL MUTE switch allows you to instantaneously mute (OFF position) the listening session, thus listening to FoH sound only. EVE5 is provided with PHONES level knob only, which is located just under the LED ladder and above MAIN MIX knob. -
Page 17: Rear Panel
1.6 REAR PANEL AC POWER IN Connect the adapter output to the 3-pin mains connector on the rear of the console. Use ONLY the supplied AC adapter to connect the console to the mains. The adapter complies with all applicable safety standards. Never connect EVE consoles to the adapter while it is connected to the mains! ... -
Page 18: Technical Specifications
3. TECHNICAL SPECIFICATIONS MONO INPUTS Microphone inputs (EVE Mic Preamp) Type XLR, electronically balanced, discrete input circuit Mic E.I.N. (20 Hz - 20 kHz) @ 0 Ω source resistance -134 dB / 135.7 dB A-weighted @ 50 Ω source resistance -131 dB / 133.3 dB A-weighted @ 150 Ω... - Page 19 MAIN MIX OUTPUTS Type 6.35mm (1/4") TS connector, unbalanced Impedance approx. 120 Ω Max.output level +22 dBu CONTROL ROOM OUTPUTS (all models but EVE5) Type 6.35mm (1/4") TS connector, unbalanced Impedance approx. 120 Ω Max. output level +22 dBu HEADPHONES OUTPUT Type 6.35mm (1/4") stereo connector, unbalanced...
- Page 20 The product is compliant with the EU legislation. Elettronica Montarbo srl via G. di Vittorio 13 | 40057 Cadriano Granarolo Emilia (BO) ITALY T +39 051 6047711 F +39 051 765226 @ mail@fiveo.it www.fiveo.it Company under the control of EKO Music Group SpA...
