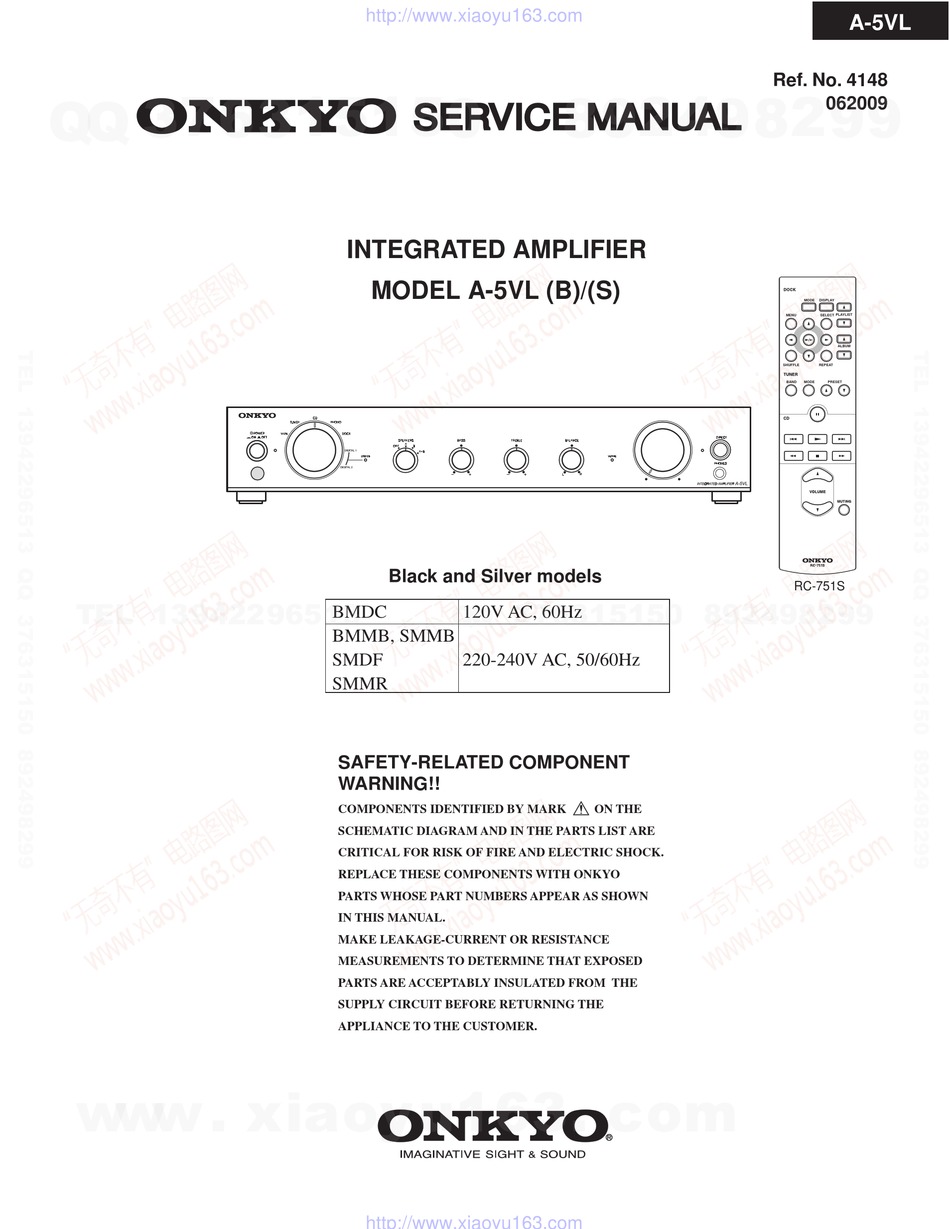

SERVICE MANUAL
SERVICE MANUAL
INTEGRATED AMPLIFIER
MODEL A-5VL (B)/(S)
Black and Silver models
BMDC
BMMB, SMMB
SMDF
SMMR
SAFETY-RELATED COMPONENT
WARNING!!
COMPONENTS IDENTIFIED BY MARK
SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE
CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK.
REPLACE THESE COMPONENTS WITH ONKYO
PARTS WHOSE PART NUMBERS APPEAR AS SHOWN
IN THIS MANUAL.
MAKE LEAKAGE-CURRENT OR RESISTANCE
MEASUREMENTS TO DETERMINE THAT EXPOSED
PARTS ARE ACCEPTABLY INSULATED FROM THE
SUPPLY CIRCUIT BEFORE RETURNING THE
APPLIANCE TO THE CUSTOMER.
x
ao
u163
y
i
http://www.xiaoyu163.com
2 9
8
Q Q
3
6 7
1 3
1 5
120V AC, 60Hz
220-240V AC, 50/60Hz
ON THE
co
.
9 4
2 8
Ref. No. 4148
062009
MODE
DISPLAY
MENU
SELECT
SHUFFLE
REPEAT
BAND
MODE
RC-751S
0 5
8
2 9
9 4
2 8
m
A-5VL
9 9
PLAYLIST
ALBUM
PRESET
9 9
Advertisement
Table of Contents
Related Manuals for Onkyo A-5VL
Summary of Contents for Onkyo A-5VL
-
Page 1: Integrated Amplifier
COMPONENTS IDENTIFIED BY MARK ON THE SCHEMATIC DIAGRAM AND IN THE PARTS LIST ARE CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. REPLACE THESE COMPONENTS WITH ONKYO PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL. MAKE LEAKAGE-CURRENT OR RESISTANCE... -
Page 2: Service Procedure
A-5VL 3 7 63 1515 0 SERVICE PROCEDURE 1. Replacing the fuses This symbol located near the fuse indicates that the fuse used is show operating type, For continued protection against fire hazard, replace with same type fuse , For fuse rating, refer to the marking adjust to the symbol. - Page 3 A-5VL 3 7 63 1515 0 ADJUSTMENT PROCESURE OUTPUT OFFSET VOLTAGE Conditions: Non load, no signal. 1. Set the voltage at L-ch speaker terminal to 0mV +/- 10mVDC by adjusting R513 of BAAF-0249. Same as R514 (R-ch). 2. After 2 minutes, set the voltage at speaker terminal to 0mV +/- 10mV again.
-
Page 4: Exploded View
A-5VL 3 7 6 3 1 5 1 5 0 A017 A011 EXPLODED VIEW x 4 pcs. x 6 pcs. A106 x 7 pcs. <MDF> only A018 U001 A002 x 4 pcs. A115 A301A A205 A310 x 2 pcs. - Page 5 A-5VL 3 7 6 3 1 5 1 5 0 BLOCK DIAGRAM R2S15215FP SP-A TONE Phono VL Digital SP-B TONE NJM4556 Head Phone 1 3 9 4 2 2 9 6 5 1 3 DAC/DIR DAC/DIR 5V/3.3V T951 NPT-1487...
- Page 6 R590 Q916 2.2(1/2W) 2SC2712-GR R932 C936 390K R924 R916 w w w 2.2(1/2W) Q506B S1NB60 HN3A51F D909 R933 UDZS24B D908 Q506A u 1 6 3 D907 Only A-5VL UDZS24B +17V R915 R923 390K C935 Q915 2SA1162-GR 2SA1488-Y +21V Q909 http://www.xiaoyu163.com...
- Page 7 A-5VL A-5VL SCHEMATIC DIAGRAM-2 3 7 6 3 1 5 1 5 0 U010 AC INLET TERMINAL U003 SPEAKER TERMINAL PC BOARD BAASP-0269 PC BOARD R449 C956 BAPS-0272 NPT-1586 U008 BAPS-0270 DE1E3KX102ME4BA01 R337 100(1/4W) T901 +18V CAUTION Q347 78M18...
- Page 8 A-5VL 3 7 6 3 1 5 1 5 0 SCHEMATI DIAGRAM-3 DIGITAL SECTION U011 DIGITAL AMP. CIRCUIT PC BOARD BADG-0250 C225 -5.74V 332J/TF R259 R231 R223 NET_VP12_VLSC Q203 C229 4.7(1/4W) PCM1796 COAX IN C235 NE5532A R257 102J/TF R283...
- Page 9 A-5VL 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEW-1 U001: DIGITAL INPUT CIRCUIT PC BOARD BAAF-0249 Q627 R661 R663 C648 Q516 R572 C631 Q621 C519 R677 R675 Q514 R640 D502 C530 R559 R561 C647 R571 R532 R575 R577...
- Page 10 A-5VL 3 7 6 3 1 5 1 5 0 PRINTED CIRCUIT BOARD VIEW-4 U003 SPEAKER R337 R349 R313 Q313 Q309 TERMINAL PC BOARD R305 C311 C309 R447 C391 C307 Q303 Q305 R643 R303 C641 R345 R647 C913 BAAPS-0269...
- Page 11 A-5VL 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEW-2 U011 DIGITAL INPUT CIRCUIT PC BOARD (BADG-0250) C222 R220 R263 C250 C230 C216 C238 R216 R266 R210 C236 R269 R212 R208 C266 Q204 R270 R206 R271 R204 R242 P203...
- Page 12 A-5VL 3 7 6 3 1 5 1 5 0 PRINTED CIRCUIT BOARD VIEW-3 U002 DISPLAY CIRCUIT PC BOARD BADIS-0268 BCDIS-0268 25140268B P702 J731 C717 P701B STBY LED POWER LED J732 POWER KEY C738 J739 X701 C736 +5V_VDD J727...
-
Page 13: Printed Circuit Board View
A-5VL 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEW-5 U008 POWER SUPPLY PC BOARD BAPS-0270 P959 C956 RL951 J958 J955 J957 R958 R954 R953 R951 P958 P957 Soldering side view L 13942296513 U010 AC INLET TERMINAL PC BOARD... - Page 14 A-5VL 3 7 63 1515 0 PRINTED CIRCUIT BOARD VIEW-6 U004 INPUT SELECTOR PC BOARD BASW-0276 S701 U005 HEADPHONE TERMINAL PC BOARD BAETC-0273 JL703B 25140276 P882 BCSW-0276 Soldering side view C383 C384 BCETC-0273 25140273 Soldering side view L 13942296513...
-
Page 15: Pin Arrangement
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q218: HIGH FEATURE96kHz 24bit DIR (AK4112BVF)-1 PIN ARRANGEMENT CM0/CDTO DVDD CM1/CDTI DVSS OCKS1/CCLK TVDD OCKS0/CSN V/TX MCKO1 MCKO2 View DAUX BICK AVDD SDTO LRCK AVSS RX2/DIF0 FS96 P/SN... - Page 16 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q218: HIGH FEATURE96kHz 24bit DIR (AK4112BVF)-2 BLOCK DIAGRAM AVSS AVDD MCKO1 MCKO2 Clock Clock X'tal Input Recovery Generator Oscillator Selector 96kHz FS96 Detect V/TX DAUX DAIF LRCK BICK...
-
Page 17: Pin Description
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q218: HIGH FEATURE96kHz 24bit DIR (AK4112BVF)-3 PIN DESCRIPTION Pin Name Function Validity Flag Output Pin in Parallel Mode Transmit channel (through data) Output Pin in Serial Mode X'tal Input Pin... -
Page 18: Ic Block Diagrams And Terminal Descriptions
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-1 Q327 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-1/3 SYSTEM BLOCK DIAGRAM Multi Multi Rch Tone Lch Tone CLOCK DATA MCU I/F Tone Bass &... - Page 19 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-2 Q327 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-2/3 BLOCK DIAGRAM AND PIN CONFIGURATION 35 34 31 30 37 36 AVCC DGND...
- Page 20 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAMS AND TERMINAL DESCRIPTIONS-3 Q327 : R2S15211FP (8 ch Electronic Volume and 11 Input Selector and Tone Control)-3/3 TERMINAL DESCRIPTION PIN No. Name Function 19,17, FROUT,FLOUT, 14,12, 6-OUT,5-OUT, Output pin of FL/FR/C/SW/SL/SR/SBL/SBR channel...
- Page 21 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q601/Q602: IRS20954S DIGITAL AUDIO DRIVER-1 LEAD DEFINITIONS Pin # Symbol Description Floating input positive supply Shutdown timing capacitor, referenced to VSS PWM non-inverting input, in phase with HO...
- Page 22 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q601/Q602: IRS20954S DIGITAL AUDIO DRIVER-2 BLOCK DIAGRAM FLOATING INPUT DETECT DETECT HIGH SIDE INPUT LOGIC 10.4V LEVEL SHIFT FLOATING HIGH SIDE LEVEL LEVEL SHIFT SHIFT 5V REG DETECT...
- Page 23 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q205-Q210: NE5534AD OPE AMP. (TOP VIEW) COMP/BAL BALANCE IN− COMP CC− Q211-Q214/Q321/Q322: NE5532AD OPE AMP. (TOP VIEW) 1OUT L 13942296513 2OUT 1IN− 2IN− 1IN+ 2IN+ CC− u163 http://www.xiaoyu163.com...
-
Page 24: Pin Configuration
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q519/Q520: NJM78LxxUA 3-TERMINAL VOLTAGE REGULATOR PIN CONFIGURATION Pin arrangement 1. Output 2. GND. 3. Input L 13942296513 u163 http://www.xiaoyu163.com... -
Page 25: Pin Assignments
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q203/Q204: PCM1796DB AUDIO DIGITAL to ANALOG CONVERTER-1 PIN ASSIGNMENTS ZEROL ZEROR AGND3L MSEL L– LRCK DATA AGND2 DGND AGND1 R– AGND3R PCM1796 (TOP VIEW) BLOCK DIAGRAM L 13942296513 I OUT L–... -
Page 26: Terminal Description
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q203/Q204: PCM1796DB AUDIO DIGITAL to ANALOG CONVERTER-2 TERMINAL DESCRIPTION TERMINAL DESCRIPTIONS DESCRIPTIONS NAME AGND1 – Analog ground (internal bias) AGND2 – Analog ground (internal bias) AGND3L – Analog ground (L-channel DACFF) AGND3R –... -
Page 27: Pin Assignment
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q703: S-24CS16A0I-J8V1G (2-Wire CMOS 16k bit E ROM) PIN ASSIGNMENT 8-Pin SOP Top view Function Number Name No connection No connection TES pin Ground Serial data input/output Serial clock input... -
Page 28: Delay Circuit
A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q951: S-80127CNMC-JKM VOLTAGE DETECTOR (12.7V N-ch open drain, Active L: out) PIN CONFIGURATION PIN DESCRIPTION Symbol Description ON/OFF switch for delay time Top view Non-connection Voltage detection output pin Voltage input pin *1. - Page 29 A-5VL 3 7 63 1515 0 IC BLOCK DIAGRAM/ TERMINAL DESCRIPTION Q201/Q216: MPC2933BHB-AZ VOLTAGE REGULATOR Q702: MPC2905AT PIN CONFIGURATION 1: INPUT 2: GND 3: OUTPUT 4: GND (Fin) BLOCK DIAGRAM INPUT Safe operating area protection Start-up Reference L 13942296513...
-
Page 30: Microprocessor Block Diagram
A-5VL 3 7 63 1515 0 MICROPROCESSOR BLOCK DIAGRAM ROM 84K 64PIN SELECTOR_SW 50 AD SELECTOR Detect Volume VOL_POS 51 AD position VOL_UP 35 SEL_DATA Selector, Volume IC VOL_DOWN 36 SEL_CLK MotorVolume R2S15211FP TA72915 BASS_IN 48 AD BASS TREBLE_IN... -
Page 31: Microprocessor Terminal Description
A-5VL 3 7 63 1515 0 MICROPROCESSOR TERMINAL DESCRIPTION PIN NAME SIGNAL FUNCTION P33/SSI REMIN Remote control input data. P34/~SCS/SDA For flash writer. MODE MODE P43XCIN SPL_DET P44/XCOUT SPR_DET ~RESET RESET Reset pin. P47/XOUT XOUT X’tal output pin (6MHz). -
Page 32: Packing Procedure
A-5VL 3 7 63 1515 0 PACKING PROCEDURE A912 A922 A913 A912 <MMB> <MDC><MUP> A923 A914 A203 <MDC, A552 MMB> x 2 pcs A924 A915 <MDC> A901 A916 <MMB> <MDF> A917 A902 <MMR> P953 <MDC> A551 A903 <MMR> A204... -
Page 33: Exploded View Parts List
1/44 PAGE 3 7 6 3 1 5 1 5 0 PARTS LIST A-5VL NOTE: : Safety mark <MDC>: Canadian model NOTE: <MMB> : Britain model THE COMPONENTS IDENTIFIED BY MARK <MDF>: Taiwan model CRITICAL FOR RISK OF FIRE AND ELECTRIC SHOCK. - Page 34 COVER EXPV A110 CUSHION (BUTYL) 28141748 0.08:MT EXPV A111 CUSHION T0.9x400x70 28141816B EXPV EXPV A112 REAR PANEL A-5VL MDC 27124018A <MDC> A112 REAR PANEL A-5VL MMB 27124017A <MMB> EXPV EXPV A112 REAR PANEL A-5VL MDC 27124018A <MDF> A112 REAR PANEL...
- Page 35 http://www.xiaoyu163.com 3/44 PAGE 3 7 6 3 1 5 1 5 0 A138 KNOB (POWER)AS(B) 28326787 EXPV <B> A138 KNOB (POWER)AS(S) 28326788 <S> EXPV A140 CUSHION T10*10*10EPT 28141813 EXPV EXPV A141 CUSHION T5*20*15HBK 28141818 A143 SPACER 27270439 POWER SWITCH EXPV A151 F PANEL 27213275...
- Page 36 http://www.xiaoyu163.com 4/44 PAGE 3 7 6 3 1 5 1 5 0 T902 P TRANS NPT-1586M 2301964 EXPV ! <MMB> only T902 P TRANS NPT-1586D 2301963 ! <MDF> only EXPV T902 P TRANS NPT-1586M 2301964 ! <MMR> only EXPV EXPV U001 Digital Amp.
- Page 37 0.2::MT A206 INST SHEET (CAUTION) 29355769 On unit A301 CARTON A-5VL 29055020 A302A UPC LABEL A-5VL (B)MDC { 1} 29390843 <B MDC> A302A EAN LABEL A-5VL (S)MMB { 1} 29390842A <S MMB> A302A EAN LABEL A-5VL (B)MMB { 1} 29390841A <B MMB>...
-
Page 38: Printed Circuit Board Parts List
P953 or AC CORD AS-BS ( 1) 253425KAW ! <MMB> only PRINTED CIRCUIT BOARD PARTS LIST A-5VL NOTE: : Safety mark <MDC>: Canadian model <MMB> : Britain model L 1 3 9 4 2 2 9 6 5 1 3 <MDF>: Taiwan model... - Page 39 http://www.xiaoyu163.com 7/44 PAGE 3 7 6 3 1 5 1 5 0 C951 IS C DE1310E472M-KH 3300054 PS0270 C953 IS C MKP R46 224M 3800040S PS0270 C954 IS C MKP R46 224M 3800040S PS0270 PS0270 C955 IS C MKP R46 224M 3800040S C956 PLA C...
- Page 40 L 1 3 9 4 2 2 9 6 5 1 3 T951 P TRANS NPT-1487P 2301724GR <MMR> PS0270 PRINTED CIRCUIT BOARD PARTS LIST A-5VL U002 Display circuit PC board BADIS-0268-1A 1B237568-1A <MDC><MDF> U002 Display circuit PC board BADIS-0268-1B 1B237568-1B <MMB>...
- Page 41 http://www.xiaoyu163.com 9/44 PAGE 3 7 6 3 1 5 1 5 0 U005 Headphone terminal PC board BAETC-0273-1D 1B237573-1D <MMR> U006 Volume ciruit PC board BAETC-0274-1A 1B237574-1A <MDC><MDF> U006 Volume ciruit PC board BAETC-0274-1B 1B237574-1B <MMB> U006 Volume ciruit PC board BAETC-0274-1D 1B237574-1D <MMR>...
- Page 42 http://www.xiaoyu163.com 10/44 PAGE 3 7 6 3 1 5 1 5 0 C331 UPZ C 2AUPZTF221JE 376332214T DIS0268 C332 UPZ C 2AUPZTF221JE 376332214T DIS0268 C341 UPZ C 2AUPZTF221JE 376332214T DIS0268 DIS0268 C342 UPZ C 2AUPZTF221JE 376332214T C349 TF C ECQ-V50V-223J 374722234T DIS0268 C350...
- Page 43 http://www.xiaoyu163.com 11/44 PAGE 3 7 6 3 1 5 1 5 0 C382 TF C ECQ-V50V-104J 374721044T DIS0268 C383 MKT C B32529C0102J289 376491024T DIS0268 C384 MKT C B32529C0102J289 376491024T DIS0268 DIS0268 C385 TF C ECQ-V50V-104J 374721044T C386 TF C ECQ-V50V-104J 374721044T DIS0268 C389...
- Page 44 http://www.xiaoyu163.com 12/44 PAGE 3 7 6 3 1 5 1 5 0 C641 C-CERA C CK725F1E-104Z1 332161040R1 DIS0268 C642 C-CERA C CK725F1E-104Z1 332161040R1 DIS0268 C701 C-CERA C CK725F1E-104Z1 332161040R1 DIS0268 DIS0268 C702 UTSP C CE04W16V-470M(UTSP) 397544717T C703 C-CERA C CK725F1E-104Z1 332161040R1 DIS0268 C704...
- Page 45 http://www.xiaoyu163.com 13/44 PAGE 3 7 6 3 1 5 1 5 0 C732 C-CERA C CC725CH1H-102J1 342101024R1 DIS0268 C733 ELECT C CE04W16V-100M 355741019T DIS0268 C734 C-CERA C CK725F1E-104Z1 332161040R1 DIS0268 DIS0268 C735 ELECT C CE04W16V-47M(S) 353744709T C738 ELECT C CE04W16V-47M(S) 353744709T DIS0268 C740...
- Page 46 http://www.xiaoyu163.com 14/44 PAGE 3 7 6 3 1 5 1 5 0 C928 MKT C B32529C0102J289 376491024T DIS0268 C929 MKT C B32529C0102J289 376491024T DIS0268 C930 MKT C B32529C0102J289 376491024T DIS0268 DIS0268 C931 TF C ECQ-V50V-104J 374721044T C932 TF C ECQ-V50V-104J 374721044T DIS0268 C935...
- Page 47 http://www.xiaoyu163.com 15/44 PAGE 3 7 6 3 1 5 1 5 0 D610 ZENER D UDZS5.6B 224550560R2 DIS0268 D611 ZENER D UDZS5.6B 224550560R2 DIS0268 D612 ZENER D UDZS5.6B 224550560R2 DIS0268 DIS0268 D701 C-DIODE 1SS352 223234R2 D701 or C-DIODE 1SS355 ( 1) 223269R2 DIS0268 D702 ZENER D...
- Page 48 http://www.xiaoyu163.com 16/44 PAGE 3 7 6 3 1 5 1 5 0 JL301A WIRE TRAP NPLG-7P590 25055628 DIS0268 JL301B WIRE HOL NSCT-7P878 25051091 DIS0268 JL302 1007#24 .2/7HAND B 72120060505 DIS0268 DIS0268 JL303 1007#24 .2/7HAND B 72120060505 JL351 JUMPER LEAD JL3 100 B(6-6) 3J100606B15 DIS0268 JL351A...
- Page 49 http://www.xiaoyu163.com 17/44 PAGE 3 7 6 3 1 5 1 5 0 P605B PLUG NPLG-7P121 25055137 DIS0268 P701A SOCKET NSCT-29P2122 25052225 DIS0268 P701B SOCKET NSCT-29P2159 25052262 DIS0268 DIS0268 P702 PLUG NPLG-8P660 25055704 P881 ST JACK MSJ-064-05A SR 25045783 Silver DIS0268 P882 CRIMP AS 2061712080UL...
- Page 50 http://www.xiaoyu163.com 18/44 PAGE 3 7 6 3 1 5 1 5 0 Q310 2SA970-BL(TPE2_F) 2211396T DIS0268 Q311 2SC2240-BL(TPE2_F) 2211406T DIS0268 Q312 2SC2240-BL(TPE2_F) 2211406T DIS0268 DIS0268 Q313 2SA965-Y(TPE6_F) 2211644T Q314 2SA965-Y(TPE6_F) 2211644T DIS0268 Q315 2SC2235-Y(TPE6_F) 2211654T DIS0268 Q316 2SC2235-Y(TPE6_F) 2211654T DIS0268 Q317 2SC2235-Y(TPE6_F) 2211654T...
- Page 51 http://www.xiaoyu163.com 19/44 PAGE 3 7 6 3 1 5 1 5 0 Q345 78M18HF(NJM78M18FA) 222780185JRC DIS0268 Q345A RADIATOR RAD-51 27160145 DIS0268 Q345B SCREW 3P+6FN(3BC) 82143006GR DIS0268 DIS0268 Q346 79M18HF(NJM79M18FA) 222790185JRC Q346A RADIATOR RAD-51 27160145 DIS0268 Q346B SCREW 3P+6FN(3BC) 82143006GR DIS0268 Q347 78M18HF(NJM78M18FA) 222780185JRC...
- Page 52 http://www.xiaoyu163.com 20/44 PAGE 3 7 6 3 1 5 1 5 0 Q910 or 2SC3851-O ( 1) 2203383 DIS0268 Q910A HEAT SINK RAD-121 27160444 DIS0268 Q910B SCREW 3P+6FN(3BC) 82143006GR DIS0268 DIS0268 Q911 2SC2712-GR 2213145R2 Q912 2SA1162-GR 2214375R2 DIS0268 Q915 2SA1162-GR 2214375R2 DIS0268 Q916...
- Page 53 http://www.xiaoyu163.com 21/44 PAGE 3 7 6 3 1 5 1 5 0 R327 CARBON R R16J-1K 417341024T DIS0268 R328 CARBON R R16J-1K 417341024T DIS0268 R329 CARBON R R16J-330K 417343344T DIS0268 DIS0268 R330 CARBON R R16J-330K 417343344T R331 CARBON R R16J-47K 417344734T DIS0268 R332...
- Page 54 http://www.xiaoyu163.com 22/44 PAGE 3 7 6 3 1 5 1 5 0 R360 C-CARBON R RN72K1J-103JE 435031034R1 DIS0268 R363 CARBON R R16J-330 417343314T DIS0268 R364 CARBON R R16J-330 417343314T DIS0268 DIS0268 R365 CARBON R R16J-220K 417342244T R366 CARBON R R16J-220K 417342244T DIS0268 R367...
- Page 55 http://www.xiaoyu163.com 23/44 PAGE 3 7 6 3 1 5 1 5 0 R407 CARBON R R16J-220K 417342244T DIS0268 R408 CARBON R R16J-220K 417342244T DIS0268 R409 CARBON R R16J-4.7K 417344724T DIS0268 DIS0268 R410 CARBON R R16J-4.7K 417344724T R411 CARBON R R16J-120 417341214T DIS0268 R412...
- Page 56 http://www.xiaoyu163.com 24/44 PAGE 3 7 6 3 1 5 1 5 0 R441 C-CARBON R RN72K1J-000JE 435030004R1 DIS0268 R442 C-CARBON R RN72K1J-221JE 435032214R1 DIS0268 R447 METAL R RNU1/4WCF-100 4500336T DIS0268 DIS0268 R448 METAL R RNU1/4WCF-100 4500336T R449 C-CARBON R RN72K2E-221JE 435222214R1 DIS0268 R450...
- Page 57 http://www.xiaoyu163.com 25/44 PAGE 3 7 6 3 1 5 1 5 0 R650 C-CARBON R RN72K1J-103JE 435031034R1 DIS0268 R651 C-CARBON R RN72K1J-103JE 435031034R1 DIS0268 R652 C-CARBON R RN72K1J-103JE 435031034R1 DIS0268 DIS0268 R653 C-CARBON R RN72K1J-562JE 435035624R1 R654 C-CARBON R RN72K1J-562JE 435035624R1 DIS0268 R665...
- Page 58 http://www.xiaoyu163.com 26/44 PAGE 3 7 6 3 1 5 1 5 0 R728 C-CARBON R RN72K1J-470JE 435034704R1 DIS0268 R729 C-CARBON R RN72K1J-470JE 435034704R1 DIS0268 R730 C-CARBON R RN72K1J-222JE 435032224R1 DIS0268 DIS0268 R731 C-CARBON R RN72K1J-222JE 435032224R1 R734 C-CARBON R RN72K1J-473JE 435034734R1 DIS0268 R735...
- Page 59 http://www.xiaoyu163.com 27/44 PAGE 3 7 6 3 1 5 1 5 0 R766 C-CARBON R RN72K1J-470JE 435034704R1 DIS0268 R767 C-CARBON R RN72K1J-473JE 435034734R1 DIS0268 R768 C-CARBON R RN72K1J-272JE 435032724R1 DIS0268 DIS0268 R769 C-CARBON R RN72K1J-000JE 435030004R1 R770 C-CARBON R RN72K1J-391JE 435033914R1 DIS0268 R771...
- Page 60 http://www.xiaoyu163.com 28/44 PAGE 3 7 6 3 1 5 1 5 0 R804 C-CARBON R RN72K1J-104JE 435031044R1 DIS0268 R805 C-CARBON R RN72K1J-104JE 435031044R1 DIS0268 R806 C-CARBON R RN72K1J-332JE 435033324R1 DIS0268 DIS0268 R807 C-CARBON R RN72K1J-332JE 435033324R1 R808 C-CARBON R RN72K1J-332JE 435033324R1 DIS0268 R809...
- Page 61 X701 CERA LOCK CR06000-TG-A0R 3010433T X701 or CERA LOCK CSTLS6M00G-56-A0 ( 1) 3010427T DIS0268 PRINTED CIRCUIT BOARD PARTS LIST A-5VL U001 Digital input circuit PC board BAAF-0249-1A 1B237549-1A All Destinations U011 Digital Amp. Circuit PC board BADG-0250-1A 1B237550-1A <MDC><MDF> U011 Digital Amp.
- Page 62 http://www.xiaoyu163.com 30/44 PAGE 3 7 6 3 1 5 1 5 0 CIRCUIT NPART NAME DESCRIPTION Q'TY PART NO. REMARKS C202 UTSP C CE04W10V-100M(UTSP) 397531017T AF0249 C203 UTSP C CE04W10V-100M(UTSP) 397531017T AF0249 AF0249 C204 UTSP C CE04W10V-100M(UTSP) 397531017T C205 C-CERA C CK725F1E-104Z1 332161040R1 AF0249...
- Page 63 http://www.xiaoyu163.com 31/44 PAGE 3 7 6 3 1 5 1 5 0 C235 MKT C B32529C0102J289 376491024T AF0249 C236 MKT C B32529C0102J289 376491024T AF0249 C237 C-CERA C CC725CH1H-220J1 342102204R1 AF0249 AF0249 C238 C-CERA C CC725CH1H-220J1 342102204R1 C239 MKT C B32529C0682J289 376496824T AF0249 C240...
- Page 64 http://www.xiaoyu163.com 32/44 PAGE 3 7 6 3 1 5 1 5 0 C504 UTSJ C CE04W50V-22M(UTSJ) 398082207T AF0249 C505 C-FILM C ECHU50V-821J 373028214R2 AF0249 C506 C-FILM C ECHU50V-821J 373028214R2 AF0249 AF0249 C507 UTSP C CE04W50V 47M(UTSP) 397584707T C508 UTSP C CE04W50V 47M(UTSP) 397584707T AF0249...
- Page 65 http://www.xiaoyu163.com 33/44 PAGE 3 7 6 3 1 5 1 5 0 C601 UTSP C CE04W25V-220M(UTSP) 397552217T AF0249 C602 UTSP C CE04W25V-220M(UTSP) 397552217T AF0249 C603 C-CERA C CK725R2J-471J3 332194714R1 AF0249 AF0249 C604 C-CERA C CK725R2J-471J3 332194714R1 C605 C-CERA C CK725R2J-471J3 332194714R1 AF0249 C606...
- Page 66 http://www.xiaoyu163.com 34/44 PAGE 3 7 6 3 1 5 1 5 0 D505 or C-DIODE 1SS355 ( 1) 223269R2 AF0249 D506 C-DIODE 1SS352 223234R2 AF0249 D506 or C-DIODE 1SS355 ( 1) 223269R2 AF0249 AF0249 D601 DIODE M1FL20U 223276R2 D602 DIODE M1FL20U 223276R2 AF0249...
- Page 67 http://www.xiaoyu163.com 35/44 PAGE 3 7 6 3 1 5 1 5 0 Q204 PCM1796DBR 22242403R2 AF0249 Q205 NE5534ADR 22242495R2 AF0249 Q206 NE5534ADR 22242495R2 AF0249 AF0249 Q207 NE5534ADR 22242495R2 Q208 NE5534ADR 22242495R2 AF0249 Q209 NE5534ADR 22242495R2 AF0249 Q210 NE5534ADR 22242495R2 AF0249 Q211 NE5532APSR 22242283R2...
- Page 68 http://www.xiaoyu163.com 36/44 PAGE 3 7 6 3 1 5 1 5 0 Q520 78L05(NJM78L05UA) 222780053R2JR AF0249 Q601 IRS20954S 22242351R2 AF0249 Q602 IRS20954S 22242351R2 AF0249 AF0249 Q603 IRFB4020 2204080 Q604 IRFB4020 2204080 AF0249 Q605 IRFB4020 2204080 AF0249 Q606 IRFB4020 2204080 AF0249 Q607 2SK208-GR 2217434R2...
- Page 69 http://www.xiaoyu163.com 37/44 PAGE 3 7 6 3 1 5 1 5 0 R205 C-CARBON R RN72K1J-331JE 435033314R1 AF0249 R206 C-CARBON R RN72K1J-331JE 435033314R1 AF0249 R207 C-CARBON R RN72K1J-331JE 435033314R1 AF0249 AF0249 R208 C-CARBON R RN72K1J-331JE 435033314R1 R209 C-CARBON R RN72K1J-101JE 435031014R1 AF0249 R210...
- Page 70 http://www.xiaoyu163.com 38/44 PAGE 3 7 6 3 1 5 1 5 0 R240 CARBON R R16J-330 417343314T AF0249 R241 CARBON R R16J-330 417343314T AF0249 R242 CARBON R R16J-330 417343314T AF0249 AF0249 R243 C-CARBON R RN72K1J-472JE 435034724R1 R244 C-CARBON R RN72K1J-472JE 435034724R1 AF0249 R245...
- Page 71 http://www.xiaoyu163.com 39/44 PAGE 3 7 6 3 1 5 1 5 0 R274 C-CARBON R RN72K1J-101JE 435031014R1 AF0249 R275 C-CARBON R RN72K1J-101JE 435031014R1 AF0249 R276 C-CARBON R RN72K1J-000JE 435030004R1 AF0249 AF0249 R277 C-CARBON R RN72K1J-101JE 435031014R1 R278 C-CARBON R RN72K1J-101JE 435031014R1 AF0249 R279...
- Page 72 http://www.xiaoyu163.com 40/44 PAGE 3 7 6 3 1 5 1 5 0 R520 METAL R RNU1/4WCF-47K 4500335T AF0249 R521 METAL R RNU1/4WCF-3.3K 4500323T AF0249 R522 METAL R RNU1/4WCF-3.3K 4500323T AF0249 AF0249 R523 C-CARBON R RN72K1J-122JE 435031224R1 R524 C-CARBON R RN72K1J-122JE 435031224R1 AF0249 R525...
- Page 73 http://www.xiaoyu163.com 41/44 PAGE 3 7 6 3 1 5 1 5 0 R561 C-CARBON R RN72K1J-822JE 435038224R1 AF0249 R562 C-CARBON R RN72K1J-822JE 435038224R1 AF0249 R571 C-CARBON R RN72K1J-224JE 435032244R1 AF0249 AF0249 R572 C-CARBON R RN72K1J-224JE 435032244R1 R575 C-CARBON R RN72K1J-472JE 435034724R1 AF0249 R576...
- Page 74 http://www.xiaoyu163.com 42/44 PAGE 3 7 6 3 1 5 1 5 0 R608 C-CARBON R RN72K1J-332JE 435033324R1 AF0249 R609 C-CARBON R RN72K1J-330JE 435033304R1 AF0249 R610 C-CARBON R RN72K1J-330JE 435033304R1 AF0249 AF0249 R611 C-CARBON R RN72K1J-394JE 435033944R1 R612 C-CARBON R RN72K1J-394JE 435033944R1 AF0249 R613...
- Page 75 http://www.xiaoyu163.com 43/44 PAGE 3 7 6 3 1 5 1 5 0 R643 C-CARBON R RN72K1J-123JE 435031234R1 AF0249 R644 C-CARBON R RN72K1J-123JE 435031234R1 AF0249 R655 C-CARBON R RN72K1J-471JE 435034714R1 AF0249 AF0249 R656 C-CARBON R RN72K1J-471JE 435034714R1 R659 C-CARBON R RN72K1J-000JE 435030004R1 AF0249 R660...
- Page 76 http://www.xiaoyu163.com 44/44 PAGE 3 7 6 3 1 5 1 5 0 R696 C-CARBON R RN72K1J-682JE 435036824R1 AF0249 R699 C-CARBON R RN72K1J-822JE 435038224R1 AF0249 R700 C-CARBON R RN72K1J-822JE 435038224R1 AF0249 L 1 3 9 4 2 2 9 6 5 1 3 u 1 6 3 http://www.xiaoyu163.com...
- Page 77 Tel: 072-831-8023 Fax: 072-831-8163 ONKYO U.S.A. CORPORATION 18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/ ONKYO EUROPE ELECTRONICS GmbH (DUISBURG OFFICE) Hafennr.7602, Logport Office-Center, Bliersheimerstr.80B, 47229 Duisburg, Germany Tel: +49-2065-90198-00 Fax: +49-2065-90198-40 http://www.eu.onkyo.com/ ONKYO EUROPE UK Office...
