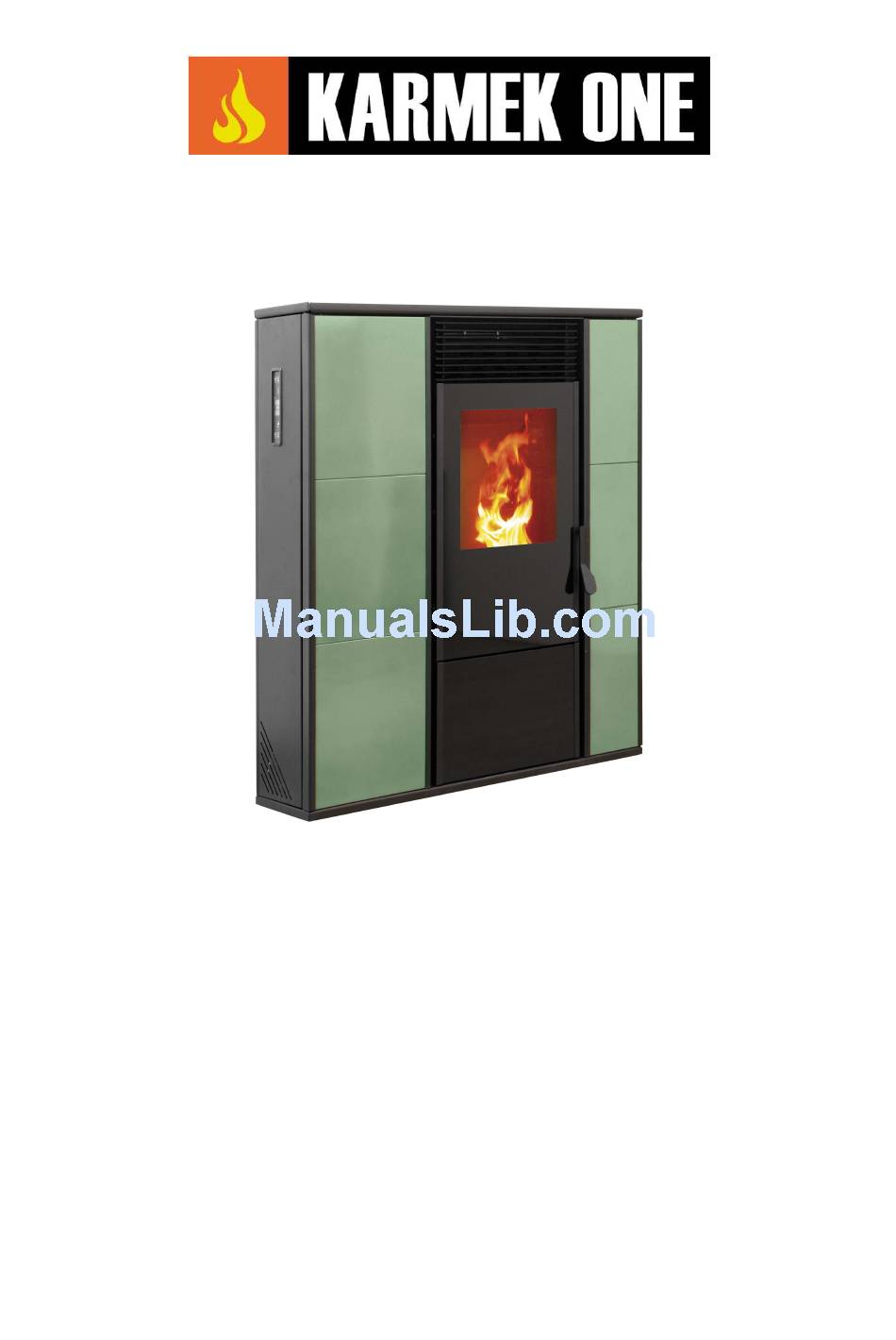

- Page 1 PELLET STOVE ALICE OPERATING AND MAINTENANCE HANDBOOK...
- Page 2 Karmek One S.R.L. PLEASE NOTE: Karmek One reserves itself to carry out unsubstantial changes to the stove’s components, which may not be reported in the present handbook, those being of small entity. Occasional appearance changes from the flyers are due to ordinary seasonal updates.
- Page 3 A. GENERAL INFORMATION a.1 General safety rules a.2 Technical features a.3 Accessory equipment a.4 Identity plate a.5 Guarantee a.6 Suitable fuel a.7 Ordering spares a.8 Waste material B. INSTALLATION INSTRUCTIONS b.1 Initial warnings b.2 Moving and transporting b.3 Positioning b.4 Installing the flue gas outlet b.5 Installing the combustion air inlet pipe b.6 Connecting to the power supply C.
-
Page 4: Solutions To Possible Problems
d.7 Room probe d.8 Sparking plug d.9 Thermocouple E. ORDINARY CLEANING AND MAINTENANCE e.1 Cleaning and maintenance by the customer e.2 Periodic maintenance by the Assistance Center F. ALARMS DISPLAYING f.1 Fumes temperature probe alarm f.2 Unsuccessful lighting alarm f.3 Switching-off while working alarm f.4 Power failure alarm f.5 Room thermocouple alarm G. -
Page 5: General Information
A. GENERAL INFORMATION a.1 General safety rules ATTENTION PLEASE!!! You can never be too cautious: before the installation read and comply with these fundamental Rules: • All local regulations, including those referring to national and European laws, must be respected while installing the stove. •... - Page 6 If anomalies in the functioning should occur, light the stove again only after fixing the problem at its origin. • Karmek One Srl is not responsible for inconveniences, tampering, breakages or any other damage due to non-observance of the instructions reported in this handbook.
-
Page 7: Technical Features
a.2 Technical features In the following pages, we provide you with a list explanatory of the technical features: Nominal power: 10Kw Efficiency: Power supply: 230V 50Hz Power absorption: 127-290W Pellet tank capacity: 20Kg CO measured at 13% of oxygen at nominal thermal power: 0,01% Pellet consumption (Kg/h): 0,8-2 Kg/h... - Page 8 ALICE 1 Rear fumes outlet 2 Side fumes outlet 3 Upper fumes outlet...
-
Page 9: Suitable Fuel
The guarantee certificate, which we consigned to you when you purchased the stove, must be sent to the producer firm Karmek One Srl, 8 days after delivery date the latest; otherwise, the guarantee itself will no longer be valid. The estimated 24-months guarantee is valid exclusively when the installation and test are performed by an authorized Karmek One assistance center. -
Page 10: Installation Instructions
a.8 Waste material Do not drop electrical devices among domestic waste. According to the European Directive 2002/96/CE regarding electrical and electronic devices’ waste material, and its application in conformity to national regulations, exhausted electrical devices must be collected separately, in order to be reutilized in an eco-friendly way. - Page 11 The information reported above is purely indicative for a correct installation; Karmek One Srl is not responsible for what concerns the installation.
- Page 12 INSTALLATION INSTALLATION WITH WITHOUT A AN EXISTING FLUE MASONRY FLUE Masonry flue Steel piping Combustion air is Combustion air is drawn from the drawn from the inside inside...
-
Page 13: Connecting To The Power Supply
b.5 Installing the combustion air inlet pipe For any described solution, two alternatives are possible: Draw the air directly from the outside through a piping (internal Ø 50mm; max length 1,5m), ● connected to the air inlet pipe on the back of the stove. Draw the air directly from the installation room, given that in the proximity of the stove an air ●... - Page 14 ELECTRICAL SCHEME...
- Page 15 C. OPERATING INSTRUCTIONS c.1 Initial warnings All regulations, included those referring to national and European laws, must be respected when installing the device. Do not use the device as an incinerator or in any other way than that for which it was designed. Do not use any fuel other than pellets.
- Page 16 c.3 Display In the following scheme, we report the various functions of the display. IMPORTANT: If the temperature is not set within a few seconds, the display will automatically return to the previous screenshot.
-
Page 17: Lighting The Stove For The First Time
c.4 Lighting the stove for the first time A skilled technician must perform the first lighting; otherwise, the guarantee will expire. c.5 Activating the stove When the pellet tank is filled for the first time, you must remember that the screw tube, which feeds the grate, is completely empty;... -
Page 18: The Remote Control
c.7 Switching off the stove You can switch the stove off by pushing the key n. 4 for a few seconds. The message “OFF” will appear on the display; the pellet flow is interrupted and the speed of the smoke intake motor will increase to lower the temperature. - Page 19 c.9 Managing the automatic lighting (chronothermostat) The automatic lighting function permits to weekly program the lighting and switching off of the stove. Through this function, it is possible to set two daily lightings; it is also possible to avoid extra programming, by memorizing the set data.
- Page 20 UT08/UT09: they indicate the starting and stopping time of the Program 2, if the UT01 setting is set on the weekly mode (different from OFF) UT10: it modifies the weekdays you wish the Program 2 to be on. By pressing the “2” key you run over the days, and by pressing the “1”...
- Page 21 D. FUNCTIONS OF THE MECHANICAL AND ELECTRIC COMPONENTS d.1 Screw motor The screw motor drives the screw, which brings the pellets from the tank to the grate. d.2 Smoke intake motor The smoke intake motor is fixed on the extraction turbine on the back of the stove. Its function is to intake and to expel the fumes that form in the combustion chamber.
-
Page 22: Sparking Plug
d.6 Fumes probe fumes probe surveys fumes’ temperature in the intake turbine, and it operates when the temperature reaches 270° C, driving the stove to the conservation mode “RIS” d.7 Room probe The room probe is positioned on the back of the stove and it surveys the temperature of the room where the stove is located. - Page 23 E. ORDINARY CLEANING AND MAINTENANCE e.1 Cleaning and maintenance by the costumer Before lighting the stove, it is advisable to clean the inside of the stove. Open the door and vacuum the fire table. ● Remove the great, verify its cleanliness and clean the holes if necessary. ●...
- Page 24 F. ALARMS DISPLAYING The alarms are displayed on the command panel; on the first line the message ALAR appears, while on the second line the typology of the anomaly is displayed. The occurring of an alarm provokes the immediate stop of the stove, and only after solving the problem it is possible to restart the stove, following the instructions already reported on this handbook.
- Page 25 G. SOLUTION TO POSSIBLE PROBLEMS PROBLEM POSSIBLE CAUSE SOLUTIONS The display is blank and Lack of power. Check if the power supply cable is the keys do not work. connected. Anomalies in the connection between the display and the Check if the display and the card are card.
- Page 26 PROBLEM POSSIBLE CAUSE SOLUTIONS The stove is blocked for Technical problem with the IMPORTANT: unplug stove an unsuccessful pellet screw. before supply. ridding the screw of possible obstructions ridding the chute of possible obstructions removing pellet dust accumulation from the bottom of the tank.
-
Page 28: Guarantee Conditions
Legal head office: Via Martiri delle foibe, 17 31015 Conegliano (TV) phone 0438 1883101 fax 0438 1883103 info@karmek.it e-mail GUARANTEE CONDITIONS: AT THE END OF EACH SEASON, IT IS OBLIGATORY TO HAVE THE AUTHORIZED ASSISTANCE CENTER PERFORM GENERAL CLEANING OF THE STOVE; OTHERWISE, THE GUARANTEE WILL EXPIRE.
