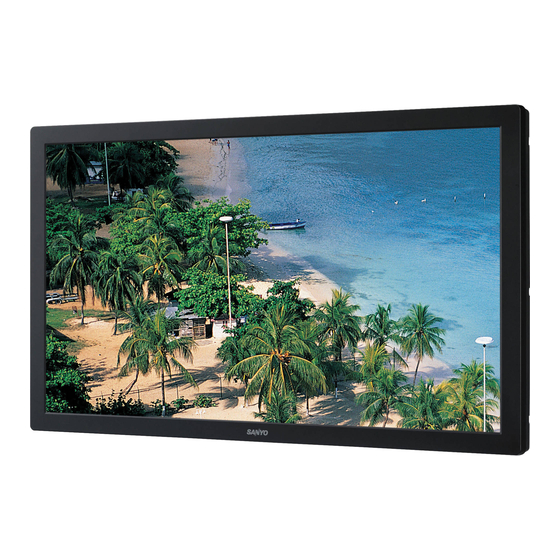

Sanyo PID-42AE1 Service Manual

LCD Monitor
Service Manual
Contents
Cabinet Parts List............................................ 2
Chassis Electrical Parts List............................ 4
NOTE:
Match the Service Ref.No. on the unit's back
cover with the Service Ref.No. in the Service
Manual.
If the Service Ref.No. does not match the unit's,
additional Service Literature is required.
Only the difference service information is given
in this manual. For detailed service
information, refer to the service manual original
SM5111220-00 issued in Dacember. 2009
for Models PID-42AE1, PID-42AS1.
FILE WITH ORIGINAL SERVICE MANUAL
(SM5111220-00)
N8FAR/N8FDR
FILE NO.
Model No. PID-42AE1
Service Ref.No. PID-42AE1-02
Product Code: 113022900
113022903
Original Version
Chassis Series:UK5-B
Give complete "SERVICE REF. NO." for
parts order or servicing.It is shown on the
rating lable at the cabinet back of the unit.
This LCD Monitor will not work properly in
foreign countries where the television
transmission system and power source
differ from the design specifications.
Refer to the specification table.
REFERENCE NO. SM5111220-01
PID-42AS1
PID-42AS1-02
