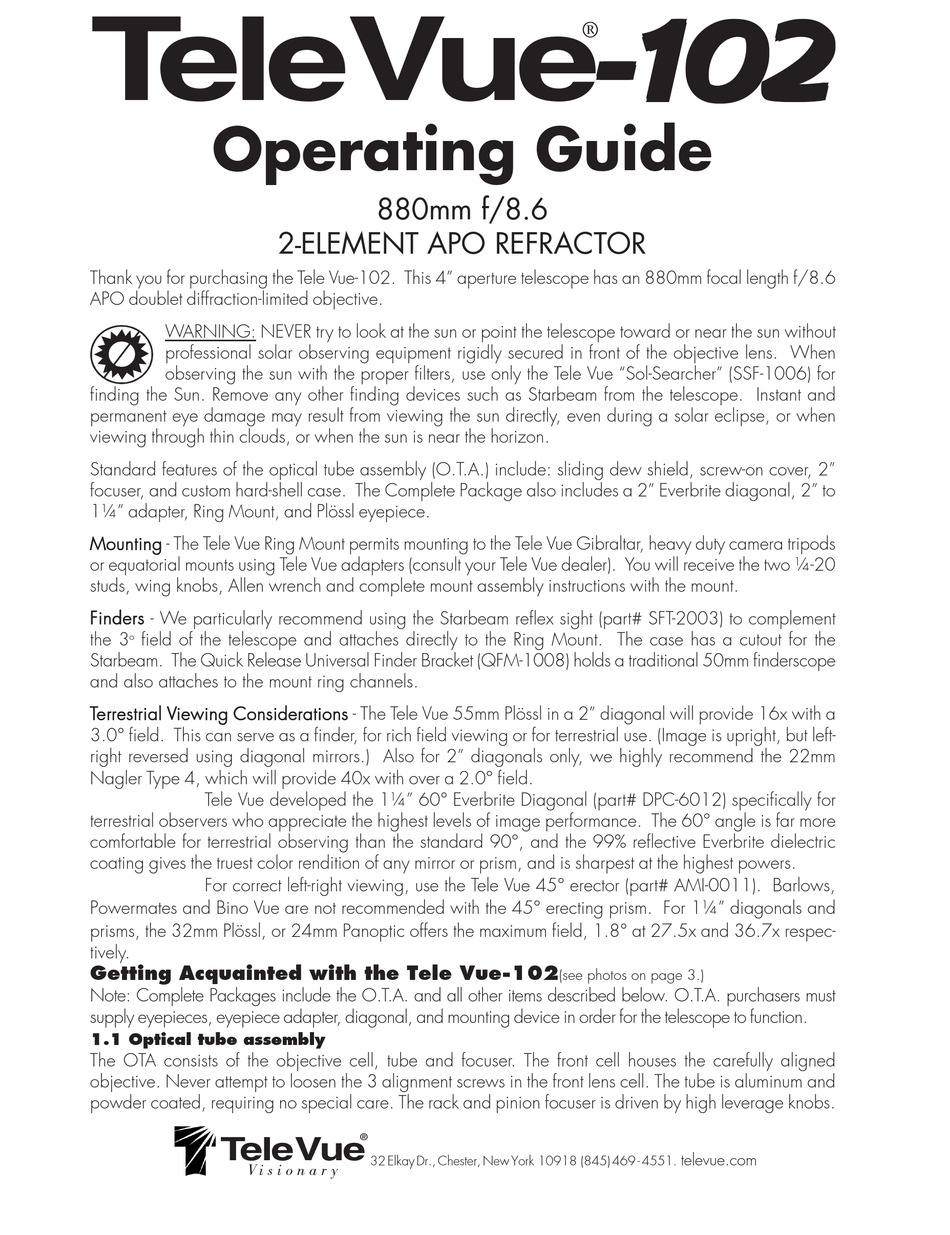

T ele Vue -102
Operating Guide
Thank you for purchasing the Tele Vue-102. This 4" aperture telescope has an 880mm focal length f/8.6
APO doublet diffraction-limited objective.
WARNING: NEVER try to look at the sun or point the telescope toward or near the sun without
professional solar observing equipment rigidly secured in front of the objective lens. When
observing the sun with the proper filters, use only the Tele Vue "Sol-Searcher" (SSF-1006) for
finding the Sun. Remove any other finding devices such as Starbeam from the telescope. Instant and
permanent eye damage may result from viewing the sun directly, even during a solar eclipse, or when
viewing through thin clouds, or when the sun is near the horizon.
Standard features of the optical tube assembly (O.T.A.) include: sliding dew shield, screw-on cover, 2"
focuser, and custom hard-shell case. The Complete Package also includes a 2" Everbrite diagonal, 2" to
1¼" adapter, Ring Mount, and Plössl eyepiece.

Mounting

Mounting - The Tele Vue Ring Mount permits mounting to the Tele Vue Gibraltar, heavy duty camera tripods Mounting
Mounting Mounting
or equatorial mounts using Tele Vue adapters (consult your Tele Vue dealer). You will receive the two ¼-20
studs, wing knobs, Allen wrench and complete mount assembly instructions with the mount.
Finders - We particularly recommend using the Starbeam reflex sight (part# SFT-2003) to complement

Finders

Finders Finders Finders
the 3 field of the telescope and attaches directly to the Ring Mount. The case has a cutout for the
o
Starbeam. The Quick Release Universal Finder Bracket (QFM-1008) holds a traditional 50mm finderscope
and also attaches to the mount ring channels.
T T T T T er er er er err r r r r estrial V estrial V estrial V estrial Viewing Considerations iewing Considerations iewing Considerations - The Tele Vue 55mm Plössl in a 2" diagonal will provide 16x with a iewing Considerations
estrial V iewing Considerations
3.0° field. This can serve as a finder, for rich field viewing or for terrestrial use. (Image is upright, but left-
right reversed using diagonal mirrors.) Also for 2" diagonals only, we highly recommend the 22mm
Nagler Type 4, which will provide 40x with over a 2.0° field.
Tele Vue developed the 1¼" 60° Everbrite Diagonal (part# DPC-6012) specifically for
terrestrial observers who appreciate the highest levels of image performance. The 60° angle is far more
comfortable for terrestrial observing than the standard 90°, and the 99% reflective Everbrite dielectric
coating gives the truest color rendition of any mirror or prism, and is sharpest at the highest powers.
For correct left-right viewing, use the Tele Vue 45° erector (part# AMI-0011). Barlows,
Powermates and Bino Vue are not recommended with the 45° erecting prism. For 1¼" diagonals and
prisms, the 32mm Plössl, or 24mm Panoptic offers the maximum field, 1.8° at 27.5x and 36.7x respec-
tively.
Getting Acquainted with the Tele Vue-102
Note: Complete Packages include the O.T.A. and all other items described below. O.T.A. purchasers must
supply eyepieces, eyepiece adapter, diagonal, and mounting device in order for the telescope to function.

1.1 Optical tube assembly

The OTA consists of the objective cell, tube and focuser. The front cell houses the carefully aligned
objective. Never attempt to loosen the 3 alignment screws in the front lens cell. The tube is aluminum and
powder coated, requiring no special care. The rack and pinion focuser is driven by high leverage knobs.
Tele Vue
V i s i o n a r y
880mm f/8.6
2-ELEMENT APO REFRACTOR
®
32 Elkay Dr., Chester, New York 10918 (845) 469 - 4551.
-102 -102
®
-102
-102
(see photos on page 3.)
