Benado effects
Controls

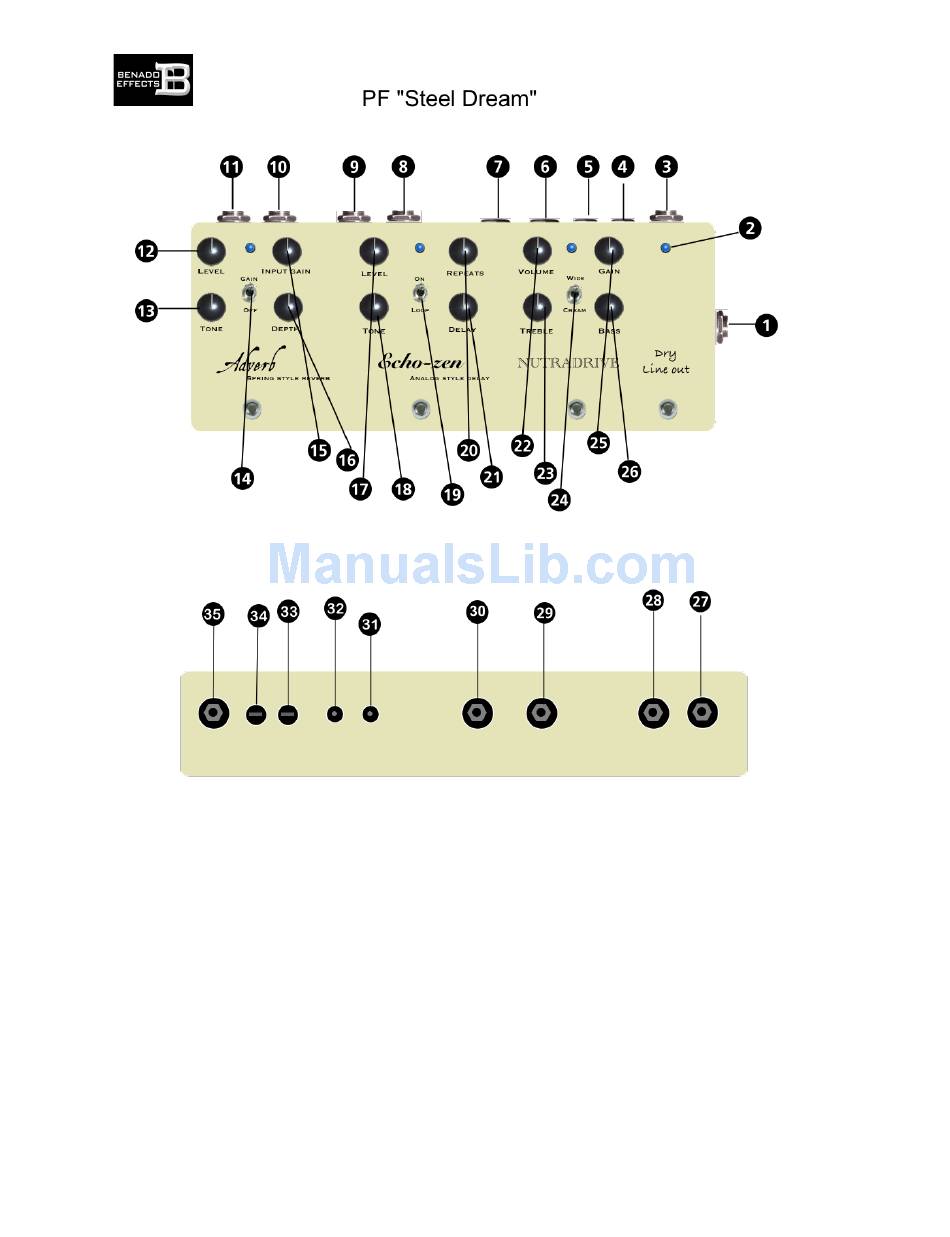

Top Panel
1. Input
2. LED
3. Dry line out jack
4. Fuse (spare)
5. Fuse
6. 9V DC jack
7. 9V DC jack
8. In/receive (loop)
9. Out/send (loop)
10. Output 1
11. Output 2
12. Level (Adverb)
.
13
Tone (Adverb)
14. Gain On/Off (Adverb)
15. Input Gain (Adverb)
16. Depth (Adverb)
17. Level (echo zen delay)
18. Tone (echo zen delay)
19. Loop switch
20. Repeats (echo zen
delay)
21. Delay (echo zen delay)
22. Volume (Nutradrive)
23. Treble (Nutradrive)
24. Toggle switch
Cream/Wide (Nutradrive)
25. Gain (Nutradrive)
26. Bass (Nutradrive)
Top panel
Controls
Back Panel
27. Output 2
28. Output 1
29. Out/Send Jack(loop)
30. In/Receive Jack (loop)
31. 9V DC Jack
32. 9V DC Jack
33. Fuse
34. Fuse (spare)
35. Dry Line out Jack
pg. 1
Advertisement
Table of Contents
Related Manuals for BENADO EFFECTS PF Steel Dream
Summary of Contents for BENADO EFFECTS PF Steel Dream
-
Page 1: Top Panel
Benado effects Top panel Back panel Controls Controls Top Panel Back Panel 1. Input Tone (Adverb) 24. Toggle switch 2. LED 27. Output 2 14. Gain On/Off (Adverb) Cream/Wide (Nutradrive) 3. Dry line out jack 28. Output 1 15. Input Gain (Adverb) 25. - Page 2 Thank you for purchasing the "PF Steel Dream" pedal board. The PF Steel Dream is a Paul Franklin signature unit. Paul been using the PB-1 pedal board since the beginning and we thought it will be great to have a more dedicated Pedal Steel version.
- Page 3 Benado effects The Nutradrive is the new overdrive that was introduced on the PB-1S. It's a very versatile and responsive OD. You can use it for a clean Boost, crunchy tone or even an over driven sound. Here are a few settings to get you started.
- Page 4 Benado effects The Adverb Reverb was first introduced as a stand alone pedal. It is an analog sound spring style reverb and more. Working closely with Paul Franklin, we took the original Adverb and tweaked it to work for steel players.
- Page 5 Benado effects Back Panel The Back panel of your unit introduce Your unit come with dual In/Out 9V DC jacks. They are parallel and either one of them can several options for a convince use and more. be used. The benefit of having a second one...
- Page 6 Benado effects Back Panel Continue..Another use for the loop option is if you want The Steel Dream just like all my other boards to add Volume pedal or other effects to come come with 2 Out puts for a bigger sound.
- Page 7 Benado effects Diagrams The conventional use: Instrument goes to the input of the Steel Dream and out put to the amp. This is when using 2 amps and the 2 outputs. pg. 7...
- Page 8 Benado effects Diagrams Continue..This is how you'll use the "Steel Dream" with the built in effect loop on your amp. NOTE: Don't forget to turn on the effect loop switch on your board. pg. 7...
- Page 9 Benado effects Diagrams Continue..This is how you'll use the "Steel Dream" with a volume pedal or other effects to include in the chain to come between the delay and the Nutradrive. NOTE: Don't forget to turn on the effect loop switch on your board.
- Page 10 Benado effects Users settings and other pg. 8...
