VHF-10&20

VHF-10M / VHF-10HL

VHF-20M / VHF-20HL / VHF-20MHL

Wireless Receiver

RV-20

RECEIVER

TRANSMITTER

AUDIO

POWER

ANTENNA

RV-10

PEAK

Wireless Diversity Receiver

MODE D'EMPLOI

OPERATIONS MANUAL

MANUAL DE INSTRUCCIONES

Need help?

Do you have a question about the VHF-10M and is the answer not in the manual?

Questions and answers

Summary of Contents for BoomToneDJ VHF-10M

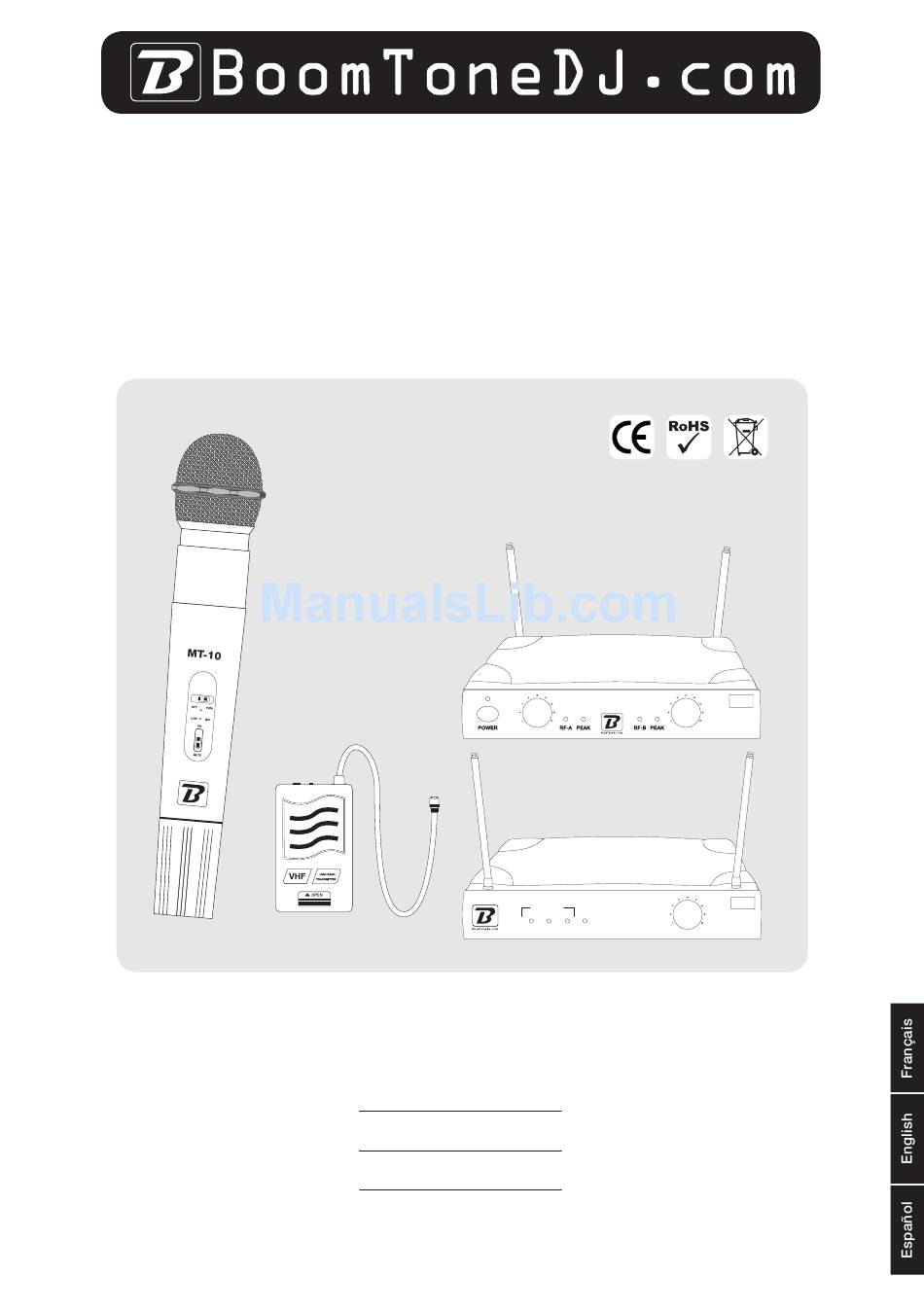

Page 1 VHF-10&20 VHF-10M / VHF-10HL VHF-20M / VHF-20HL / VHF-20MHL Wireless Receiver RV-20 RECEIVER TRANSMITTER AUDIO POWER ANTENNA RV-10 PEAK Wireless Diversity Receiver MODE D’EMPLOI OPERATIONS MANUAL MANUAL DE INSTRUCCIONES...
Page 2 RÉCEPTEURS DC INPUT Wireless Receiver 12-18v DC RV-20 BALANCED UNBALANCED BALANCED DC INPUT SQUELCH 12-18v DC RECEIVER TRANSMITTER AUDIO POWER ANTENNA RV-10 PEAK UNBALANCED LINE / MIC BALANCED Wireless Diversity Receiver 1 / Interrupteur de mise sous tension 2 / Indicateur de mise sous tension 3 / Indicateur de transmission RF ( porteuse) 4 / Indicateur de reception signal audio 5 / Réglage de volume...
Page 3 EMETTEURS 1 / Grille 2 / Commutateur ON/OFF 3 / Indicateur de mise sous tension et Indicateur de batterie faible 4 / Commutateur MUTE & ON/OFF 5 / Reglage interne de gain 6 / Capot / Compartiment pile BT-10 1 / Connecteur mini-jack 3,5mm 2 / Indicateur de tension / batterie faible 3 / Commutateur ON/OFF 4 / Compartiment pile...
Page 4 INTRODUCTION Merci d’avoir choisi BoomtoneDJ et son système micro sans fil de la série VHF-ONE. Ce manuel d’utilisation concerne les systèmes : VHF-10 (M) : Simple canal diversity version Micro-Main VHF-10 ( HL) : Simple canal diversity version serre-tête et Lavalier VHF-20 (M) : Deux canaux version Micro main VHF-20 (HL) : Deux canaux version Micro serre-tête et Lavalier.
Page 5 FONCTIONNEMENT DU SYSTÈME VHF-10&20 - VERSION MICRO MAIN 1 / Déballez tous les éléments du système. Nous vous conseillons de garder votre emballage. 2 / Branchez l’adaptateur secteur au connecteur d’alimentation à l’arrière du récepteur puis à la prise de courant. 3 / Branchez le cordon audio sur la sortie OUTPUT à...
Page 6: Caractéristiques Techniques
CARACTÉRISTIQUES TECHNIQUES Fréquences d’émission : Freq1 : 205.6 Mhz Freq2 : 220.8 Mhz Freq3 : 234.6 Mhz Freq4 : 243.4 Mhz Général Bande de fréquence :..............VHF Stabilité :..................< +/- 30ppm Rapport Signal/Bruit : ..............>90dB Distorsion harmonique totale : ...........< 0,5% Récepteur Référence : .................RV-10 &...
Page 8 RECEIVERS DC INPUT Wireless Receiver 12-18v DC RV-20 BALANCED UNBALANCED BALANCED DC INPUT SQUELCH 12-18v DC RECEIVER TRANSMITTER AUDIO POWER ANTENNA RV-10 PEAK UNBALANCED LINE / MIC BALANCED Wireless Diversity Receiver 1 / Switch ON/OFF 2 / Power supply indicator 3 / RF signal indicator 4 / Audio signal indicator / Peak 5 / Volume adjustment...
Page 9 TRANSMITTERS 1 / Grille 2 / ON/OFF switch 3 / Power supply indicator and low battery indicator 4 / MUTE switch 5 / Gain adjustment 6 / Battery cover BT-10 1 / Mini-jack 3,5mm mic connector 2 / Power supply/ low battery indicator 3 / ON/OFF switch 4 / Battery cover 5 / Mic...
Page 10 INTRODUCTION Thank you for buying our BoomtoneDJ wireless microphone system : VHF- 10&20. This operation manual is for : VHF-10 (M) : Single channel diversity handmic version VHF-10 ( HL) : Single channel diversity headset & lavalier version VHF-20 (M) : Dual channel handmic version VHF-20 (HL) : Dual channel headset &...
Page 11 USING THE VHF10&20 - HANDMIC VERSION 1 / Remove the packing material, and keep it. 2 / Plug the power supply adaptor into the power supply connector on the back side of the receiver . 3 / Connect the audio connector. Note : For the dual receiver RV20, you can use the XLR balanced audio output ( one per channel) , or the mix TRS output ( unbalanced output) For the single receiver RV-10, you can choose the audio output level ( LINE or...
Page 12: Specifications
SPECIFICATIONS System frequencies : Freq1 : 205.6 Mhz Freq2 : 220.8 Mhz Freq3 : 234.6 Mhz Freq4 : 243.4 Mhz General Carrier frequency :..............VHF Stability :..................< +/- 30ppm Dynamic range : ................>90dB Total Harmonic distortion: ............< 0,5% Receiver Reference : ..................RV-10&20 Power supply : ................DC 12v-18v Receiving sensitivity : ..............<10dBuV Audio output level for XLR balanced ouput: ........400 mV...
Page 14 RECEPTOR DC INPUT Wireless Receiver 12-18v DC RV-20 BALANCED UNBALANCED BALANCED DC INPUT SQUELCH 12-18v DC RECEIVER TRANSMITTER AUDIO POWER ANTENNA RV-10 PEAK UNBALANCED LINE / MIC BALANCED Wireless Diversity Receiver 1 / Interruptor de encendido 2 / Indicador de alimentación 3 / Indicador de transmisión RF 4 / Indicador de recepción de señal audio 5 / Control de volumen...
Page 15 EMISOR 1 / Rejilla 2 / Commutador ON/OFF 3 / Indicador encendido/baja batería 4 / Commutador MUTE y ON/OFF 5 / Control interno del gain 6 / Tapa BT-10 1 / Clavija jack 3,5mm 2 / Indicador encendido/baja batería 3 / Botón ON/OFF 4 / Compartiment pile 5 / Micro...
Page 16 Nota : Frecuencias para los sistemas dobles VHF-20 : VHF-20 (Freq.1&3) , VHF-20(Freq.2&4) BoomtoneDJ declara que los sistemas de micrófono inalámbricos de la serie VHF-10&20 estàn en conformidad con la Directiva 1999/5/EC. La Declaración de Conformidad puede ser consultada en :...
Page 17 FUNCIONAMIENTO DEL VHF-10&20 - TRANSMISOR DE MANO 1 / Quite todo el embalaje. Guarde la caja y el embalaje. 2 / Conecte el adaptador de corriente en la parte trasera del receptor. 3 / Conecte el cable en la salida OUT¨PUT en la parte trasera del receptor. Nota : El receptor doble RV20 tiene 3 salidas audio : 1 salida XLR símetrica para cada canal, y 1 Salida Jack 6,35mm para la salida «mix»...
Page 18 CARACTERISTICAS Frécuencias : Freq1 : 205.6 Mhz Freq2 : 220.8 Mhz Freq3 : 234.6 Mhz Freq4 : 243.4 Mhz General Frecuencia portadora :..............VHF Estabilización de la frecuencia : ..........< +/- 30ppm Relación señal/ruído : ..............>90dB THD : ...................< 0,5% Receptor Referencia : .................RV-10 &...
Page 19 www.boomtonedj.com...
