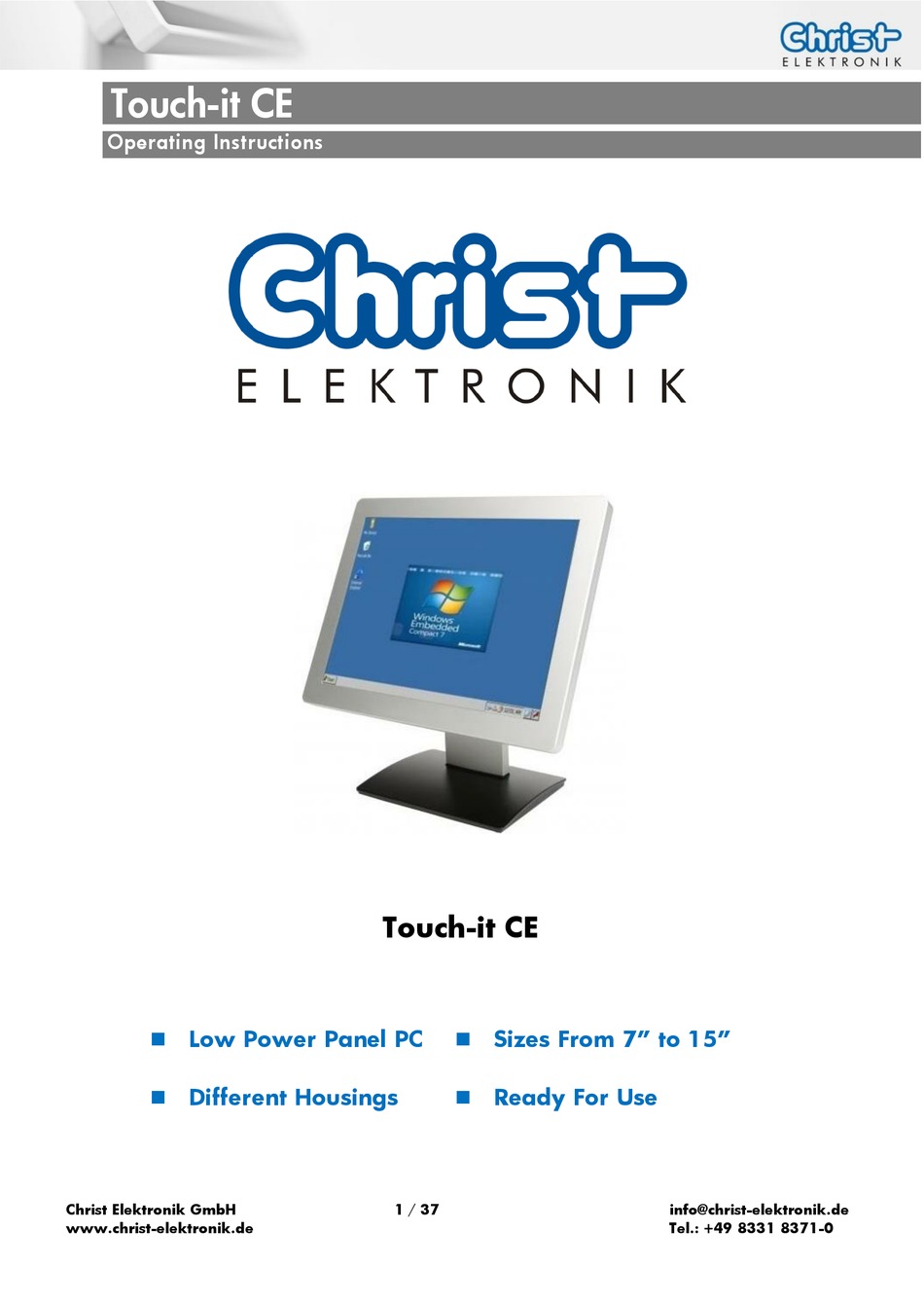

- Page 1 Touch-it CE Operating Instructions Touch-it CE Low Power Panel PC Sizes From 7” to 15” Different Housings Ready For Use Christ Elektronik GmbH 1 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
- Page 2 Christ-Elektronik GmbH. The translation into another language also requires a written permission. This documentation may be exclusively en- trusted to the owner of the installation or to the employees of Christ- Elektronik GmbH. Technical chang- Christ-Elektronik GmbH reserves the right to change specifications, execu- tions and technical data held within this document without prior notice.
-
Page 3: Table Of Contents
I/O Connector ............................32 4.12 Pointers ............................33 Used symbols ............................33 General pointers ............................33 Safety pointers ............................34 Maintenance plan ..........................35 Repairs ..............................35 Cleaning ..............................36 Christ Elektronik GmbH 3 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 4: General
Foil Touch, analog resistive Projected Capacitive Touch Sizes (Display) 7” – 15” NVIDIA® Tegra™ 2 T20 Dual Core 1.0 GHz Cortex-A9 NVIDIA® Tegra™ 3 T30 Quad Core 1.4 GHz Cortex-A9 Christ Elektronik GmbH 4 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... - Page 5 4 GB NAND FLASH MicroSD Operating System Windows Embedded Compact 7 Pro Linux (optional) POWER SUPPLY Supply Voltage 24 VDC ± 20% Power Consumption See specific datasheet Power Switch Christ Elektronik GmbH 5 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
- Page 6 Dimensions See specific datasheet Weight See specific datasheet Storage Temperature -10 ~ 70 °C Humidity 5 ~ 80% (non condensing) Certification CE, EN55022, EN55024, DIN EN ISO 9001 Christ Elektronik GmbH 6 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
-
Page 7: Commissioning
The variant Touch-it CE Open Frame is designed for customer specific mounting. Each Open Frame Panel has its own cut-out drawing. For example: For the appropriated drawing see the specific data sheet. Christ Elektronik GmbH 7 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 8: Touch-It Ce Front Panel
CAUTION For the best installation result the use of all provided fasting clamps is highly recommended. Depending on individual installation cir- cumstances a new IP rating may be considered. Christ Elektronik GmbH 8 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 9: Touch-It Ce Vesa
Operating Instructions 2.1.3 Touch-it CE VESA The variant Touch-it CE VESA is designed for VESA75 mount. Suitable mounting variants are: VESA Desk Stand Arm Mounting System VESA- SA75 Christ Elektronik GmbH 9 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 10: Interfaces Connector Side
Connector side Touch-it CE CODESYS ready These are the standard interface configurations. Others are possible. For the correct interface configuration see the specific data sheet. All interfaces are described in the chapter Interfaces. Christ Elektronik GmbH 10 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 11: Software
CE Device and a Desktop PC, but can also be used as a simple file browser. Once the Windows Mobile Device Center connection is up and running, you can open an Ex- plorer window showing the File System of your Touch-it CE: Christ Elektronik GmbH 11 / 37 info@christ-elektronik.de www.christ-elektronik.de... - Page 12 Handheld PC version. Pocket PC applications will most probably not work, because they rely on another shell and some adaptations must be done. Windows Mobile Device Center is also very useful for debugging. (see chapter Software -> Compilation / Debugging) Christ Elektronik GmbH 12 / 37 info@christ-elektronik.de www.christ-elektronik.de...
-
Page 13: General Information
But there are some exceptions: The subfolder called "FlashDisk" is a special Flash File System folder everything you write to this folder is persistent across power cycles. Christ Elektronik GmbH 13 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 14: Pc Connectivity Over Ethernet
Now if you have some shared files in your network you can easily access them by typing: "\\computer name\share name" in the address bar of an explorer window. After logging in you should be able to access the files on the network share. Christ Elektronik GmbH 14 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 15: Compilation / Debugging
(see chapter Software -> Microsoft Windows Mobile Device Center) 4. Start the Visual Studio 2008 and open a new project. Select project type: “Other Languages” -> “Visual C#” -> “Smart Device” -> “Smart Device Project” Christ Elektronik GmbH 15 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... - Page 16 Touch-it CE Operating Instructions Make sure that “.NET Framework 3.5” is selected. Accept with “OK” Select destination platform ->”SDK2wince7” Select template: “console application” Accept with “OK” Christ Elektronik GmbH 16 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
-
Page 17: Flash Memory Layout
512 KB Registry 405 MB FileSystem (FlashDisk) Total 512 MB FlashDisk The only permanent memory, that is available to the user, is the File System ( ) memory. Christ Elektronik GmbH 17 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 18: Permanent Storage
You can find these 3 storage areas in as seen below: INFORMATION! SD Card and USB HD will only appear when a SD Card or USB Stick is inserted. Christ Elektronik GmbH 18 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 19: Flash Disk
Permanent data can also be stored in any external USB Drive. External USB storage devices will appear under \USB HD in My Device. Data stored in this device is permanent and will remain after a power fail. Christ Elektronik GmbH 19 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 20: Registry
CE image. In order to save the registry settings follow the steps below: Update Tool Double-click the icon: Save Click on the (Flash Registry) button: Confirm the Windows dialog with OK. Christ Elektronik GmbH 20 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 21: Windows Ce 6.0/ Ec 7 Bootloader & Image Update
COM1. 3.6.1 Image Update via external memory (USB, SD) From Christ-Elektronik you can get the files, to make an image update. Below you find the steps for the update. Unzip all the directories (AutoRun, Autoxsc, etc.) and copy to a USB Stick or microSD card... -
Page 22: Image Update Via Terminal Connection
Operating Instructions 3.6.2 Image Update via terminal connection From Christ-Elektronik you can get the files, to make an image update. Below you find the steps for the update. Run a terminal with 115,2 Kbaud, 8data bits, none parity, 1 stop bit... -
Page 23: Running Applications At Startup (Autorun)
So if you want to copy some files to your \Desktop folder at boot time you must copy them to: \FlashDisk\AutoCopy\Windows\Desktop\ The AutoCopy function works also on removable media such as USB Sticks and SD Cards. Christ Elektronik GmbH 23 / 37 info@christ-elektronik.de www.christ-elektronik.de... -
Page 24: Touch-It Ce Remote Control
If problems occur be sure that Telnet is activated on your Desktop PC. 5) Save the registry over Telnet type “update /fu” 6) Start the remote display tool on your Desktop PC ->CeRHost.exe (Download the program from www.christ-elektronik.de) Christ Elektronik GmbH 24 / 37 info@christ-elektronik.de www.christ-elektronik.de... - Page 25 You´ve got access to the shared folders of the Touch-it CE Device a) Type in your Desktop PC explorer \\TouchIt or \\ IP address b) Type in User and password c) i.e. open the Flash Disk folder Christ Elektronik GmbH 25 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0...
-
Page 26: Interfaces
V+ (only PoE version) PE / V+ V+ (only PoE version) ETH_RX_N Receive Data - PE / V- V- (only PoE version) PE / V- V- (only PoE version) Christ Elektronik GmbH 26 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 27: Can Connector
CAN Termination Off „right“ CAN Termination On 4.4 COM1 (RS-232) Type RJ45 Tab-up Function Description Ground Ground n.c. Transmit Data Receive Data n.c. Request to Send Clear to Send Christ Elektronik GmbH 27 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 28: Com1 (Rs-232, Touch-It Ce Codesys)
Ground n.c. Request to Send Clear to Send n.c. 4.6 COM2 (RS-485, Touch-it CE Codesys) Type MC 1,5/ 3-G-3,81 Function Description Ground B(-) RS-485 Data- A(+) RS-485 Data+ Christ Elektronik GmbH 28 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 29: Com2 (Rs-232 Or Rs-485)
The switch above the COM2 Connector enables the termination resistor (120Ω) between the A(+) and B(-) signals of the RS-485. Position SW2 Description „left“ RS-485 Termination Off „right“ RS-485 Termination On Christ Elektronik GmbH 29 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 30: Usb Type A
USB Data+ USB Data- USB GND INFORMATION! The USB Type A (Port2) and the USB Mini-B are shared ports. It’s only pos- sible to use one of them simultaneously. Christ Elektronik GmbH 30 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 31: Connector
The VGA interface is equal with the standard VGA pin assignment. 4.11 MircoSD Type DM3AT-SF-PEJ Function Description SD/MMC Data 2 D3/CD SD/MMC Data 3 SD/MMC Command +3.3V SD/MMC Clock SD/MMC Data 0 SD/MMC Data 1 Christ Elektronik GmbH 31 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 32: I/O Connector
Function GPIO Tegra 2 IN_1 GPIO_C7 IN_2 GPIO_B6 GPIO_BB2 IN_3 IN_4 GPIO_B7 GPIO_T2 OUT_1 OUT_2 GPIO_T1 OUT_3 GPIO_T3 GPIO_L6 OUT_4 ATTENTION! Load current per output max. 0.5 A! Christ Elektronik GmbH 32 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 33: Pointers
INFORMATION! Displays may contain defect pixels from the manufacturing process. These lacks aren´t reasons for a warranty. Christ Elektronik GmbH 33 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... -
Page 34: Safety Pointers
DANGER! In the case of damage of the device, shut it down and disconnect it imme- diately from the supply voltage. Disconnect every connection line and send it back to Christ-Elektronik GmbH. DANGER! Avoid any penetration of liquid or dust. -
Page 35: Maintenance Plan
In the case of defect please inform us immediately. 5.4 Maintenance plan INFORMATION! Only the manufacturer (Christ-Elektronik GmbH) is allowed to replace the internal lithium battery. The calibration of the analog resistive touch may be required from time to time. -
Page 36: Cleaning
Do not clean the touch-sensitive surface of the monitor with detergents con- taining solvent or acid. INFORMATION! Use a humid and soft cloth with gentle soapsuds to clean. Christ Elektronik GmbH 36 / 37 info@christ-elektronik.de www.christ-elektronik.de Tel.: +49 8331 8371-0... - Page 37 Technical data are subject to modi- Christ – Elektronik Touch-it lectual property rights. Changes to fication and delivery subject to solutions, please contact your Christ technical data reserved. Delivery availability. Any liability that the – Elektronik GmbH sales representa- subject to availability data and illustrations are complete, tive or visit our website.
