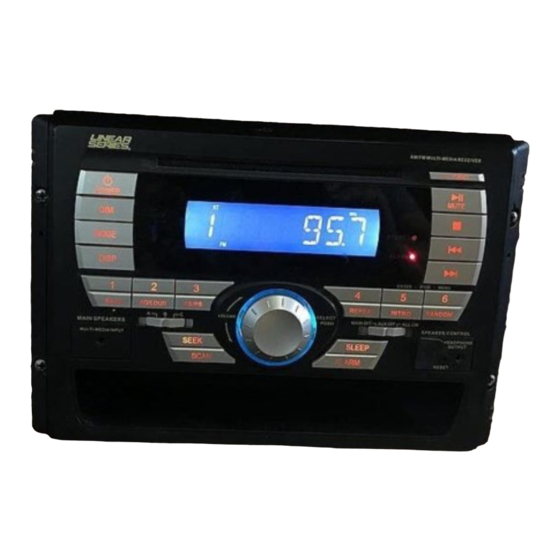

Linear Series LS5050 Operation And Installation Manual

Am / fm stereo multi-media receiver
Hide thumbs
Table of Contents

Advertisement

Quick Links

LS5050-UM Rev. B
1
32
31
30
U.S. PATENT NO.: D561754
29
28
4/16/10
4:14 PM
2
Page 1
Operation
and Installation
3
4
5 6
Multi-Media Receiver
Manual
LS5050
AM / FM Stereo
7
8
9
10
11
13
15
12
14

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LS5050 and is the answer not in the manual?

Questions and answers

Related Manuals for Linear Series LS5050

Summary of Contents for Linear Series LS5050

  • Page 1 LS5050-UM Rev. B 4/16/10 4:14 PM Page 1 Operation and Installation Manual LS5050 AM / FM Stereo Multi-Media Receiver U.S. PATENT NO.: D561754...

  • Page 2: Table Of Contents

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 2 Introduction Please take the time to read all of the information in this manual. Familiarity with operation and installation procedures will help you obtain the best possible performance from your new AM/FM Stereo Multi-Media Receiver.

  • Page 3: Button Locations And Functions

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 3 Button Locations and Functions 1. Power On/Off: Press to turn the unit on or off. 2. Infrared Eye: Receives the signals from the remote control. 3. Disc Slot: To play a disc, insert the disc into slot with label facing up.
  • Page 4 27. Audio/Video Input Jack: Press the MODE button until “AV IN F” appears in the display then plug in a device via the 3.5mm audio/video input plug. Note: The LS5050 does not control the device, it just allows the audio/video to be played through the system.

  • Page 5: Remote Control Button Locations And Functions

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 5 Remote Control Button Locations and Functions 9. LOC/RDM Button: Radio Mode: Press to select Local or Distant reception. MODE Disc Mode: Press to play all the tracks on the music disc in random order. Press again to...

  • Page 6: General Operation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 6 General Operations Power On/Off: DISC AV IN R Press the POWER button to turn the unit On/Off. Selecting a Play Source: AV IN F IPOD DISC AV IN R DISC AV IN R...

  • Page 7: Sound Controls

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 7 Radio Station Recall Buttons Sound Controls Volume: Increase the volume by rotating the Volume knob clockwise. Decrease the volume by rotating the Volume knob counterclockwise. Bass, Treble and Balance Control Select the desired sound mode by pressing the VOLUME/SELECT knob. The modes will be displayed in the following order: Bass, Treble, Balance and Volume.

  • Page 8: Speaker Selection Switches

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 8 Sound Controls (Continued) Equalizer (EQ): Press the EQ button to choose between the pre- set equalizer settings: Flat, Classic, Rock, Popular and Jazz as indicated in the display area. Loud: To boost high and low tones at low volume lev- els, press and hold the EQ button until “LOUD...

  • Page 9: Setting The Clock

    Speakers Speakers Speakers LS5050-UM Rev. B 4/16/10 4:14 PM Page 9 Set A Sets B Set C Speaker Selection Switches (Continued) Auxiliary Speakers: Slide the Speaker Control Switch to turn: • Main speaker off and auxiliary speakers on (MAIN OFF), •...

  • Page 10: Alarm Operation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 10 Alarm Operation Setting the Alarm Timer: 1. Press and hold the Volume knob until “PCLK OFF” appears in the display. Press the Volume knob 3 more times and “ALA OFF” appears in the display.

  • Page 11: Radio Operations

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 11 Radio Operations Power On/Off: Press the POWER button to turn the unit 0n. Selecting the Play Source: Press the MODE button until “RADIO” appears in the display. After a brief moment either AM or FM will appear in the display.
  • Page 12 Lower LS5050-UM Rev. B 4/16/10 4:14 PM Page 12 Higher Higher Radio Operation (Continued) Memorizing Radio Stations: Radio Station Recall Buttons 1. Press the BAND button to select either the Radio Station Recall Buttons 1 FM, 2 FM, 3 FM, 1 AM or 2 AM radio band.

  • Page 13: Disc Warnings

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 13 Disc Warnings Handling and Cleaning: 12cm disc • Dirt, dust, scratches and warping disc will cause (Single-sided disc only) non operation. Label side up • Do not place stickers on disc or scratch disc.

  • Page 14: Music Disc Operation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 14 AV IN F IPOD Music Disc Operation General Operations: Label Side Up 1. Press the POWER button to turn the unit 2. Gently insert the disc into the slot with the label side up. The unit will automati- cally load the disc.

  • Page 15: Music Disc Operation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 15 PAUSE PAUSE PAUSE PAUSE Music Disc Operation (Continued) PAUSE Ejecting the Disc: Press the EJECT button to eject a disc. PAUSE PAUSE PAUSE PAUSE PAUSE Repeating a Music Track or Entire Disc: Select the desired track to repeat, then press the REPEAT button once and “REPEAT...

  • Page 16: Mp3 Disc Operation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 16 AV IN F IPOD MP3 Disc Operation General Operations: Label Side Up 1. Press the POWER button to turn the unit on. 2. Gently insert the disc into the slot with the label side up.

  • Page 17: Movie Disc Operation

    Lower LS5050-UM Rev. B 4/16/10 4:14 PM Page 17 PLAY AV IN F IPOD Movie Disc Operation Higher REPEAT PLAY General Operations: Label Side Up 1. Press the POWER button to turn the unit On. 2. Gently insert the disc into the slot with the label side up.
  • Page 18 LS5050-UM Rev. B 4/16/10 4:14 PM Page 18 GOTO Angle Slow GOTO ZOOM PROG MODE SEEK - SEEK + GOTO Fast Fast Title Sub-T Rewind Forward VOL - MENU Audio Movie Disc Operation (Continued) Setup ENTER ENTER MODE MODE Fast Forward / Fast Reverse Disc Play:...

  • Page 19: Setup Menu

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 19 Angle Slow GOTO ZOOM PROG SEEK - SEEK + VOL - MENU Audio Movie Disc Operation (Continued) Subtitle Language Menu: Press the SUB.TT button during playback. Each MODE time the button is pressed, the subtitle language GOTO changes in sequential order.
  • Page 20 LS5050-UM Rev. B 4/16/10 4:14 PM Page 20 Setup Menu (Continued) Audio Setup Page: Speaker Setup Page: Use the navigation buttons to scroll between the Use the navigation buttons to scroll between the menu items. Make a selection by pressing the menu items.

  • Page 21: Audio Input

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 21 Audio/Video Input Selecting the Audio/Video Play Source: To select a Audio/Video play source, press the MODE button until “AV IN F” appears in the dis- play. Refer to the audio/video device’s owners manual for proper operation.

  • Page 22: Ipod Operations

    W-BAND HOLD DISPLAY W-BAND DISPLAY Note: The IPOD controls will become inoperable, AS/PS AS/PS MODE MODE and the LS5050 now controls the IPOD. S-MOD/ MUTE SCH/ MUTE IPOD MENU AUX IN AUX IN PUSH ENT/ PUSH SEL/ PUSH SEL/...
  • Page 23 LS5050-UM Rev. B 4/16/10 4:14 PM Page 23 IPOD Operation (Continued) 3. Press the Volume knob to select the SONGS menu. 4. Rotate the Volume knob to select the desired song from the menu. MODE MODE 5. Press the Volume knob to start playing the...

  • Page 24: Ipod Operations

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 24 IPOD Operation (Continued) Display Selection: Press the AS/PS button to display the following track information: Elapse Time, Title, Artist, Album and Track. Manually Selecting the IPOD Source: If a different source is playing and you wish to listen to the IPOD, press the MODE button until “IPOD”...

  • Page 25: Reset Button

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 25 Reset Button The LCD display may fail to function normally due to the vehicle’s battery condition, and could require resetting the radio microprocessor if: • The vehicle has been “jump started” from a dead battery condition.

  • Page 26: Installation

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 26 Installation ” Wall Panel ” Chassis Opening Structural Stud Caution: Do not install radio without rear cover installed: No user-serviceable parts inside. Rear cover provides protection against potential fire hazard. End Caps ”...

  • Page 27: Speaker Connections

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 27 Speaker Connections Auxiliary Auxiliary Speaker Left Speaker Right Purple/Black Wire (Common -) White Wire Purple Wire Speaker A Speaker A Right Left Brown/Black Wire Gray/Black Wire Brown Wire Gray Wire 9-Pin Connector...

  • Page 28: Auxiliary Connections

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 28 Auxiliary Connections This unit for use only with a 12 Volt DC power source with a negative ground. Speake Left Red Wire (+) to 12 Volt DC Power 9-Pin Connector Black Wire Ground...

  • Page 29: Input Connections

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 29 Input Connections Model: DP36AXT In-Wall Antenna (Optional) Plug Either Type of Antenna into the Female Antenna Receptacle External Automotive IPOD Type Antenna (Optional) (Optional) iPod Cable (Optional) Game Console (Optional) RCA Connectors...

  • Page 30: Safety Instructions

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 30 Safety Instructions • Read Instructions: All the safety and operating instructions should be read before the appliance is oper- ated. • Retain Instructions: The safety and operating instructions should be retained for future reference.

  • Page 31: Warranty

    LS5050-UM Rev. B 4/16/10 4:14 PM Page 31 Warranty ONE (1) YEAR LIMITED WARRANTY Magnadyne Corporation or its authorized agents will within one year from the date of sale to you, repair, replace or refund the retail sales price of said product or any part thereof, at...
  • Page 32 LS5050-UM Rev. B 4/16/10 4:14 PM Page 32 © Copyright 2010 LS5050-UM Magnadyne Corporation Rev. C 4-16-10...
