VENT-FREE OR VENTED GAS LOGS
CR/DX 18", 24", 30" & CR 24" MOUNTAINEER ,
WARNING: If the following information in this manual is not followed exactly, a fire or explosion
may result causing property damage, personal injury, or loss of life.
-
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN
THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
-
WHAT TO DO IF YOU SMELL GAS
* Do not try to light any appliance.
* Do not touch any electrical switch; do not use any phone in your building.
* Immediately call your gas supplier from a neighbor's phone.
Follow the gas supplier's instructions.
* If you cannot reach the gas supplier, call the fire department.
-Installation and service must be performed by a qualified installer, service agency, or the gas supplier.
-This appliance is intended for supplemental heating.
This is an unvented and vented gas-fired heater. It uses air (oxygen) from the room in which it is installed.
Provisions for adequate Combustion and Ventilation Air must be provided. Refer to Section V, page 34.
This appliance may be installed in an aftermarket, permanently located, manufactured (mobile) home, where
not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This appliance is not
convertible for use with other gases.
WARNING:
This appliance is equipped for (natural or propane) gas. Field conversion is not permitted.
INSTALLER: Leave this manual with the appliance.
CONSUMER: Retain this manual for future reference
New Buck Corporation
P.O. Box 69
200 Ethan Allen Drive
Spruce Pine, NC 28777
www.buckstove.com
MODEL CR/DX MANUAL

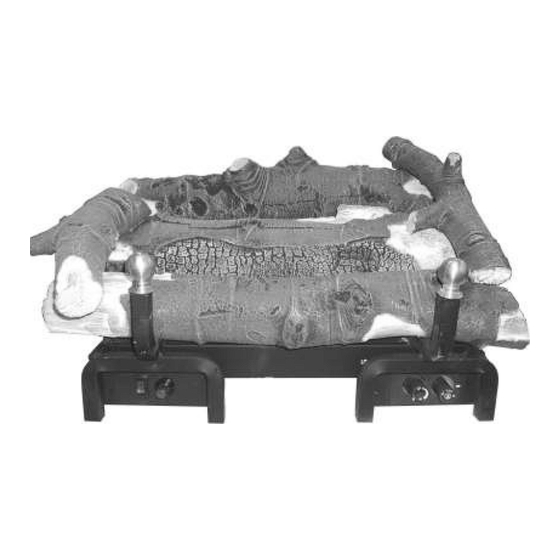

CR24 ASPEN LOG SETS
FOR NATURAL OR LIQUID PETROLEUM (L.P.)
WITH OPTIONAL HEAT SHIELD MODEL (19HS)
.
Revised January 2013
